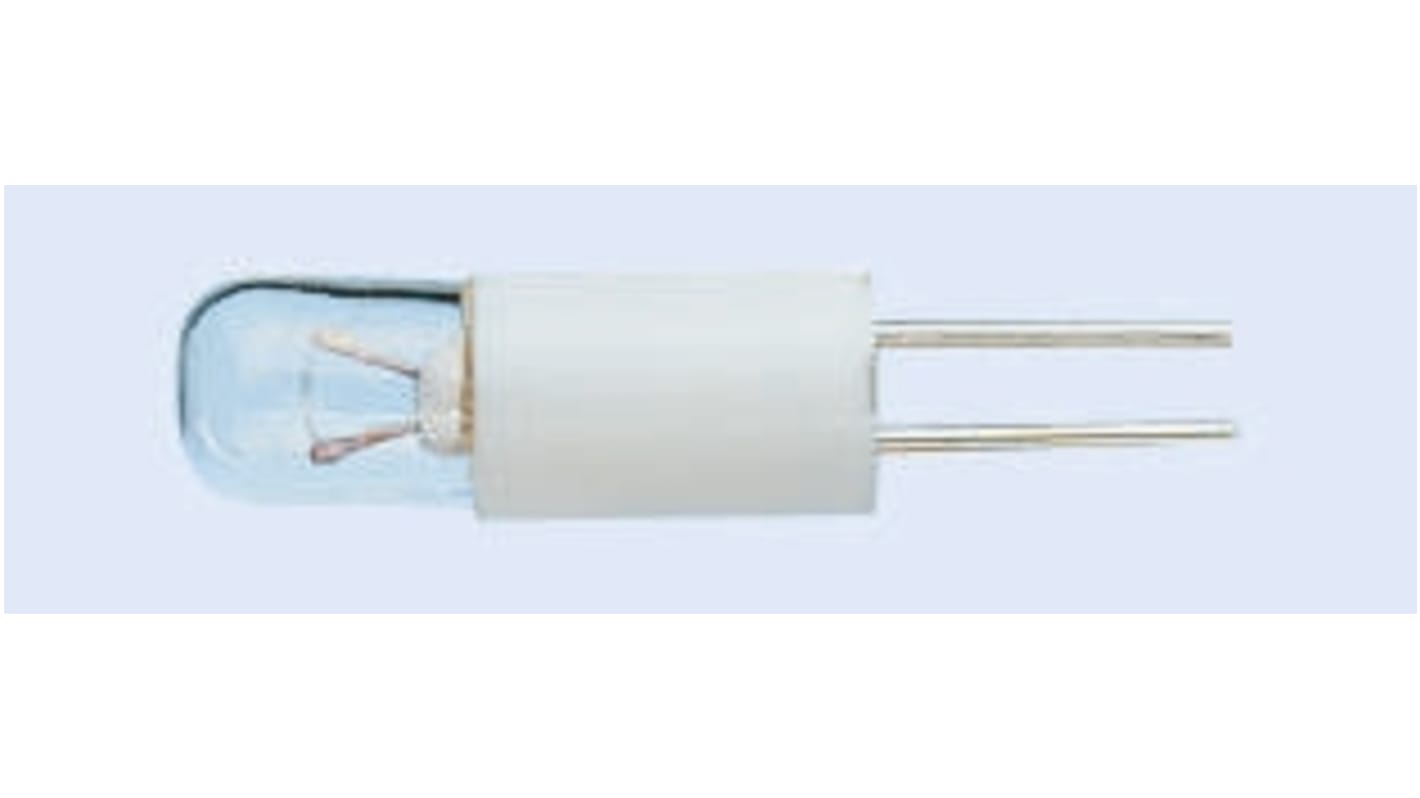

Lead Pins Filament Indicator Lamp, Clear, 12 V, 30 mA, 3000h
- RS Stock No.:
- 586-380
- Brand:
- NEUTRAL
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 10)
£1.143
(exc. VAT)
£1.372
(inc. VAT)
- RS Stock No.:
- 586-380
- Brand:
- NEUTRAL
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | NEUTRAL | |
Voltage Rating | 12 V | |
Lamp Base | Lead Pins | |
Current Rating | 30 mA | |
Diameter | 4.26mm | |
Lamp Size | T1 1/4 | |
Lens Colour | Clear | |
Luminosity | 0.7 lm | |
Life Hours | 3000h | |
Select all | ||
---|---|---|
Brand NEUTRAL | ||
Voltage Rating 12 V | ||
Lamp Base Lead Pins | ||
Current Rating 30 mA | ||
Diameter 4.26mm | ||
Lamp Size T1 1/4 | ||
Lens Colour Clear | ||
Luminosity 0.7 lm | ||
Life Hours 3000h | ||
T-1 (4mm) Bi-Pin
A range of T-1 1/4 (4mm) Bi-pin filament indicators, specifically intended for illumination in confined spaces, e.g. meters, switches, etc.
Body colour coding: White (6V), Yellow (12V), Green (24V), 14V and 28V colour coding not applicable
Wire-Ended & Bi-Pin
Filament lamps will perform to specification and give optimum life when:,a) They are powered at the rated voltage from a stabilised 50Hz ac supply,b) Ambient temperature is in the range 20 to 25°C,c) No mechanical vibration is present.,Deviations from these criteria can have a significant effect on lamp life, particularly with low current filaments (<80mA). Operation from a dc supply at rated voltage can reduce specified life by up to 50%. The effect of variation from the rated operating voltage should be noted: 5% above will reduce lamp life by up to 50%. 5% below will significantly increase lamp life. Current consumption can vary by up to ±10% on stated values at rated supply voltage. Care therefore should be exercised when running a number of lamps in series. In such applications it is recommended that the rated voltage be reduced by 10% to prevent premature failure of individual lamps.
