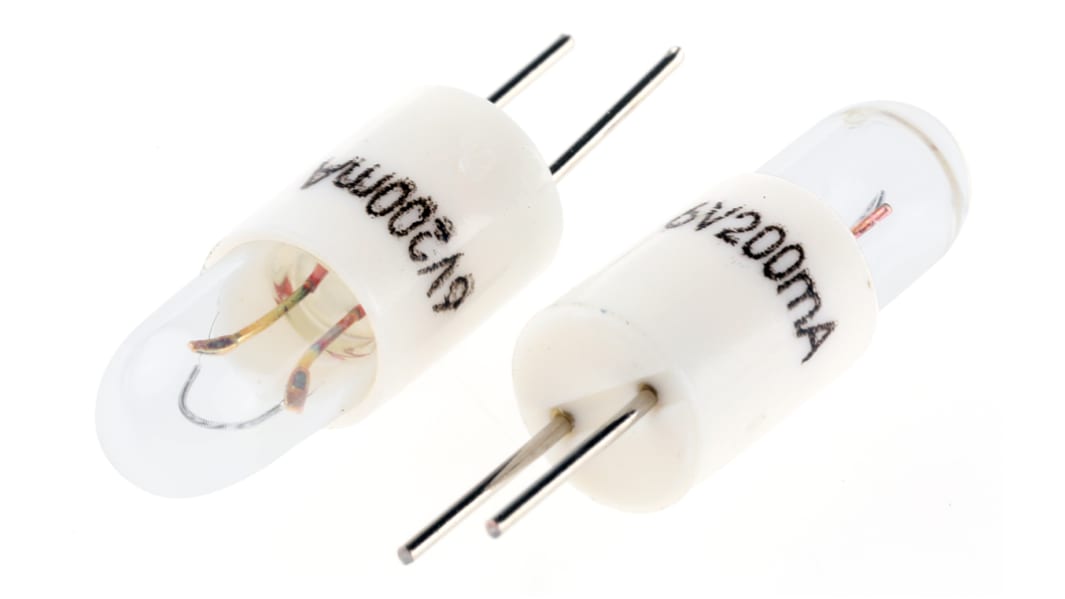

RS PRO Bi-Pin Indicator Light, Clear, 6 V, 200 mA, 1000h

Bulk discount available

Subtotal (1 pack of 10 units)*

£9.76

(exc. VAT)

£11.71

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 970 unit(s) ready to ship
  • Plus 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 - 90£0.976£9.76
100 - 490£0.961£9.61
500 - 2490£0.917£9.17
2500 - 4990£0.875£8.75
5000 +£0.839£8.39

*price indicative

RS Stock No.:
577-500
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Voltage Rating

6 V

Lamp Base

Bi-Pin

Current Rating

200 mA

Diameter

5.87mm

Lamp Size

T1 3/4

Lens Colour

Clear

Luminosity

7.5 lm

Life Hours

1000h

COO (Country of Origin):
KR

T-1 (6mm) Bi-Pin


A range of T-1 3/4 (6mm) Bi-pin filament indicators, specifically intended for illumination in confined spaces, e.g. meters, switches, etc.


Wire-Ended & Bi-Pin


Filament lamps will perform to specification and give optimum life when:,a) They are powered at the rated voltage from a stabilised 50Hz ac supply,b) Ambient temperature is in the range 20 to 25°C,c) No mechanical vibration is present.,Deviations from these criteria can have a significant effect on lamp life, particularly with low current filaments (<80mA). Operation from a dc supply at rated voltage can reduce specified life by up to 50%. The effect of variation from the rated operating voltage should be noted: 5% above will reduce lamp life by up to 50%. 5% below will significantly increase lamp life. Current consumption can vary by up to ±10% on stated values at rated supply voltage. Care therefore should be exercised when running a number of lamps in series. In such applications it is recommended that the rated voltage be reduced by 10% to prevent premature failure of individual lamps.
