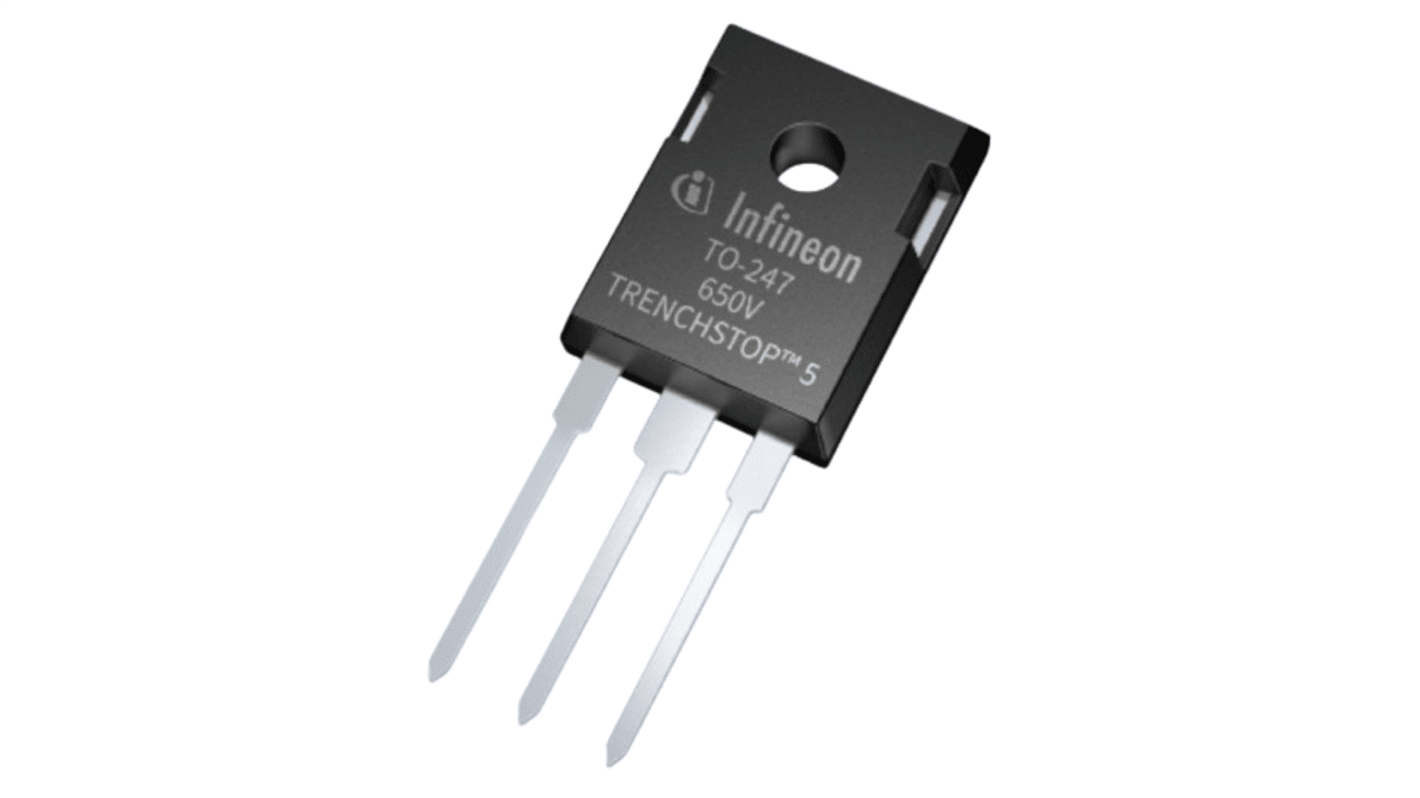

Infineon IKW20N60H3FKSA1 Single IGBT, 40 A 600 V, 3-Pin TO-247, Through Hole

RS Stock No.:: 892-2197
Mfr. Part No.:: IKW20N60H3FKSA1
Brand:: Infineon

Infineon IKW20N60H3FKSA1 Single IGBT, 40 A 600 V, 3-Pin TO-247, Through Hole

Bulk discount available

Subtotal (1 pack of 4 units)*

£8.88

(exc. VAT)

£10.64

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

216 unit(s) ready to ship
Plus 999,999,780 unit(s) shipping from 20 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
4 - 36	£2.22	£8.88
40 - 76	£1.798	£7.192
80 - 196	£1.713	£6.852
200 - 596	£1.56	£6.24
600 +	£1.363	£5.452

*price indicative

RS Stock No.:: 892-2197
Mfr. Part No.:: IKW20N60H3FKSA1
Brand:: Infineon

Infineon IGBT, 40A Maximum Continuous Collector Current, 600V Maximum Collector Emitter Voltage - IKW20N60H3FKSA1

This IGBT module is designed for high-speed switching applications within the power electronics sector. The device conforms to TO-247 IGBT package specifications and measures 16.13 x 5.21 x 21.1 mm. With a maximum collector-emitter voltage of 600V and a continuous collector current of 40A, it proves effective for various demanding applications in the electrical and mechanical sectors.

Features & Benefits

• Utilises TRENCHSTOP technology, delivering low VCEsat
• Achieves maximum junction temperature of 175°C for robust performance
• Features a soft, fast recovery anti-parallel diode enhancing reliability
• Ensures a switching speed of 100kHz for efficient operation

Applications

• Utilised in uninterruptible power supplies for reliable operation
• Effective in welding converters for high-performance welding
• Suitable for converters with high switching frequency requirements

What are the thermal resistance characteristics of this module?

The thermal resistance from junction to case is 0.88 K/W, while the diode thermal resistance from junction to case is 1.89 K/W, ensuring effective heat dissipation in demanding environments.

How does the IGBT handle short circuits and power dissipation?

It supports a pulsed collector current of up to 80A and a power dissipation capacity of 170W, allowing for robust performance under short circuit conditions. The device can handle up to 1000 short circuits with a safe operating time of 5μs.

What is the significance of gate capacitance in this IGBT?

The gate capacitance of 1100pF contributes to the efficient control of the gate-emitter voltage, leading to optimised switching characteristics and reducing energy losses during operation.

IGBT Discretes & Modules, Infineon

The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Maximum Continuous Collector Current	40 A
	Maximum Collector Emitter Voltage	600 V
	Maximum Gate Emitter Voltage	±20V
	Maximum Power Dissipation	170 W
	Number of Transistors	1
	Configuration	Single
	Package Type	TO-247
	Mounting Type	Through Hole
	Channel Type	N
	Pin Count	3
	Switching Speed	100kHz
	Transistor Configuration	Single
	Dimensions	16.13 x 5.21 x 21.1mm
	Maximum Operating Temperature	+175 °C
	Energy Rating	1.07mJ
	Gate Capacitance	1100pF
	Minimum Operating Temperature	-40 °C

	Select all
	Brand Infineon
	Maximum Continuous Collector Current 40 A
	Maximum Collector Emitter Voltage 600 V
	Maximum Gate Emitter Voltage ±20V
	Maximum Power Dissipation 170 W
	Number of Transistors 1
	Configuration Single
	Package Type TO-247
	Mounting Type Through Hole
	Channel Type N
	Pin Count 3
	Switching Speed 100kHz
	Transistor Configuration Single
	Dimensions 16.13 x 5.21 x 21.1mm
	Maximum Operating Temperature +175 °C
	Energy Rating 1.07mJ
	Gate Capacitance 1100pF
	Minimum Operating Temperature -40 °C
