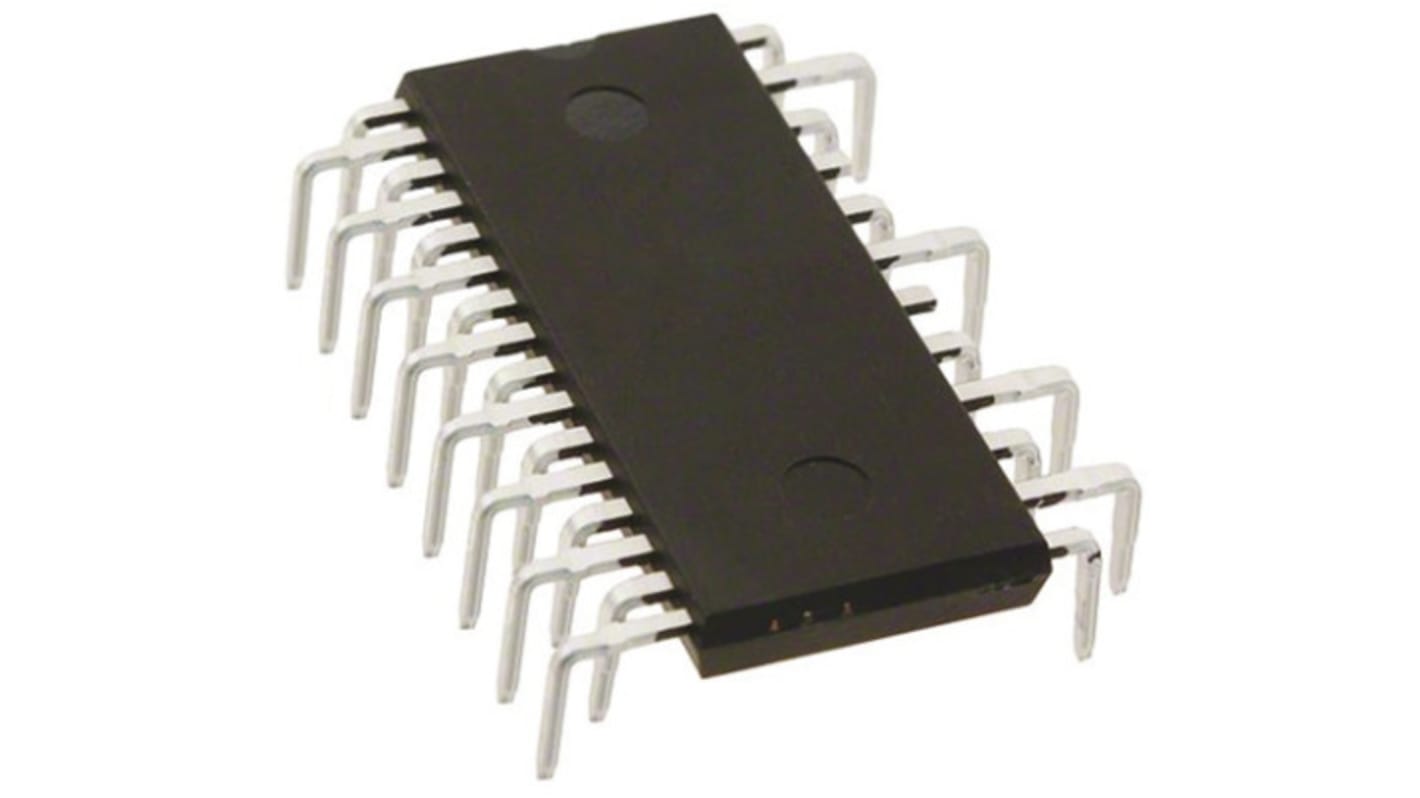

STMicroelectronics STGIPN3H60A, NDIP, N-Channel 3 Phase Smart Power Module, 3 A max, 600 V, Through Hole
- RS Stock No.:
- 877-2889
- Mfr. Part No.:
- STGIPN3H60A
- Brand:
- STMicroelectronics
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 877-2889
- Mfr. Part No.:
- STGIPN3H60A
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Maximum Continuous Collector Current | 3 A | |
| Maximum Collector Emitter Voltage | 600 V | |
| Maximum Power Dissipation | 8 W | |
| Package Type | NDIP | |
| Configuration | 3 Phase | |
| Mounting Type | Through Hole | |
| Channel Type | N | |
| Pin Count | 26 | |
| Dimensions | 29.25 x 12.55 x 4.4mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +150 °C | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Maximum Continuous Collector Current 3 A | ||
Maximum Collector Emitter Voltage 600 V | ||
Maximum Power Dissipation 8 W | ||
Package Type NDIP | ||
Configuration 3 Phase | ||
Mounting Type Through Hole | ||
Channel Type N | ||
Pin Count 26 | ||
Dimensions 29.25 x 12.55 x 4.4mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +150 °C | ||
- COO (Country of Origin):
- CN
