Semikron Danfoss SKM150GAR12T4, Type N-Channel Fast IGBT4 Module, 232 A 1200 V, 5-Pin SEMITRANS2, Surface

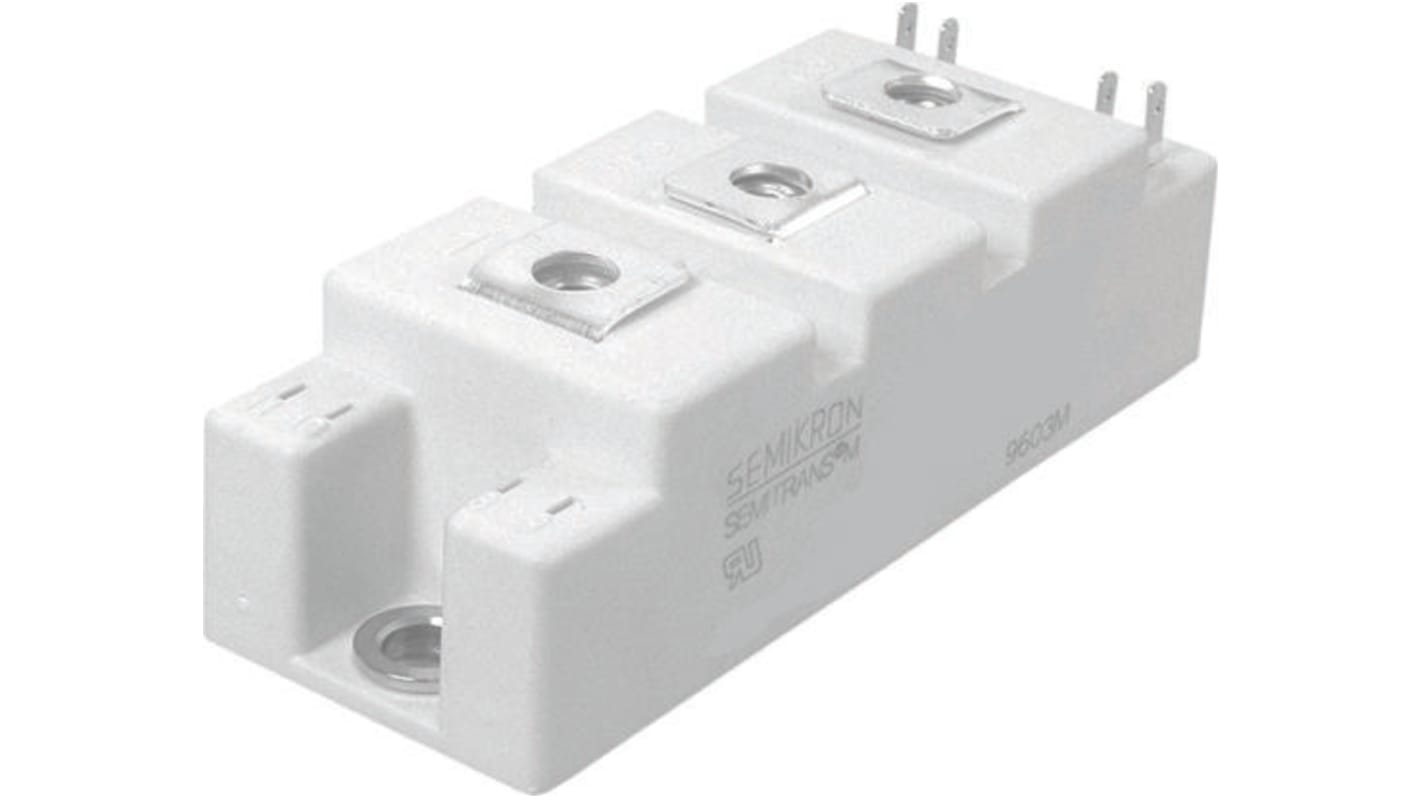

Image representative of range

View all IGBTs
Bulk discount available

Subtotal (1 unit)*

£93.38

(exc. VAT)

£112.06

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 48 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£93.38
10 - 19£69.38
20 +£65.93

*price indicative

RS Stock No.:
687-4955
Mfr. Part No.:
SKM150GAR12T4
Brand:
Semikron Danfoss
Find similar products by selecting one or more attributes.
Select all

Brand

Semikron Danfoss

Product Type

Fast IGBT4 Module

Maximum Continuous Collector Current Ic

232A

Maximum Collector Emitter Voltage Vceo

1200V

Package Type

SEMITRANS2

Mount Type

Surface

Channel Type

Type N

Pin Count

5

Switching Speed

180ns

Maximum Collector Emitter Saturation Voltage VceSAT

2.4V

Maximum Gate Emitter Voltage VGEO

20 V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

175°C

Width

34 mm

Height

30.1mm

Length

94mm

Standards/Approvals

IEC 60747-1

Series

GAR

Automotive Standard

No

Single IGBT Modules


SEMIKRON offers IGBT (Insulated-Gate Bipolar Transistor) modules in SEMITRANS, SEMiX and SEMITOP packages in different topologies, current and voltage ratings.

IGBT Modules, Semikron


The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.
