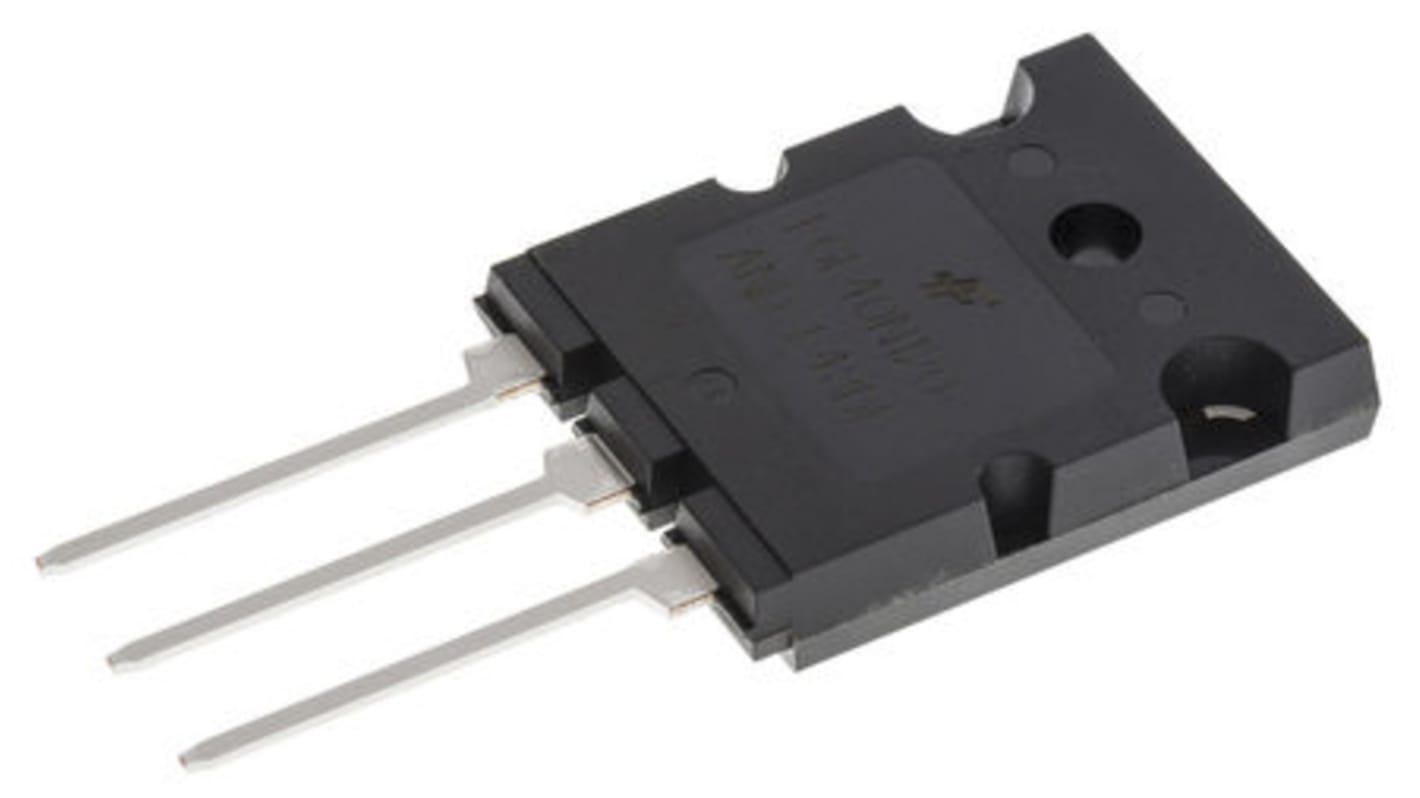

onsemi FGL40N120ANDTU IGBT, 64 A 1200 V, 3-Pin TO-264, Through Hole
- RS Stock No.:
- 671-5408
- Mfr. Part No.:
- FGL40N120ANDTU
- Brand:
- onsemi
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each
£9.36
(exc. VAT)
£11.23
(inc. VAT)
| Units | Per unit |
| 1 - 12 | £9.36 |
| 13 + | £8.45 |
- RS Stock No.:
- 671-5408
- Mfr. Part No.:
- FGL40N120ANDTU
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Discrete IGBTs, 1000V and over, Fairchild Semiconductor
IGBT Discretes & Modules, Fairchild Semiconductor
The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.
Specifications
Attribute | Value |
|---|---|
| Maximum Continuous Collector Current | 64 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Gate Emitter Voltage | ±25V |
| Package Type | TO-264 |
| Mounting Type | Through Hole |
| Channel Type | N |
| Pin Count | 3 |
| Transistor Configuration | Single |
| Dimensions | 20 x 5 x 26mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
- RS Stock No.:
- 671-5408
- Mfr. Part No.:
- FGL40N120ANDTU
- Brand:
- onsemi
