Infineon Single IGBT, 250 A 6500 V, 5-Pin CTI, Surface

View all IGBTs
Bulk discount available

Subtotal (1 unit)*

£1,433.64

(exc. VAT)

£1,720.37

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£1,433.64
10 - 24£1,303.31
25 - 99£1,194.71
100 - 249£1,102.79
250 +£1,024.03

*price indicative

RS Stock No.:
273-5339
Mfr. Part No.:
FZ250R65KE3NPSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Maximum Continuous Collector Current Ic

250A

Product Type

IGBT

Maximum Collector Emitter Voltage Vceo

6500V

Number of Transistors

3

Maximum Power Dissipation Pd

1000kW

Package Type

CTI

Configuration

Single

Mount Type

Surface

Pin Count

5

Minimum Operating Temperature

-55°C

Maximum Gate Emitter Voltage VGEO

20 V

Maximum Collector Emitter Saturation Voltage VceSAT

4.2V

Maximum Operating Temperature

125°C

Height

36.5mm

Standards/Approvals

IEC 60068, IEC 60749, IEC 60747

Length

73mm

Automotive Standard

No

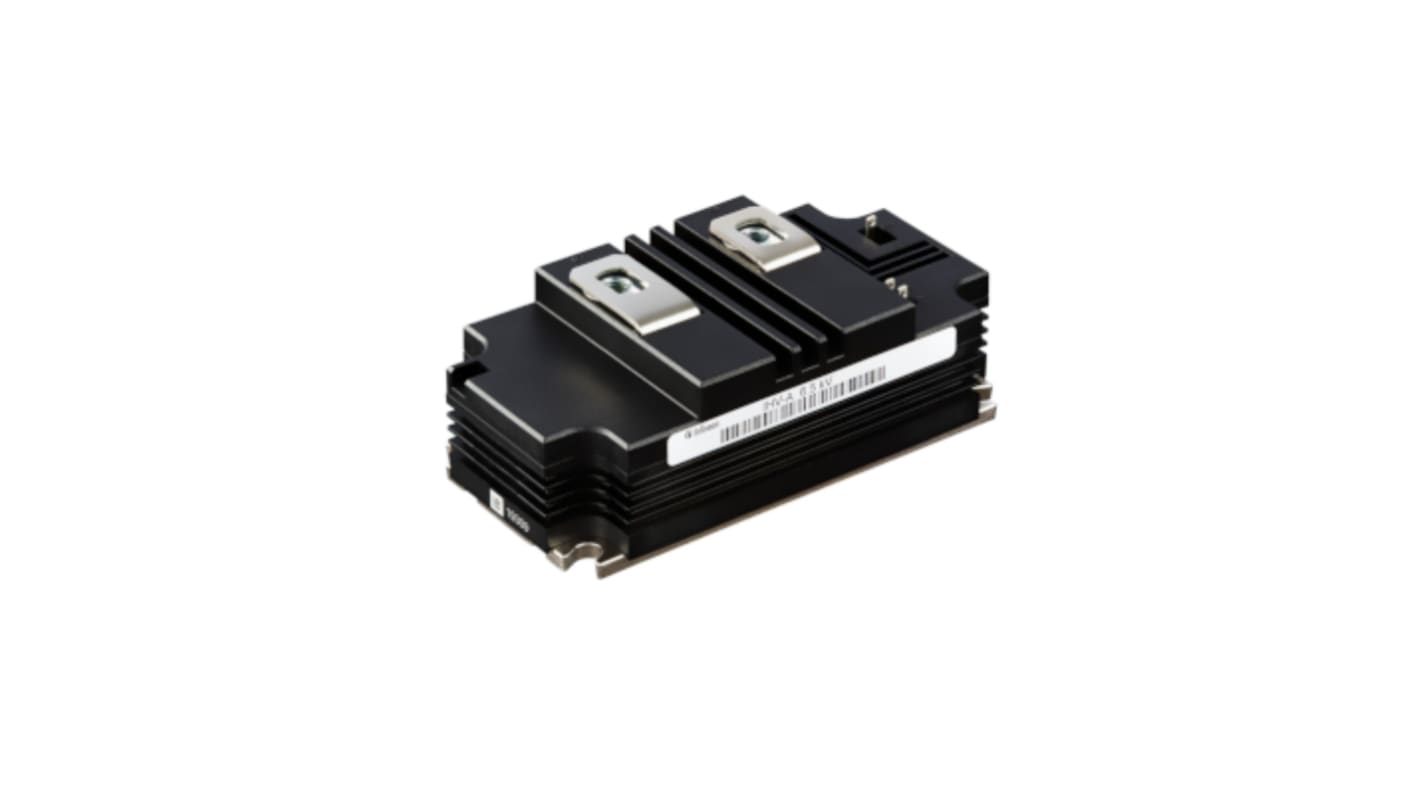

The Infineon IGBT module is a highly insulated module with TRENCHSTOP ™ IGBT3 and emitter controlled 3 diode. It has AL Sic base plate for increased thermal cycling capability. This IGBT module suitable for medium voltage converters and traction drives application.

Low VCEsat

Enhanced insulation of 10.4 kV AC 60 s

High creepage and clearance distances
