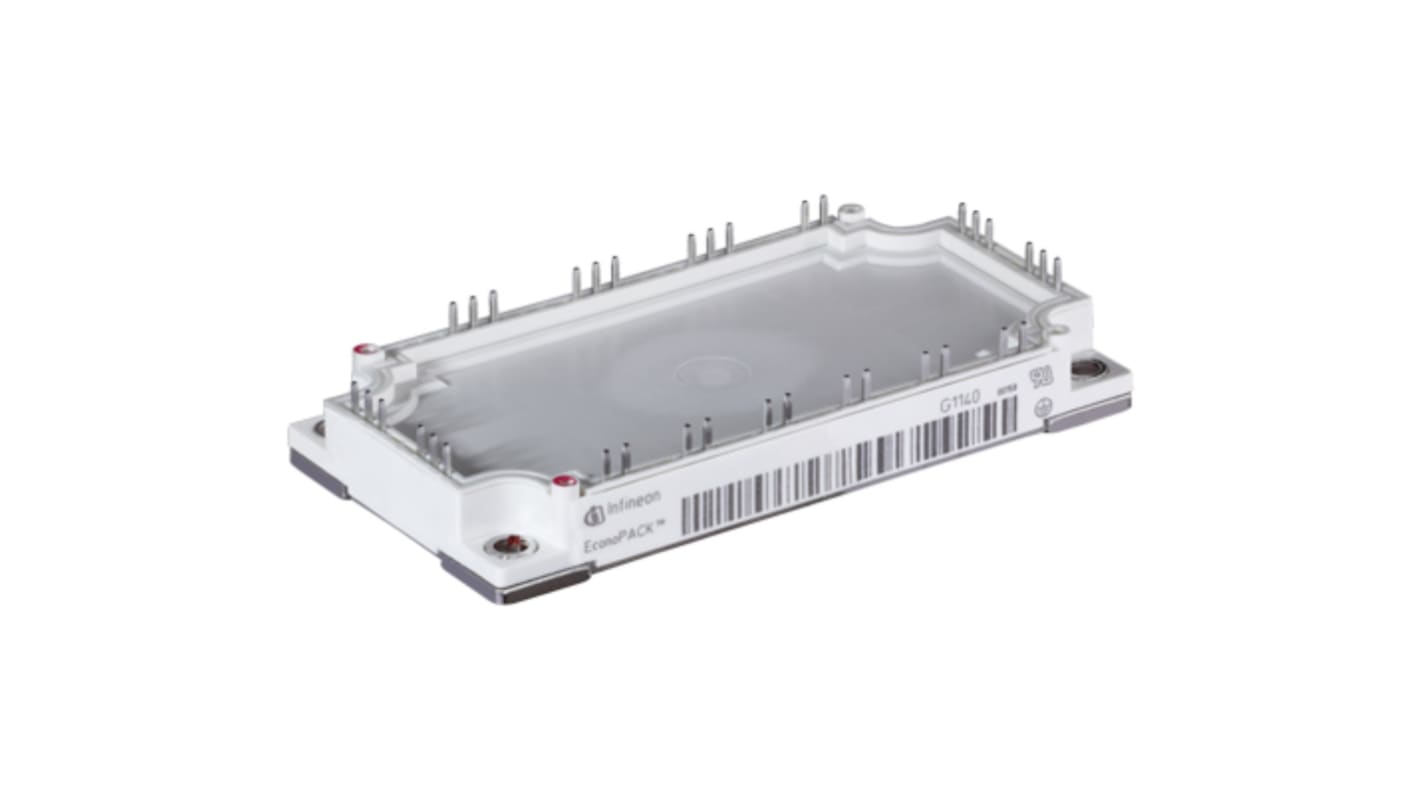

Infineon 3 Phase Bridge IGBT, 150 A 1200 V Module, Panel
- RS Stock No.:
- 273-5337
- Mfr. Part No.:
- FP150R12KT4BPSA1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£176.34
(exc. VAT)
£211.61
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 31 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £176.34 |
| 5 - 9 | £172.81 |
| 10 - 24 | £160.31 |
| 25 - 99 | £146.94 |
| 100 + | £135.64 |
*price indicative
- RS Stock No.:
- 273-5337
- Mfr. Part No.:
- FP150R12KT4BPSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | IGBT | |
| Maximum Continuous Collector Current Ic | 150A | |
| Maximum Collector Emitter Voltage Vceo | 1200V | |
| Maximum Power Dissipation Pd | 20mW | |
| Configuration | 3 Phase Bridge | |
| Package Type | Module | |
| Mount Type | Panel | |
| Minimum Operating Temperature | -40°C | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.1V | |
| Maximum Gate Emitter Voltage VGEO | ±20 V | |
| Maximum Operating Temperature | 150°C | |
| Length | 122mm | |
| Height | 20.5mm | |
| Standards/Approvals | EN61140, IEC61140 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type IGBT | ||
Maximum Continuous Collector Current Ic 150A | ||
Maximum Collector Emitter Voltage Vceo 1200V | ||
Maximum Power Dissipation Pd 20mW | ||
Configuration 3 Phase Bridge | ||
Package Type Module | ||
Mount Type Panel | ||
Minimum Operating Temperature -40°C | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2.1V | ||
Maximum Gate Emitter Voltage VGEO ±20 V | ||
Maximum Operating Temperature 150°C | ||
Length 122mm | ||
Height 20.5mm | ||
Standards/Approvals EN61140, IEC61140 | ||
Automotive Standard No | ||
The Infineon IGBT module is available with fast TRENCHSTOP ™ IGBT4 and emitter controlled 4 diode and NTC. It has VCEsat with positive temperature coefficient. This IGBT module suitable for servo drives, motor drives and auxiliary inverters application.
Low VCEsat
Standard housing
High power density
Copper base plate
Solder contact technology
Integrated NTC temperature sensor
