Infineon IKFW75N65ES5XKSA1, Type N-Channel IGBT, 60 A 650 V, 3-Pin HSIP247, Through Hole
- RS Stock No.:
- 273-2970
- Mfr. Part No.:
- IKFW75N65ES5XKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 unit)*
£7.71
(exc. VAT)
£9.25
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 - 4 | £7.71 |
| 5 - 9 | £7.56 |
| 10 - 24 | £7.00 |
| 25 - 49 | £6.42 |
| 50 + | £5.93 |
*price indicative
- RS Stock No.:
- 273-2970
- Mfr. Part No.:
- IKFW75N65ES5XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Collector Current Ic | 60A | |
| Product Type | IGBT | |
| Maximum Collector Emitter Voltage Vceo | 650V | |
| Maximum Power Dissipation Pd | 148W | |
| Package Type | HSIP247 | |
| Mount Type | Through Hole | |
| Channel Type | Type N | |
| Pin Count | 3 | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.35V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 175°C | |
| Length | 22.9mm | |
| Series | TrenchStop | |
| Standards/Approvals | RoHS | |
| Width | 15.9 mm | |
| Height | 5.18mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current Ic 60A | ||
Product Type IGBT | ||
Maximum Collector Emitter Voltage Vceo 650V | ||
Maximum Power Dissipation Pd 148W | ||
Package Type HSIP247 | ||
Mount Type Through Hole | ||
Channel Type Type N | ||
Pin Count 3 | ||
Maximum Collector Emitter Saturation Voltage VceSAT 1.35V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 175°C | ||
Length 22.9mm | ||
Series TrenchStop | ||
Standards/Approvals RoHS | ||
Width 15.9 mm | ||
Height 5.18mm | ||
Automotive Standard No | ||

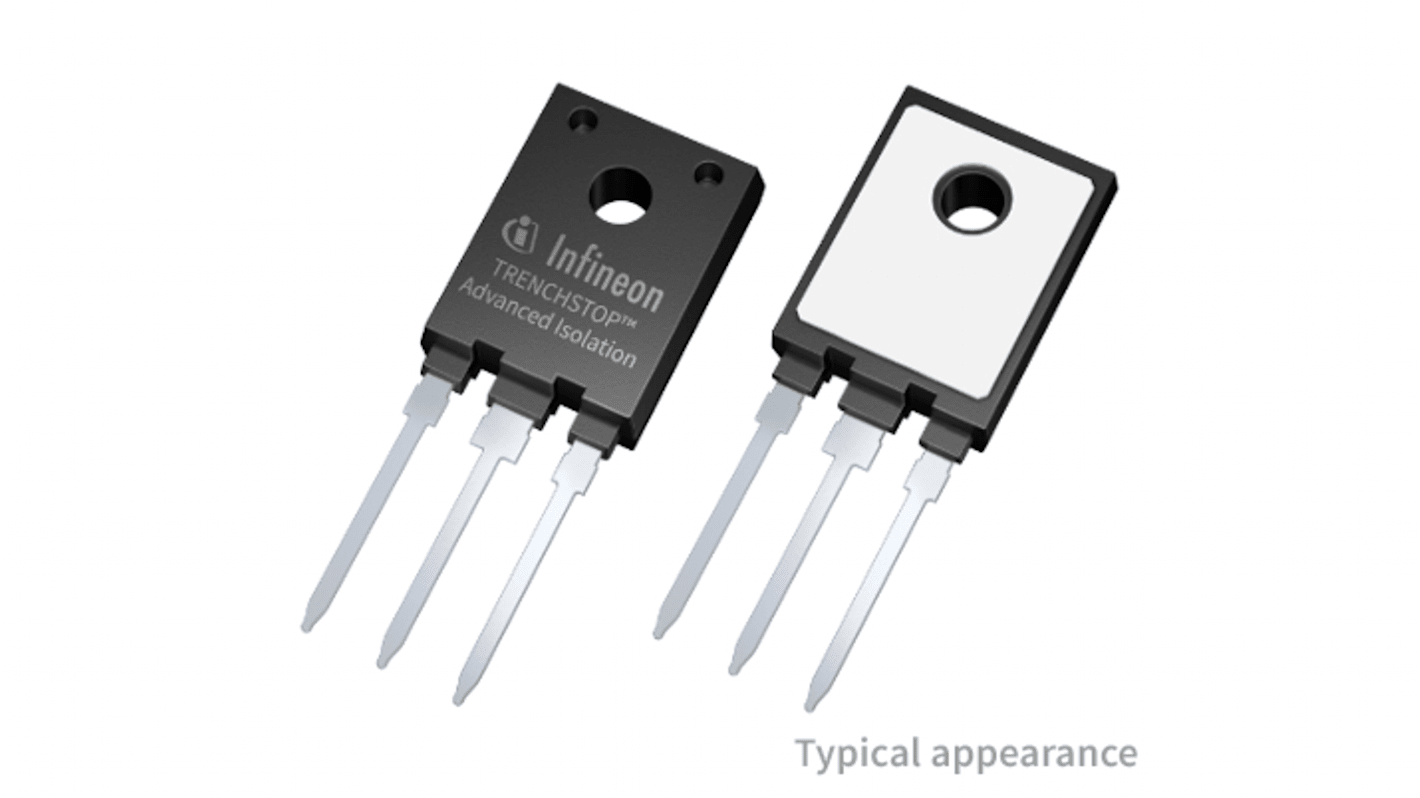

The Infineon IGBT discrete in TO-247 advanced isolation package addresses applications switching between 10 kHz and 40 kHz and due to high controllability and smooth switching behaviour delivers not only high efficiency but easy design in, Faster time to
No need to use isolation material and thermal grease
Increased yield eliminating misalignments of isolation foils
Complete manufacturing process control
