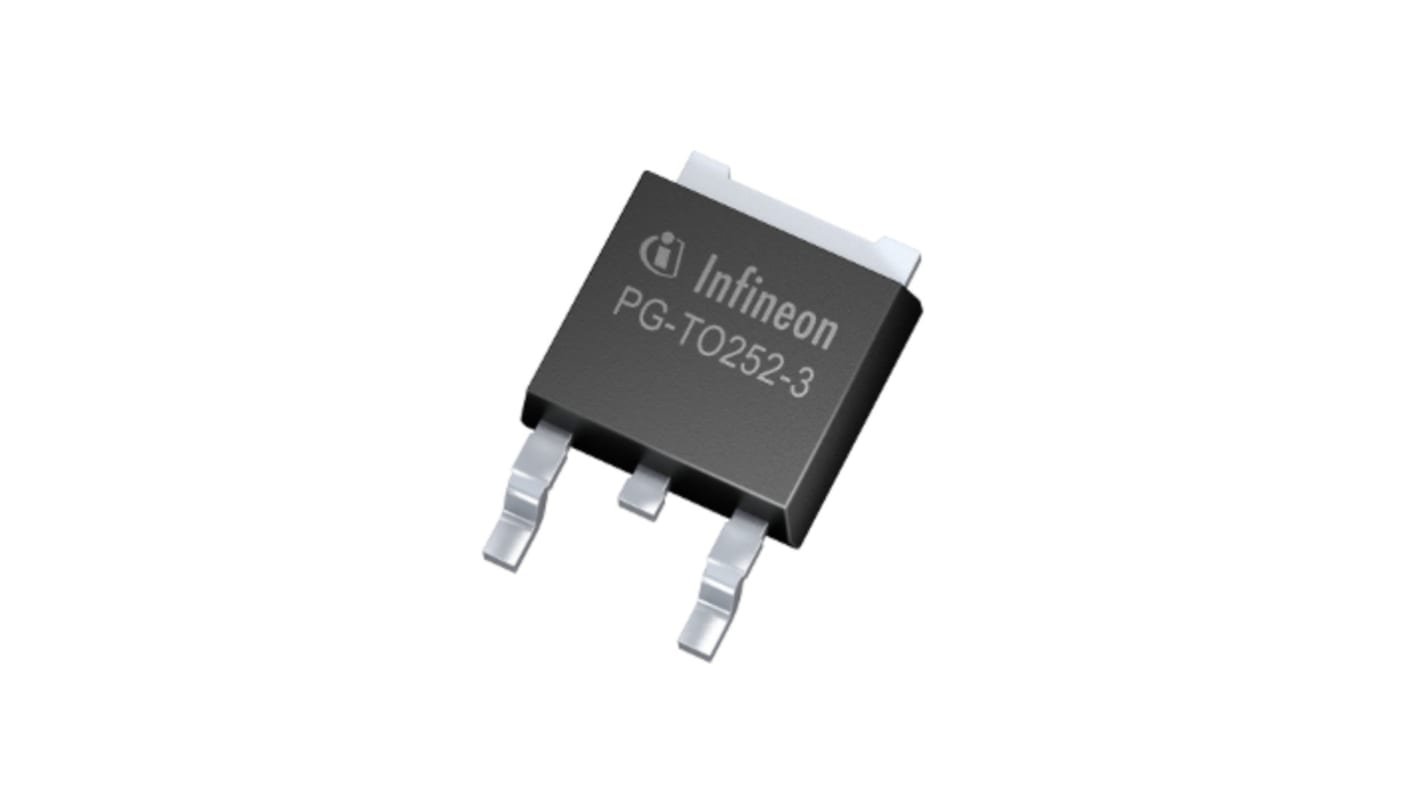

Infineon IKD04N60RC2ATMA1 IGBT, 8 A 600 V TO-252
- RS Stock No.:
- 258-0998
- Mfr. Part No.:
- IKD04N60RC2ATMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 5 units)*
£3.61
(exc. VAT)
£4.33
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,240 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.722 | £3.61 |
| 50 - 120 | £0.65 | £3.25 |
| 125 - 245 | £0.606 | £3.03 |
| 250 - 495 | £0.572 | £2.86 |
| 500 + | £0.468 | £2.34 |
*price indicative
- RS Stock No.:
- 258-0998
- Mfr. Part No.:
- IKD04N60RC2ATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Collector Current Ic | 8A | |
| Product Type | IGBT | |
| Maximum Collector Emitter Voltage Vceo | 600V | |
| Maximum Power Dissipation Pd | 36.6W | |
| Package Type | TO-252 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Gate Emitter Voltage VGEO | ±20 ±25 V | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.3V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | JEDEC47/20/22 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current Ic 8A | ||
Product Type IGBT | ||
Maximum Collector Emitter Voltage Vceo 600V | ||
Maximum Power Dissipation Pd 36.6W | ||
Package Type TO-252 | ||
Minimum Operating Temperature -40°C | ||
Maximum Gate Emitter Voltage VGEO ±20 ±25 V | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2.3V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals JEDEC47/20/22 | ||
Automotive Standard No | ||
The Infineon TRENCHSTOP RC-Series RC-D2 with the monolithically integrated diode offers improvements of the performance, controllability and reliability compared to the RC-DF.
Low switching loses on competitive price
Improved controllability
Humidity Ruggedness improvement
