Infineon IGP40N65F5XKSA1 IGBT, 40 A 650 V TO-220, Through Hole

View all IGBTs
Bulk discount available

Subtotal (1 pack of 2 units)*

£4.66

(exc. VAT)

£5.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 986 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 - 18£2.33£4.66
20 - 48£1.98£3.96
50 - 98£1.845£3.69
100 - 198£1.72£3.44
200 +£1.585£3.17

*price indicative

Packaging Options:
RS Stock No.:
258-0989
Mfr. Part No.:
IGP40N65F5XKSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Maximum Continuous Collector Current Ic

40A

Product Type

IGBT

Maximum Collector Emitter Voltage Vceo

650V

Maximum Power Dissipation Pd

250W

Package Type

TO-220

Mount Type

Through Hole

Minimum Operating Temperature

-40°C

Maximum Collector Emitter Saturation Voltage VceSAT

1.6V

Maximum Gate Emitter Voltage VGEO

±20 ±30 V

Maximum Operating Temperature

175°C

Height

4.57mm

Length

29.95mm

Width

10.36 mm

Standards/Approvals

JEDEC

Series

High Speed Fifth Generation

Automotive Standard

No

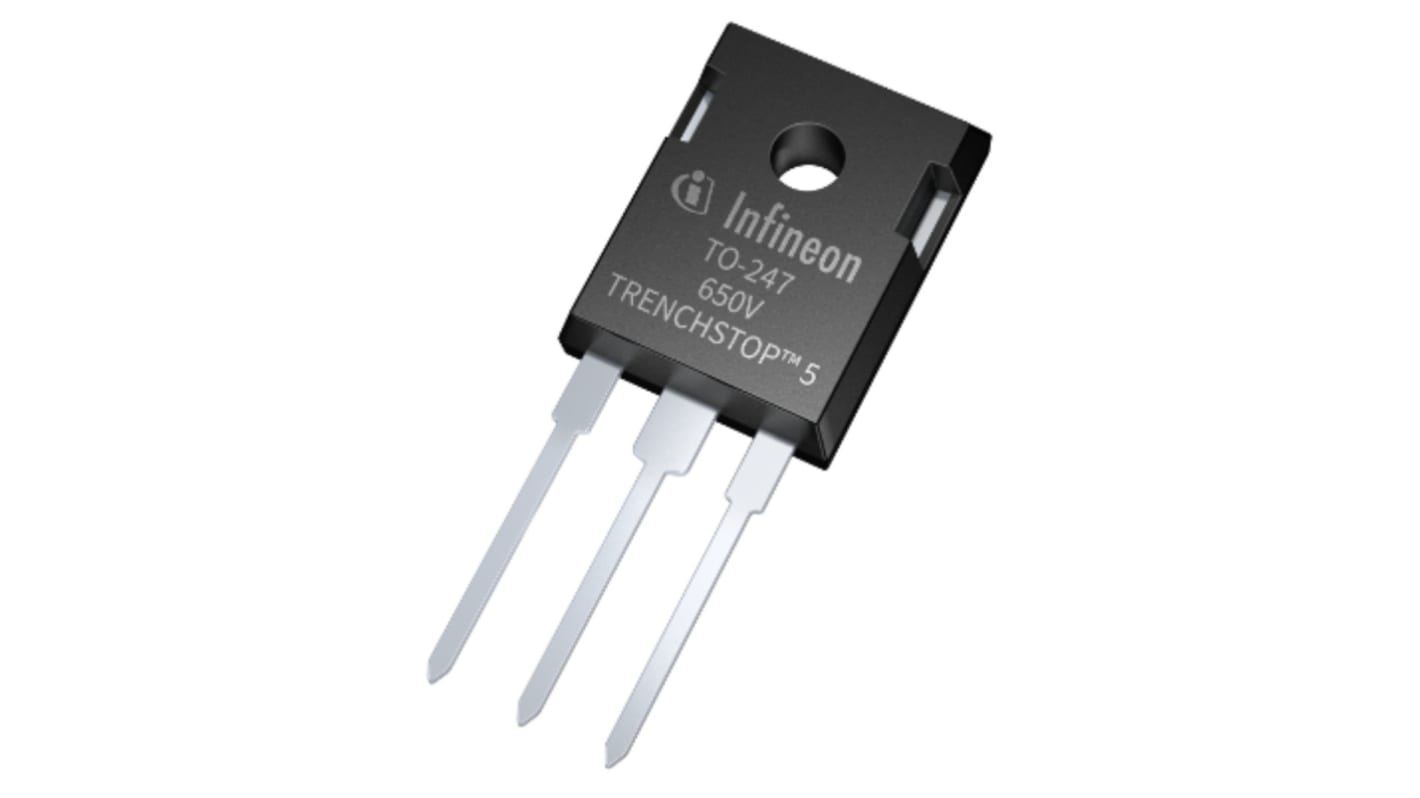

The Infineon hard-switching 650 V, 40 A TRENCHSTOP 5 IGBT discrete in TO-247 package for high efficiency demands. Best-in-class efficiency, resulting in lower junction and case temperature leading to higher device reliability.

00mV reduction in V CE(sat)

Low C OES/E OSS

Mild positive temperature coefficient V CE(sat)

Temperature stability of V f
