MPN

Infineon FP100R12N3T7BPSA1 IGBT 1200 V

Name: Infineon FP100R12N3T7BPSA1 IGBT 1200 V
Brand: Infineon
SKU: 253-9823
Price: 156.54 GBP
Availability: InStock

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

£130.45

(exc. VAT)

£156.54

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	IGBT
	Maximum Collector Emitter Voltage Vceo	1200V
	Maximum Power Dissipation Pd	20mW
	Maximum Gate Emitter Voltage VGEO	20 V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	175°C
	Height	17mm
	Width	62.5 mm
	Standards/Approvals	RoHS
	Series	FP100R12N3T7
	Length	122mm
	Automotive Standard	No

	Select all
	Brand Infineon
	Product Type IGBT
	Maximum Collector Emitter Voltage Vceo 1200V
	Maximum Power Dissipation Pd 20mW
	Maximum Gate Emitter Voltage VGEO 20 V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 175°C
	Height 17mm
	Width 62.5 mm
	Standards/Approvals RoHS
	Series FP100R12N3T7
	Length 122mm
	Automotive Standard No

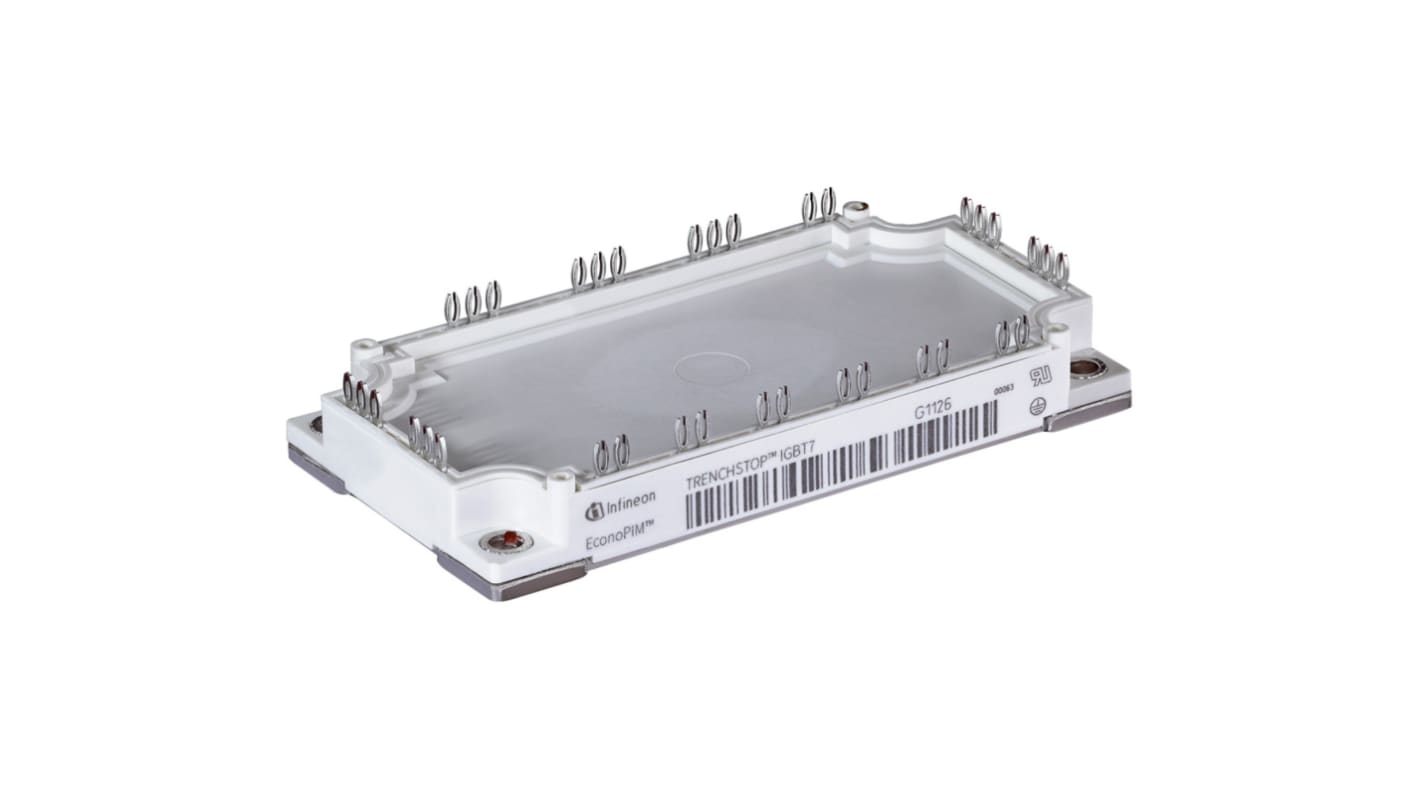

The Infineon FP100 series is a EconoPIM 3 module with IGBT and Emitter controlled diode and NTC.

Low VCEsat

Overload operation up to 175°C

High power and thermal cycling capability

Integrated NTC temperature sensor

Copper base plate

Solder contact technology
