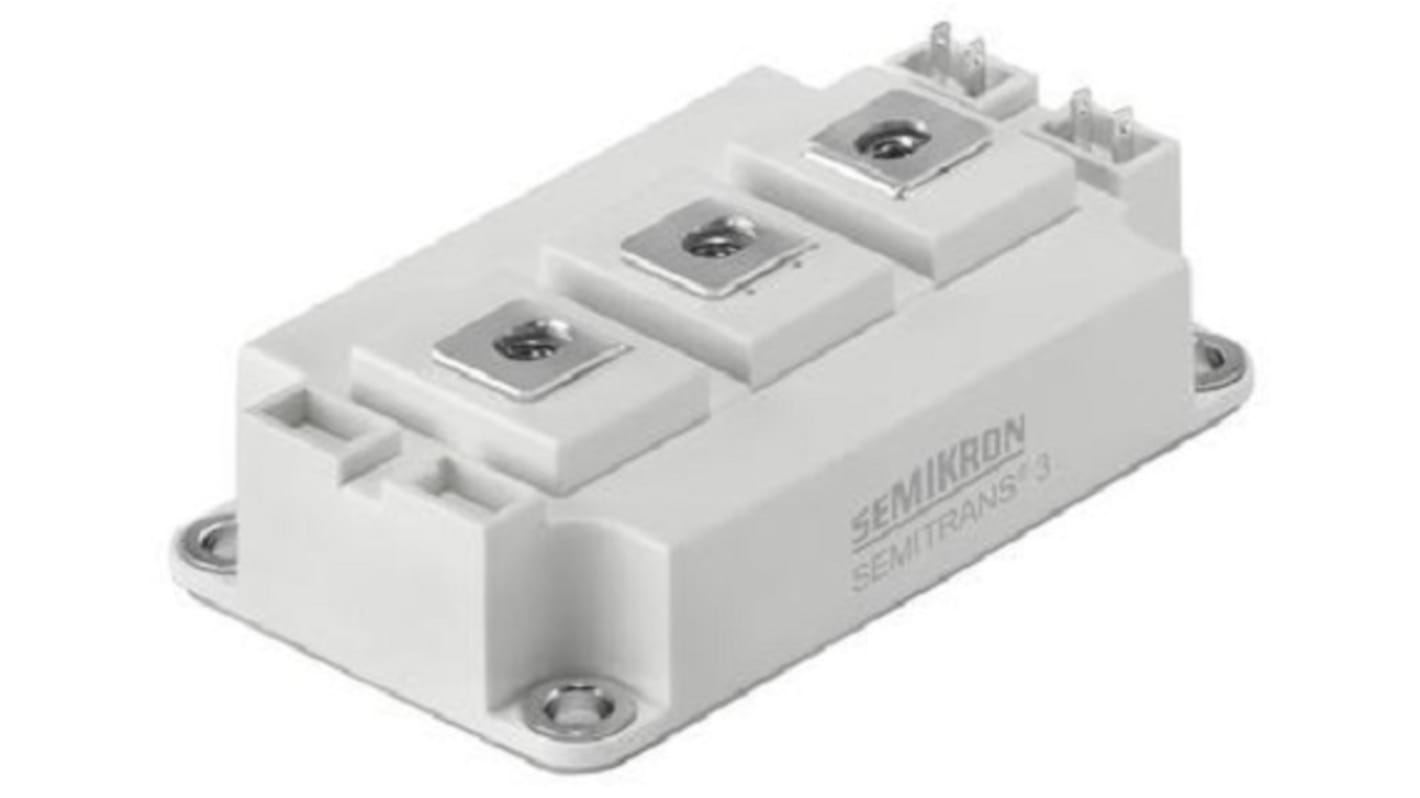

Semikron Danfoss SKM400GAL12F4 IGBT Module, 400 A 1200 V
- RS Stock No.:
- 248-6704
- Mfr. Part No.:
- SKM400GAL12F4
- Brand:
- Semikron Danfoss
Bulk discount available
Subtotal (1 unit)*
£327.96
(exc. VAT)
£393.55
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 2 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 1 | £327.96 |
| 2 - 3 | £295.17 |
| 4 - 5 | £265.65 |
| 6 - 7 | £239.08 |
| 8 + | £215.14 |
*price indicative
- RS Stock No.:
- 248-6704
- Mfr. Part No.:
- SKM400GAL12F4
- Brand:
- Semikron Danfoss
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Semikron Danfoss | |
| Product Type | IGBT Module | |
| Maximum Continuous Collector Current Ic | 400A | |
| Maximum Collector Emitter Voltage Vceo | 1200V | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.97V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Gate Emitter Voltage VGEO | ±15 V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Series | SKM400 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Semikron Danfoss | ||
Product Type IGBT Module | ||
Maximum Continuous Collector Current Ic 400A | ||
Maximum Collector Emitter Voltage Vceo 1200V | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2.97V | ||
Minimum Operating Temperature -40°C | ||
Maximum Gate Emitter Voltage VGEO ±15 V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Series SKM400 | ||
Automotive Standard No | ||
The Semikron SEMITRANS series IGBT module has 1200 v collector to emitter voltage. It is mainly used in DC/DC – converter, electronic welders, brake chopper, switched reluctance motor.
Increased power cycling capability
Insulated copper baseplate using DBC technology (Direct Bonded Copper)
For higher switching frequencies above 15kHz
