- RS Stock No.:
- 248-6661
- Mfr. Part No.:
- IM323L6GXKMA1
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
Product Details

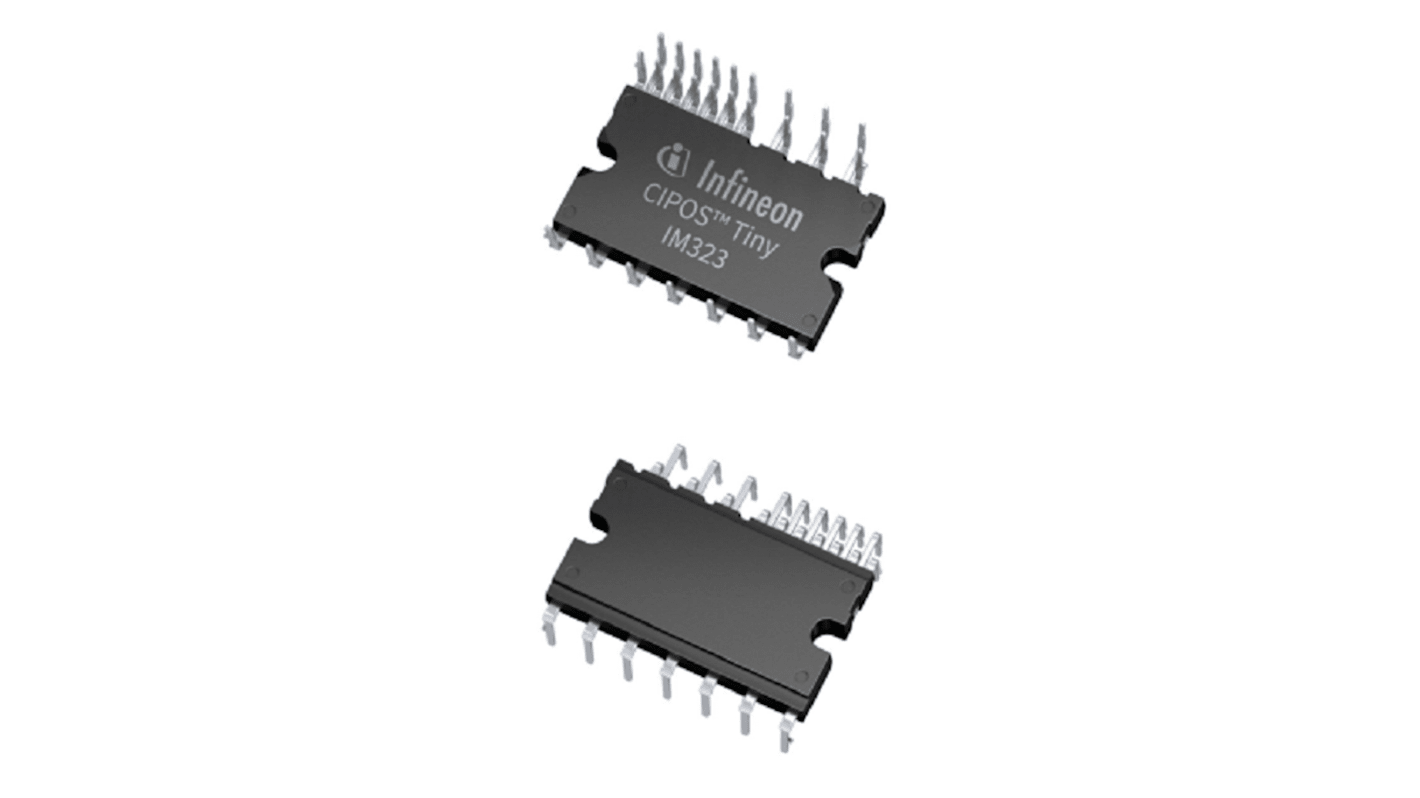

The Infineon CIPOS Tiny IM323 product group offers the chance for integrating various power and control components to increase reliability, optimize PCB size and system costs, it is designed to control three phase AC motors, the package concept is specially adapted to power application, which need good thermal conduction and electrical isolation, also EMI-save control and overload protection and the reverse conducting IGBTs are combined with an optimized SOI gate driver for excellent electrical performance.
C5SOI 3-phase single gate driver
Operating range of 1 to 20 kHz
Maximum junction temperature 175°C for the RCD2
Short circuit capability minimum 3μs
Full pack DIP 32.8 x 18.8 mm
Pin compatible solution
Operating range of 1 to 20 kHz
Maximum junction temperature 175°C for the RCD2
Short circuit capability minimum 3μs
Full pack DIP 32.8 x 18.8 mm
Pin compatible solution
Specifications
Attribute | Value |
---|---|
Maximum Continuous Collector Current | ±15 A |
Maximum Collector Emitter Voltage | 600 V |
Maximum Power Dissipation | 27 W |
Package Type | DIP |
Configuration | 3 Phase |
