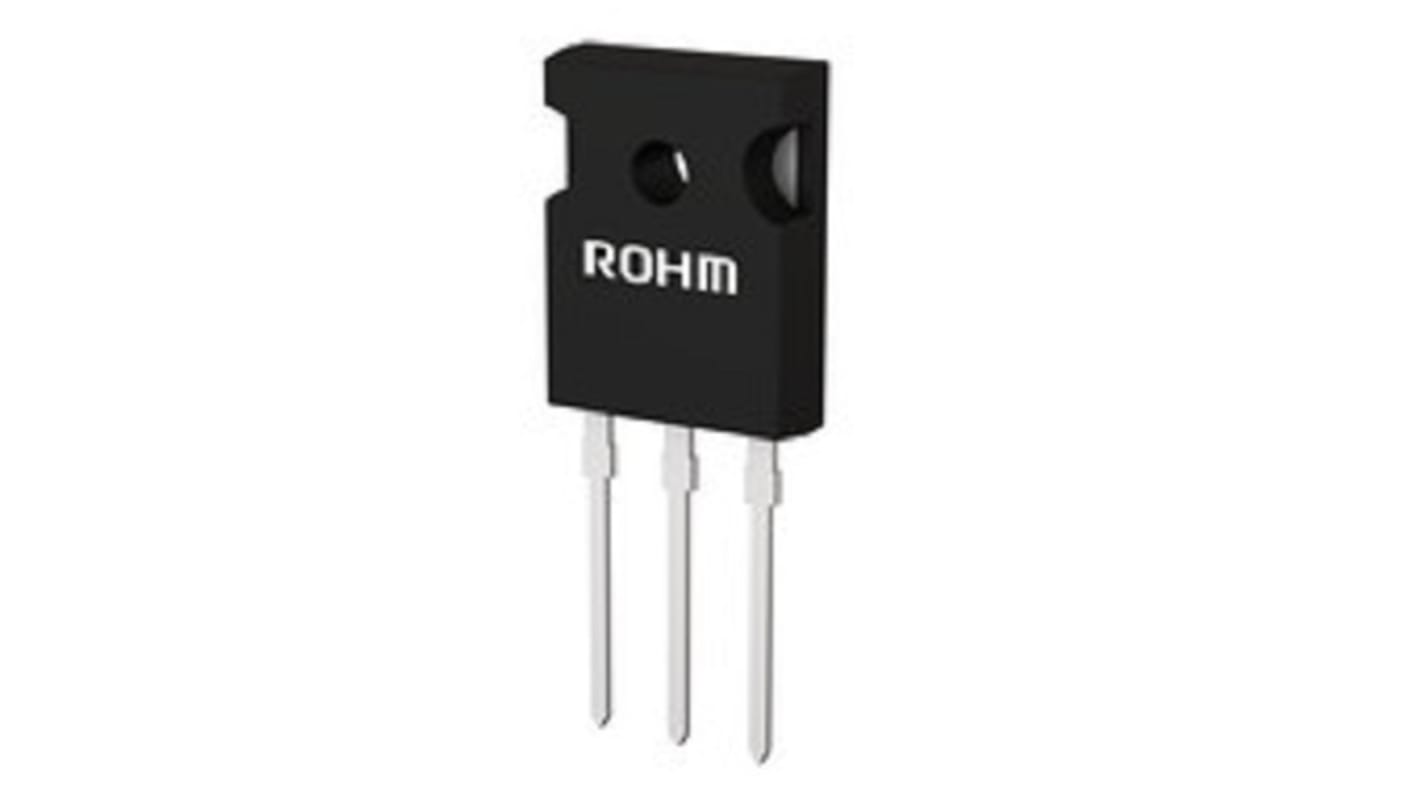

ROHM RGCL60TS60DGC13 Single Collector, Single Emitter, Single Gate IGBT, 48 A 600 V TO-247GE
- RS Stock No.:
- 241-2274
- Mfr. Part No.:
- RGCL60TS60DGC13
- Brand:
- ROHM
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 241-2274
- Mfr. Part No.:
- RGCL60TS60DGC13
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Maximum Continuous Collector Current | 48 A | |
| Maximum Collector Emitter Voltage | 600 V | |
| Maximum Gate Emitter Voltage | ±30V | |
| Maximum Power Dissipation | 111 W | |
| Number of Transistors | 1 | |
| Package Type | TO-247GE | |
| Configuration | Single Collector, Single Emitter, Single Gate | |
Select all | ||
|---|---|---|
Brand ROHM | ||
Maximum Continuous Collector Current 48 A | ||
Maximum Collector Emitter Voltage 600 V | ||
Maximum Gate Emitter Voltage ±30V | ||
Maximum Power Dissipation 111 W | ||
Number of Transistors 1 | ||
Package Type TO-247GE | ||
Configuration Single Collector, Single Emitter, Single Gate | ||
ROHM Field Stop Trench IGBT has a low VCEsat. It contributes to energy saving high efficiency and a wide range of high voltage and high current applications.
Low Collector Emitter Saturation Voltage
Soft Switching
Built in Very Fast & Soft Recovery FRD
Pb free Lead Plating and RoHS Compliant
Soft Switching
Built in Very Fast & Soft Recovery FRD
Pb free Lead Plating and RoHS Compliant
