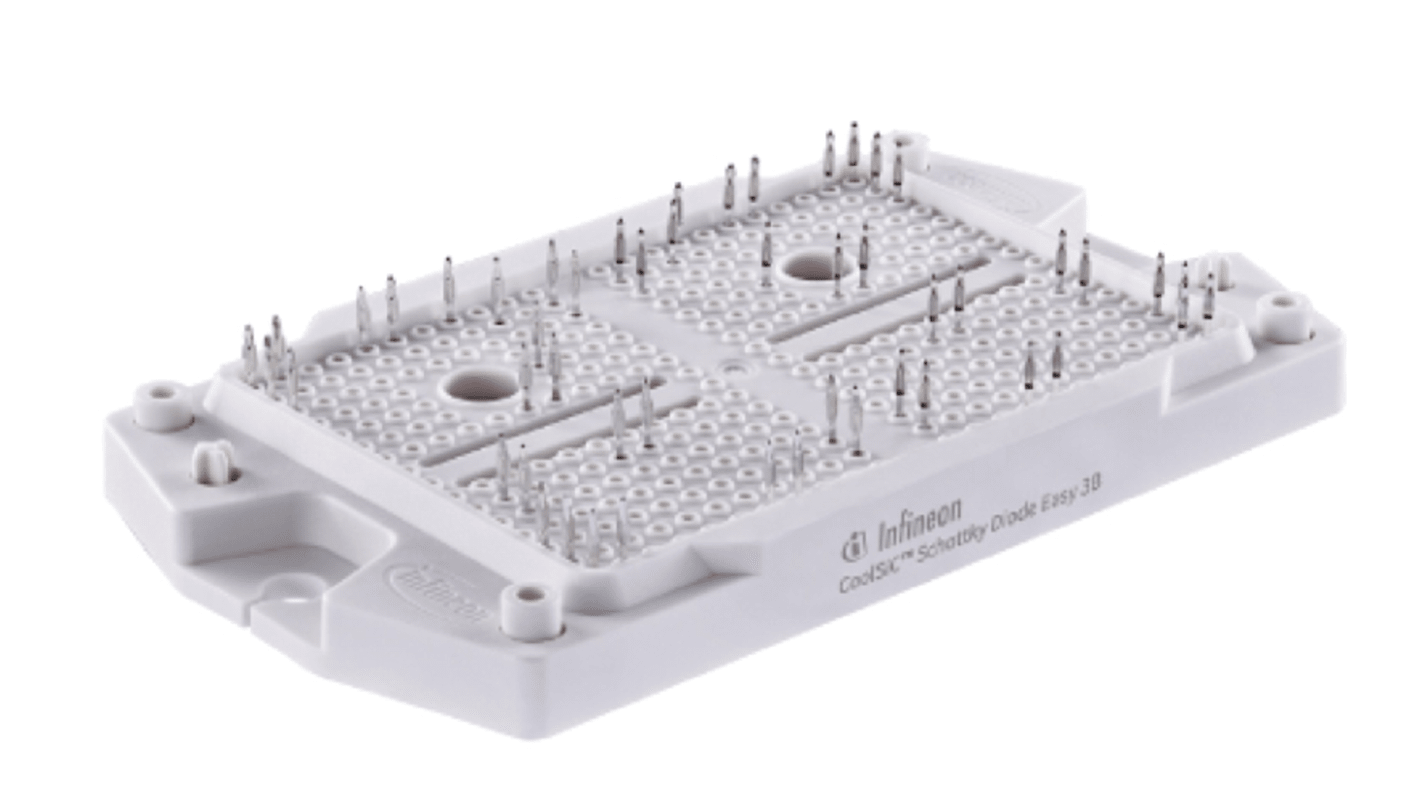

Infineon FS3L100R07W3S5B11BPSA1 Single IGBT Module, 100 A 650 V AG-EASY3B
- RS Stock No.:
- 235-4842
- Mfr. Part No.:
- FS3L100R07W3S5B11BPSA1
- Brand:
- Infineon
Subtotal (1 tray of 8 units)*
£398.528
(exc. VAT)
£478.232
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 8 + | £49.816 | £398.53 |
*price indicative
- RS Stock No.:
- 235-4842
- Mfr. Part No.:
- FS3L100R07W3S5B11BPSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Collector Current | 100 A | |
| Maximum Collector Emitter Voltage | 650 V | |
| Maximum Gate Emitter Voltage | ±20V | |
| Number of Transistors | 1 | |
| Maximum Power Dissipation | 20 mW | |
| Package Type | AG-EASY3B | |
| Configuration | Single | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current 100 A | ||
Maximum Collector Emitter Voltage 650 V | ||
Maximum Gate Emitter Voltage ±20V | ||
Number of Transistors 1 | ||
Maximum Power Dissipation 20 mW | ||
Package Type AG-EASY3B | ||
Configuration Single | ||
The Infineon EasyPACK™ 3B 650 V, 100 A six-pack IGBT module with TRENCHSTOP™ 5, NTC and PressFIT contact technology for 1000V DC PV systems in three level NPC1 topology for up to 40 kVA. It is used as solutions for solar system.
1000 V DC system
Efficiency upto 99%
Output power greater than 40kVA
Excellent performance
650 V TRENCHSTOP™ 5 IGBT used
Efficiency upto 99%
Output power greater than 40kVA
Excellent performance
650 V TRENCHSTOP™ 5 IGBT used
