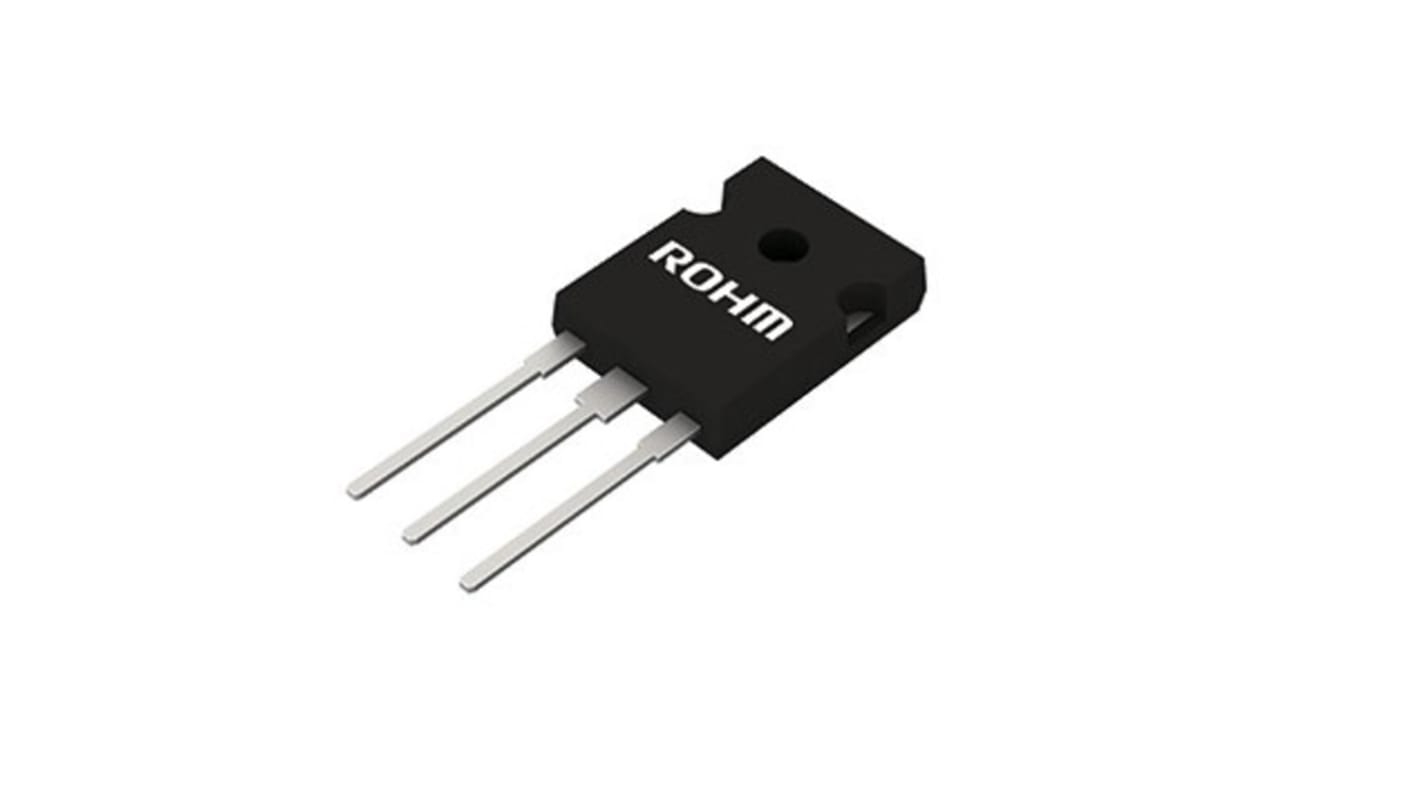

ROHM RGW60TS65DHRC11 Single IGBT, 30 A 650 V, 3-Pin TO-247N, Through Hole
- RS Stock No.:
- 235-2750
- Mfr. Part No.:
- RGW60TS65DHRC11
- Brand:
- ROHM
Subtotal (1 tube of 450 units)*
£1,263.60
(exc. VAT)
£1,516.50
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Tube* |
|---|---|---|
| 450 + | £2.808 | £1,263.60 |
*price indicative
- RS Stock No.:
- 235-2750
- Mfr. Part No.:
- RGW60TS65DHRC11
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Maximum Continuous Collector Current | 30 A | |
| Maximum Collector Emitter Voltage | 650 V | |
| Maximum Gate Emitter Voltage | ±30V | |
| Maximum Power Dissipation | 178 W | |
| Number of Transistors | 1 | |
| Package Type | TO-247N | |
| Configuration | Single | |
| Mounting Type | Through Hole | |
| Channel Type | N | |
| Pin Count | 3 | |
| Transistor Configuration | Common Emitter | |
Select all | ||
|---|---|---|
Brand ROHM | ||
Maximum Continuous Collector Current 30 A | ||
Maximum Collector Emitter Voltage 650 V | ||
Maximum Gate Emitter Voltage ±30V | ||
Maximum Power Dissipation 178 W | ||
Number of Transistors 1 | ||
Package Type TO-247N | ||
Configuration Single | ||
Mounting Type Through Hole | ||
Channel Type N | ||
Pin Count 3 | ||
Transistor Configuration Common Emitter | ||
The ROHM RGW series field stop trench IGBT suitable for automotive, on & off board computer, DC-DC converters, PFC, industrial inverter. It has collector emitter voltage of 650 V and collector current of 30 A. It has high-speed switching, contributing to higher efficiency of applications.
AEC-Q101 qualified
Low collector emitter saturation voltage
Low switching loss & soft switching
Pb-free lead plating
RoHS compliant
Low collector emitter saturation voltage
Low switching loss & soft switching
Pb-free lead plating
RoHS compliant
