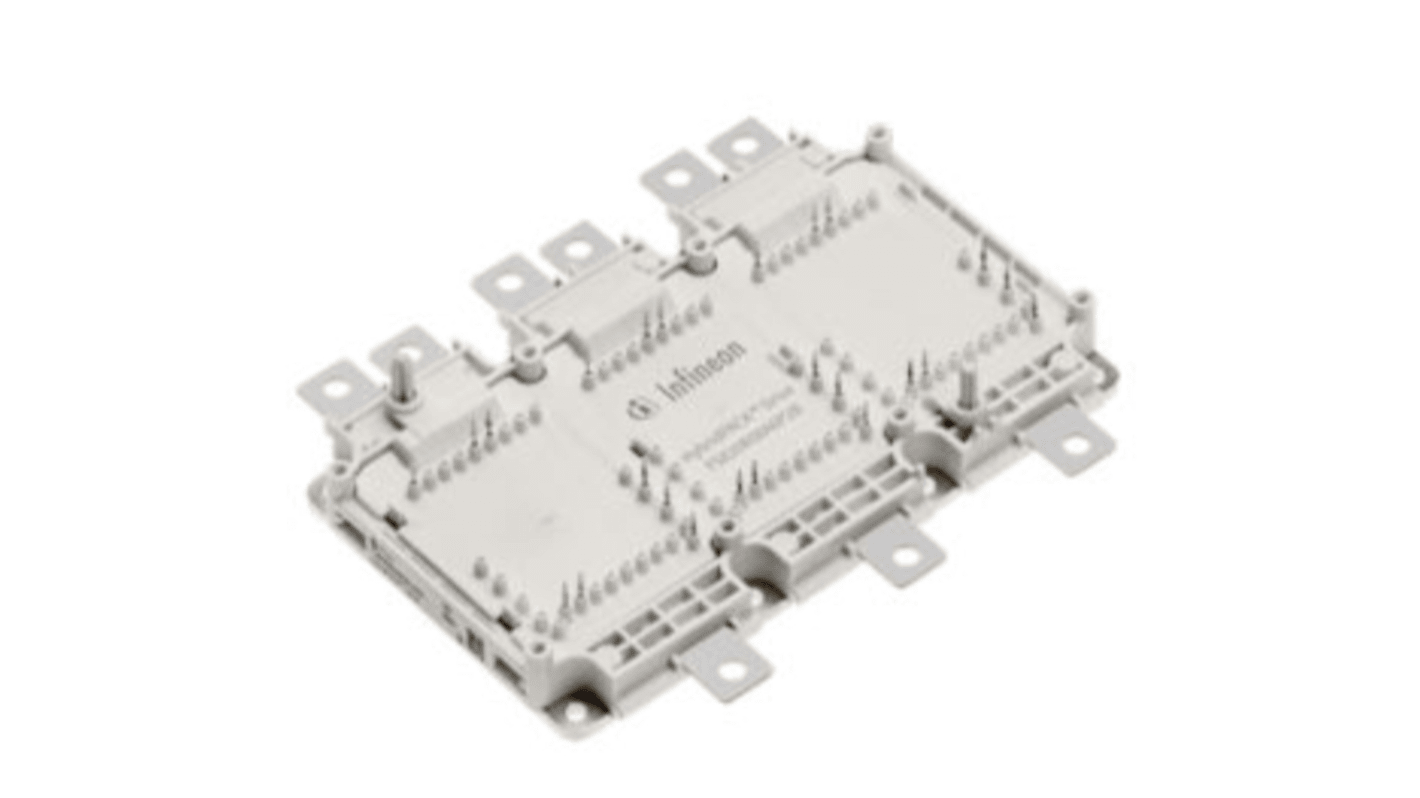

Infineon FS820R08A6P2LBBPSA1, N-Channel IGBT Module, 450 A 750 V, 33-Pin AG-HYBRIDD, Through Hole
- RS Stock No.:
- 229-1788
- Mfr. Part No.:
- FS820R08A6P2LBBPSA1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£227.29
(exc. VAT)
£272.75
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 19 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £227.29 |
| 2 + | £215.93 |
*price indicative
- RS Stock No.:
- 229-1788
- Mfr. Part No.:
- FS820R08A6P2LBBPSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Collector Current Ic | 450A | |
| Product Type | IGBT Module | |
| Maximum Collector Emitter Voltage Vceo | 750V | |
| Maximum Power Dissipation Pd | 20mW | |
| Number of Transistors | 6 | |
| Package Type | AG-HYBRIDD | |
| Mount Type | Through Hole | |
| Channel Type | N | |
| Pin Count | 33 | |
| Maximum Gate Emitter Voltage VGEO | 20 V | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.35V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Series | FS820R08A6P2LB | |
| Length | 154.5mm | |
| Height | 26mm | |
| Width | 100.5mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current Ic 450A | ||
Product Type IGBT Module | ||
Maximum Collector Emitter Voltage Vceo 750V | ||
Maximum Power Dissipation Pd 20mW | ||
Number of Transistors 6 | ||
Package Type AG-HYBRIDD | ||
Mount Type Through Hole | ||
Channel Type N | ||
Pin Count 33 | ||
Maximum Gate Emitter Voltage VGEO 20 V | ||
Maximum Collector Emitter Saturation Voltage VceSAT 1.35V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Series FS820R08A6P2LB | ||
Length 154.5mm | ||
Height 26mm | ||
Width 100.5mm | ||
Automotive Standard No | ||
The Infineon HybridPACK drive module with EDT2 IGBT and diode is an automotive qualified power module designed for hybrid- and electric vehicle applications. The product has long AC power terminals and is well suited for implementation of phase current sensor solutions. It has direct cooled base plate.
It is RoHS compliant
It is compact design module
It has integrated NTC temperature sensor
