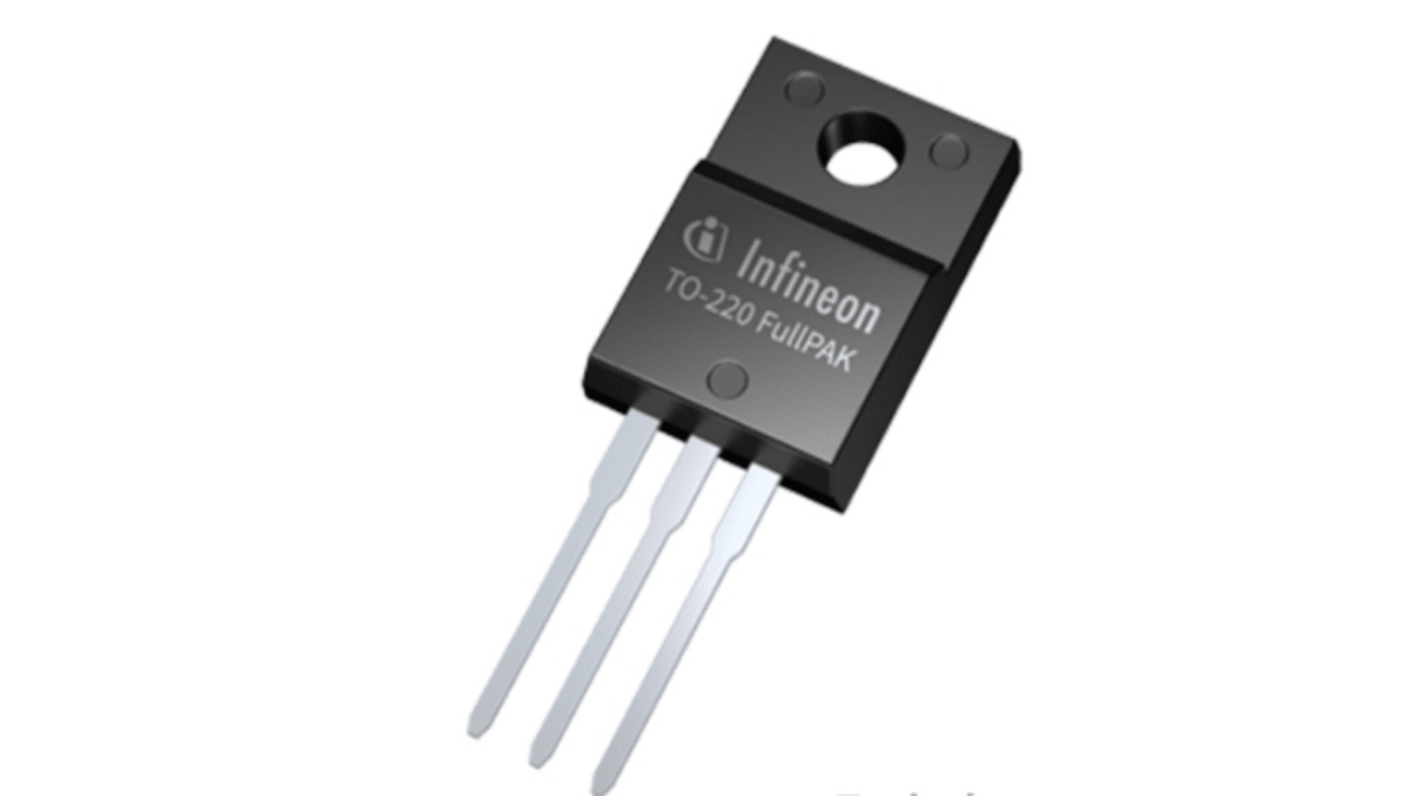

Infineon IKA15N65ET6XKSA2, Type N-Channel IGBT, 34 A 650 V, 3-Pin TO-220, Through Hole

View all IGBTs
Bulk discount available

Subtotal (1 pack of 10 units)*

£14.94

(exc. VAT)

£17.93

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 340 unit(s), ready to ship
Units
Per unit
Per Pack*
10 - 40£1.494£14.94
50 - 90£1.419£14.19
100 - 240£1.389£13.89
250 - 490£1.30£13.00
500 +£1.21£12.10

*price indicative

Packaging Options:
RS Stock No.:
226-6082
Mfr. Part No.:
IKA15N65ET6XKSA2
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

IGBT

Maximum Continuous Collector Current Ic

34A

Maximum Collector Emitter Voltage Vceo

650V

Maximum Power Dissipation Pd

35.3W

Package Type

TO-220

Mount Type

Through Hole

Channel Type

Type N

Pin Count

3

Minimum Operating Temperature

-40°C

Maximum Gate Emitter Voltage VGEO

30 V

Maximum Collector Emitter Saturation Voltage VceSAT

1.5V

Maximum Operating Temperature

175°C

Standards/Approvals

RoHS Compliant

Series

TrenchStop

Automotive Standard

No

The Infineon IKA10N65ET6 is good thermal performance, especially at higher frequencies and increased design margin and reliability. It is very soft, fast recovery anti-parallel rapid diode. It has low losses to meet energy efficient requirements.

Very low VCE(sat) 1.5V(typ.)

Maximum junction temperature 175°C

Low gate chargeQG

Pb-free lead platingRoHS compliant
