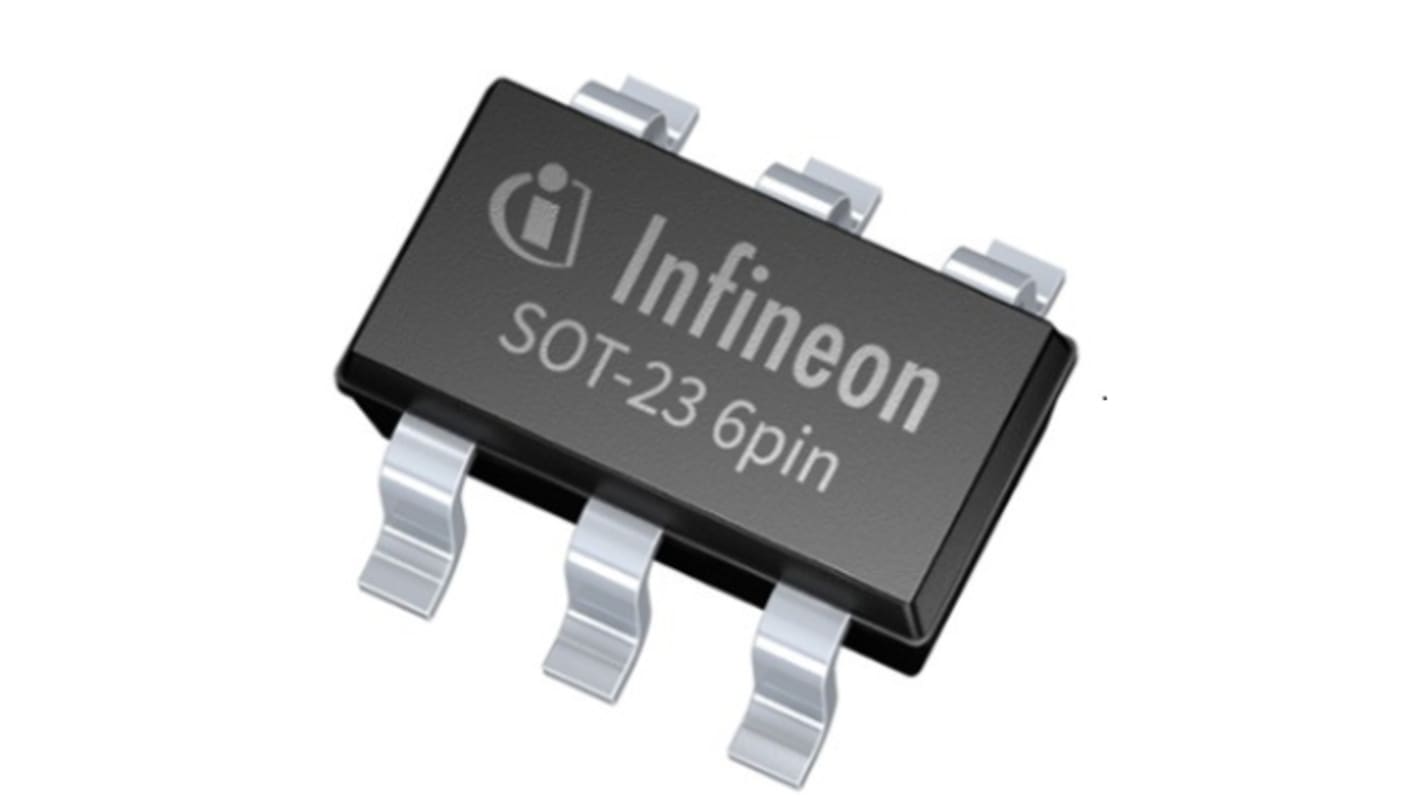

Infineon 1ED44175N01BXTSA1 IGBT, 11.9 A 11.4 V, 6-Pin PG-SOT23-6-3

View all IGBTs

Subtotal (1 reel of 3000 units)*

£786.00

(exc. VAT)

£942.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 19 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +£0.262£786.00

*price indicative

RS Stock No.:
222-4756
Mfr. Part No.:
1ED44175N01BXTSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Maximum Continuous Collector Current

11.9 A

Maximum Collector Emitter Voltage

11.4 V

Maximum Gate Emitter Voltage

20V

Maximum Power Dissipation

500 mW

Package Type

PG-SOT23-6-3

Channel Type

N

Pin Count

6

Transistor Configuration

Common Emitter

The Infineon EiceDRIVER™ 25 V single-channel low-side non-inverting gate driver for IGBT with typical 2.6 A source and sink currents in a tiny 6-lead PG-SOT23 package.

-0.246 V over-current threshold with accurate ±5% tolerance
Over-current detection with negative voltage input
Single pin for fault output and enable
Programmable fault clear time
Under voltage lockout for IGBTs
CMOS Schmitt-triggered inputs
