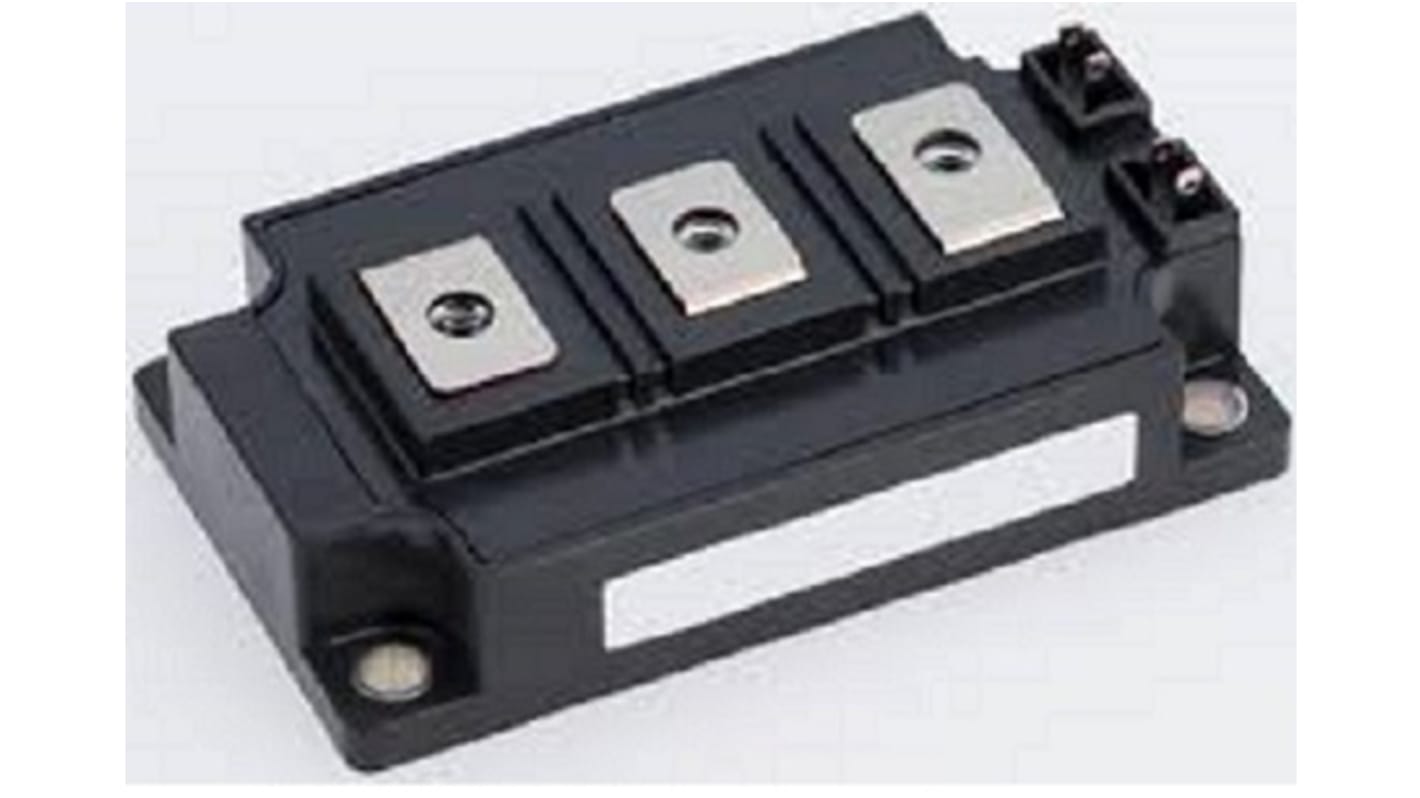

Mitsubishi Electric CM450DY-24T #300G Dual IGBT Module, 450 1200 V Module, PCB Mount
- RS Stock No.:
- 207-4971
- Mfr. Part No.:
- CM450DY-24T #300G
- Brand:
- Mitsubishi Electric
14 In stock - FREE next working day delivery available
Price Each
£264.40
(exc. VAT)
£317.28
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 4 | £264.40 |
| 5 + | £235.04 |
- RS Stock No.:
- 207-4971
- Mfr. Part No.:
- CM450DY-24T #300G
- Brand:
- Mitsubishi Electric
Technical Reference
Legislation and Compliance
Product Details
The Mitsubishi Electric 1200V of dual IGBT module has flat base and six driver per module. It has 450A of continuous collector current and it is suitable for hard switching and soft switching application such as inverter, motor control and industrial drives.
Tin plating pin terminal
Used copper base plate
Maximum junction temperature 175°C
Used copper base plate
Maximum junction temperature 175°C
Specifications
Attribute | Value |
|---|---|
| Maximum Continuous Collector Current | 450 |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Gate Emitter Voltage | 20V |
| Number of Transistors | 2 |
| Configuration | Dual |
| Package Type | Module |
| Mounting Type | PCB Mount |
| Channel Type | N |
| Transistor Configuration | Dual Half Bridge |
