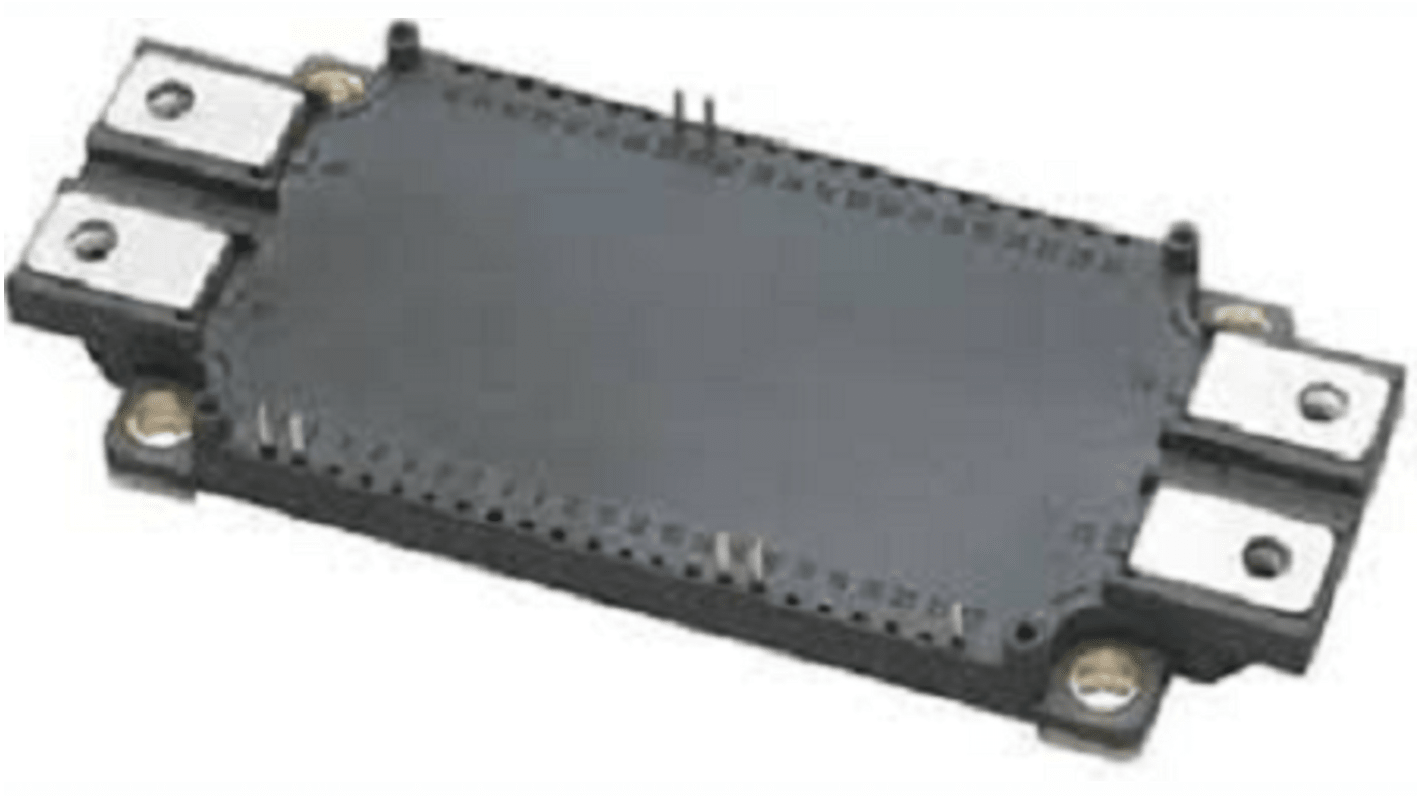

Mitsubishi Electric CM450DX -24T #300G, Type N-Channel IGBT Module, 450 A 1200 V, 11-Pin Module, PCB

View all IGBTs
Bulk discount available

Subtotal (1 box of 9 units)*

£1,550.448

(exc. VAT)

£1,860.534

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 02 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
9 - 9£172.272£1,550.45
18 - 18£155.044£1,395.40
27 - 99£140.919£1,268.27
108 +£129.204£1,162.84

*price indicative

RS Stock No.:
207-4967
Mfr. Part No.:
CM450DX -24T #300G
Brand:
Mitsubishi Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Mitsubishi Electric

Product Type

IGBT Module

Maximum Continuous Collector Current Ic

450A

Maximum Collector Emitter Voltage Vceo

1200V

Number of Transistors

2

Maximum Power Dissipation Pd

2.5kW

Package Type

Module

Mount Type

PCB

Channel Type

Type N

Pin Count

11

Minimum Operating Temperature

-40°C

Maximum Collector Emitter Saturation Voltage VceSAT

2.05V

Maximum Gate Emitter Voltage VGEO

20 V

Maximum Operating Temperature

150°C

Standards/Approvals

No

Series

VM450DX-24T

Length

152mm

Width

62 mm

Height

17mm

Automotive Standard

No

The Mitsubishi Electric 1200V of dual IGBT module has flat base and six driver per module with low profile. It has 300A of continuous collector current and it is suitable for hard switching and soft switching application such as inverter, motor control and industrial drives.

Tin plating pin terminal

Used copper base plate

Maximum junction temperature 175°C
