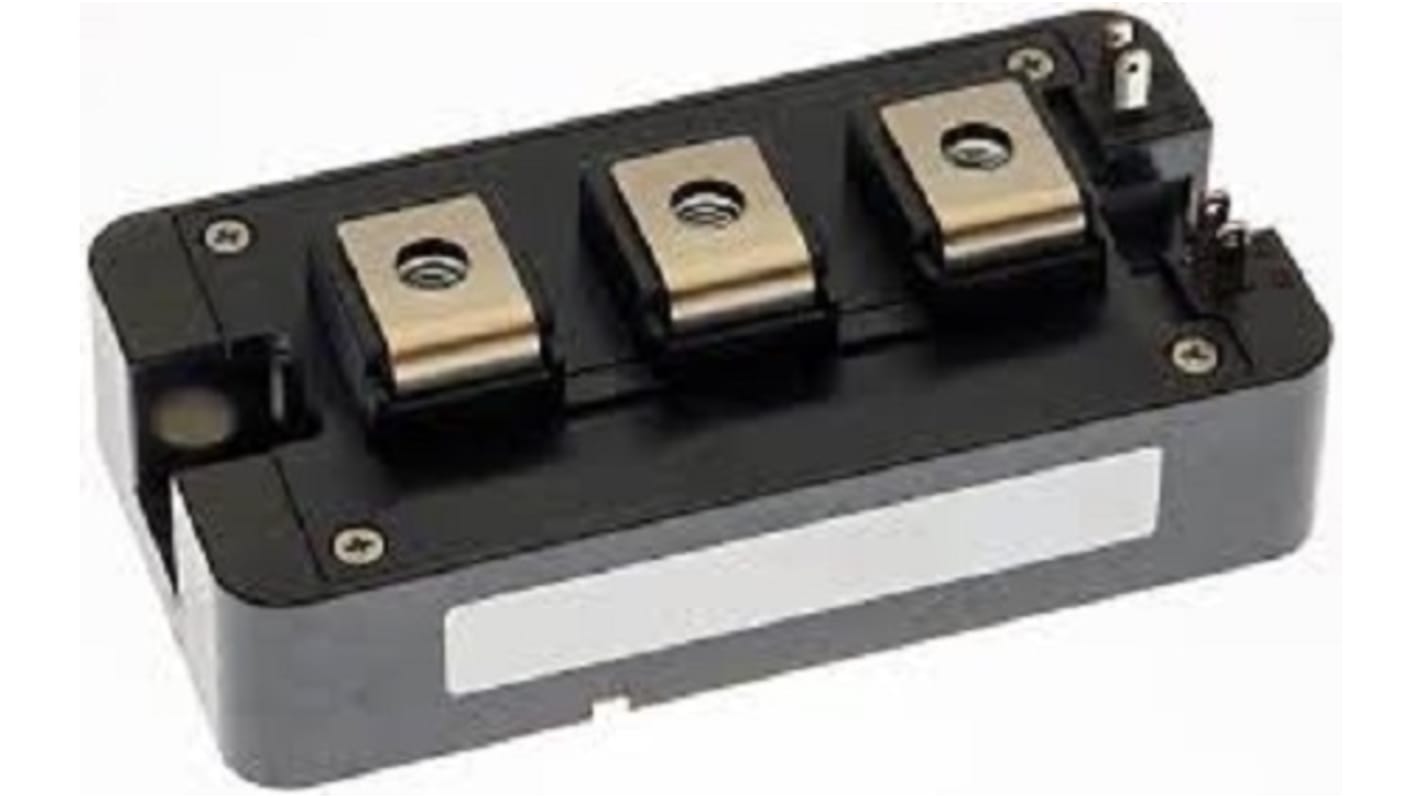

Mitsubishi Electric CM300DY-24T #300G, Type N-Channel IGBT Module, 300 A 1200 V, 7-Pin Module, PCB

View all IGBTs
Bulk discount available

Subtotal (1 box of 10 units)*

£1,611.85

(exc. VAT)

£1,934.22

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 10 unit(s) shipping from 20 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
10 - 20£161.185£1,611.85
30 - 90£146.517£1,465.17
100 +£134.267£1,342.67

*price indicative

RS Stock No.:
207-4965
Mfr. Part No.:
CM300DY-24T #300G
Brand:
Mitsubishi Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Mitsubishi Electric

Maximum Continuous Collector Current Ic

300A

Product Type

IGBT Module

Maximum Collector Emitter Voltage Vceo

1200V

Maximum Power Dissipation Pd

3.26kW

Number of Transistors

2

Package Type

Module

Mount Type

PCB

Channel Type

Type N

Pin Count

7

Maximum Gate Emitter Voltage VGEO

20 V

Minimum Operating Temperature

-40°C

Maximum Collector Emitter Saturation Voltage VceSAT

2V

Maximum Operating Temperature

150°C

Width

48 mm

Series

CM300DY-24T

Length

94mm

Standards/Approvals

No

Height

40mm

Automotive Standard

No

The Mitsubishi Electric 1200V of dual IGBT module has flat base and six driver per module. It has 300A of continuous collector current and it is suitable for hard switching and soft switching application such as inverter, motor control and industrial drives.

Tin plating pin terminal

Used copper base plate

Maximum junction temperature 175°C
