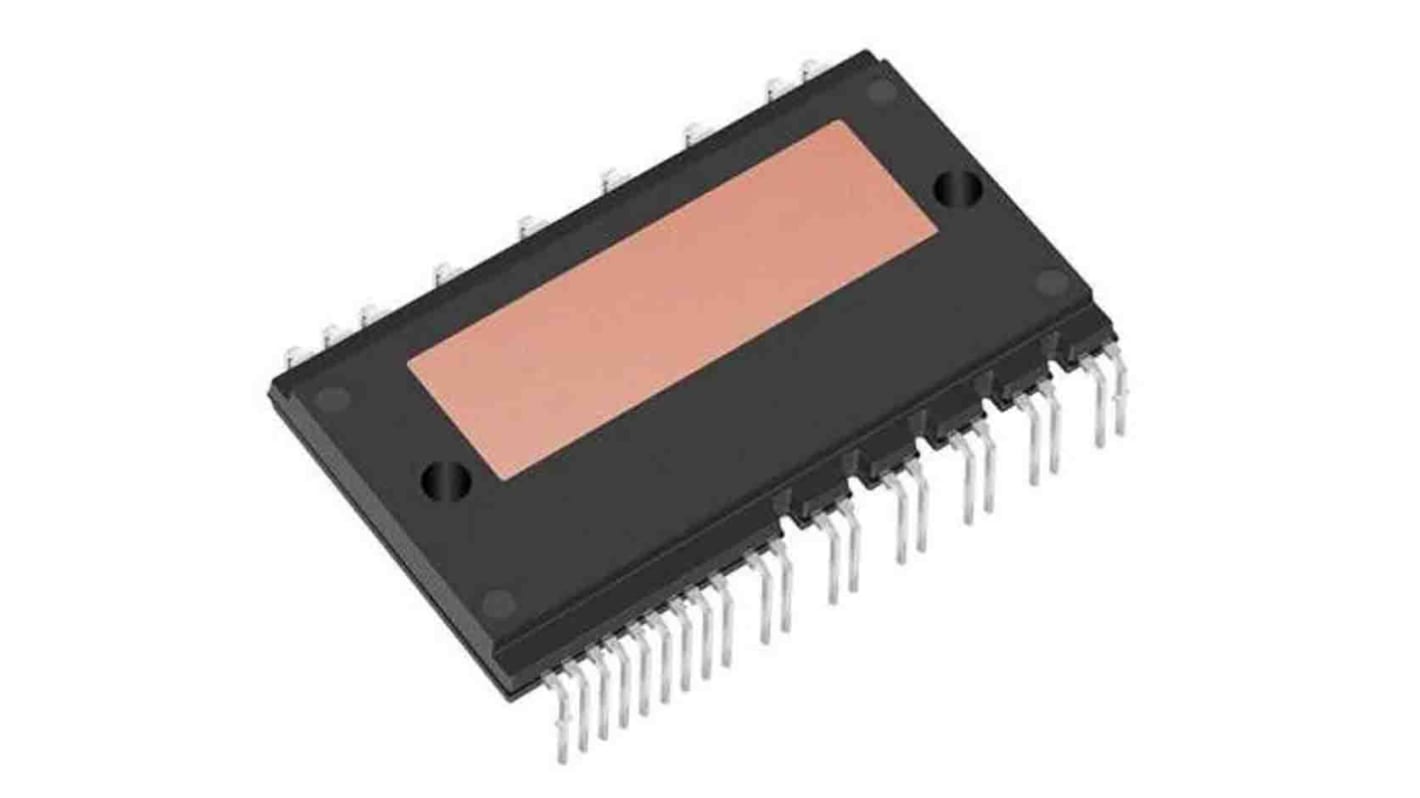

onsemi NFAM1012L5B IGBT Module DIP39, Screw Mount
- RS Stock No.:
- 202-7316
- Mfr. Part No.:
- NFAM1012L5B
- Brand:
- onsemi
Stock information currently inaccessible
- RS Stock No.:
- 202-7316
- Mfr. Part No.:
- NFAM1012L5B
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Package Type | DIP39 | |
| Mounting Type | Screw Mount | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Package Type DIP39 | ||
Mounting Type Screw Mount | ||
The ON Semiconductor NFAM1012L5B is a fully-integrated inverter power module consisting of an independent High side gate driver, LVIC, six IGBT’s and a temperature sensor (TSU by LVIC), suitable for driving permanent magnet synchronous (PMSM) motors, brushless DC (BLDC) motors and AC asynchronous motors.
Built-in under-voltage protection (UVP)
Integrated bootstrap diodes and resistors
Integrated bootstrap diodes and resistors
