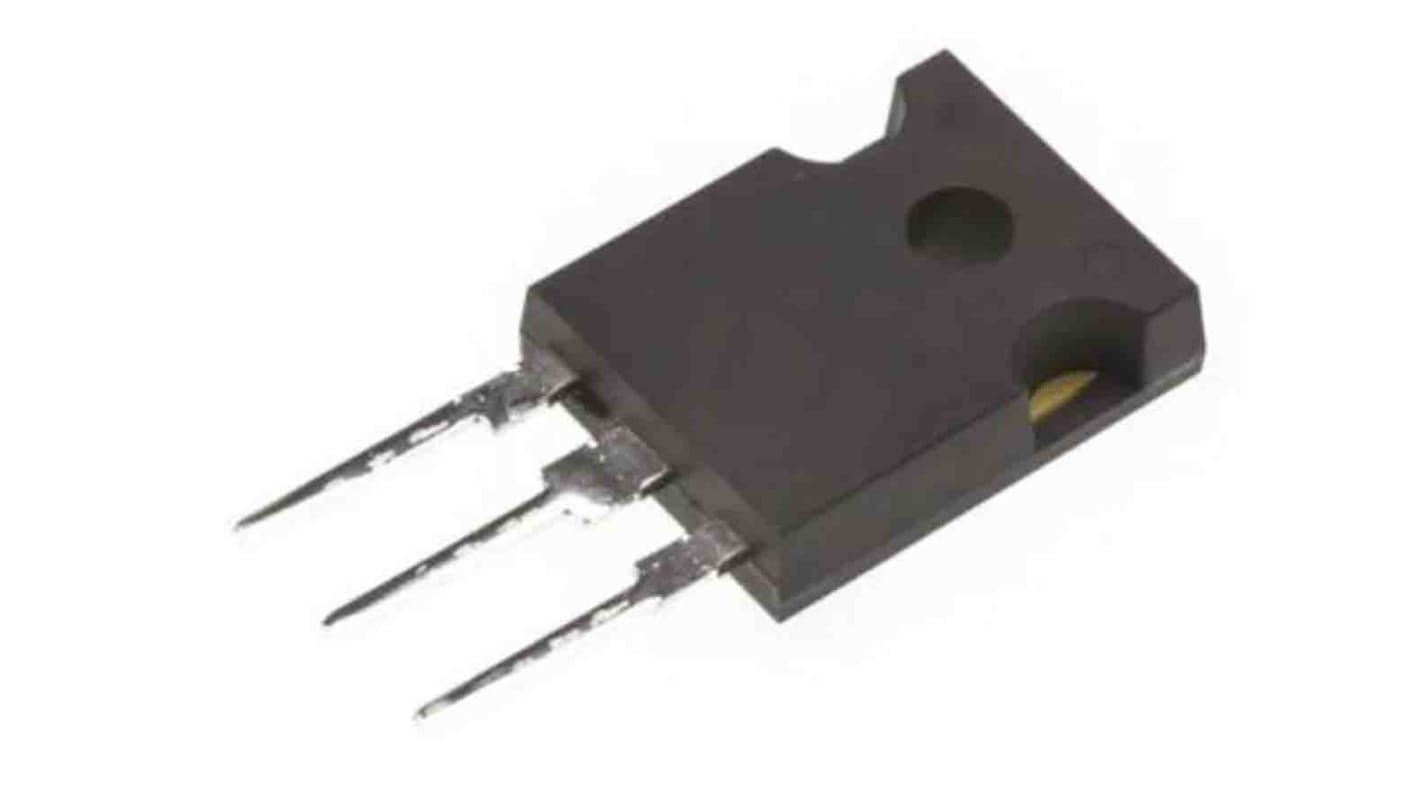

onsemi AFGHL50T65SQ IGBT, 50 A 650 V, 3-Pin TO-247
- RS Stock No.:
- 202-5672
- Mfr. Part No.:
- AFGHL50T65SQ
- Brand:
- onsemi
Available to back order for despatch 12/12/2024
Price Each (In a Tube of 450)
£1.80
(exc. VAT)
£2.16
(inc. VAT)
Units | Per unit | Per Tube* |
|---|---|---|
| 450 + | £1.80 | £810.00 |
*price indicative
- RS Stock No.:
- 202-5672
- Mfr. Part No.:
- AFGHL50T65SQ
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
Product Details
The ON Semiconductor Field Stop Trench IGBT offers the optimum performance for both hard and soft switching topology in automotive application. It is a stand-alone IGBT.
AEC-Q101 qualified
High current capability
Fast switching
Tight parameter distribution
RoHS compliant
High current capability
Fast switching
Tight parameter distribution
RoHS compliant
Specifications
Attribute | Value |
|---|---|
| Maximum Continuous Collector Current | 50 A |
| Maximum Collector Emitter Voltage | 650 V |
| Maximum Gate Emitter Voltage | ±30.0V |
| Maximum Power Dissipation | 268 W |
| Number of Transistors | 30 |
| Package Type | TO-247 |
| Channel Type | N |
| Pin Count | 3 |
| Transistor Configuration | Single |
