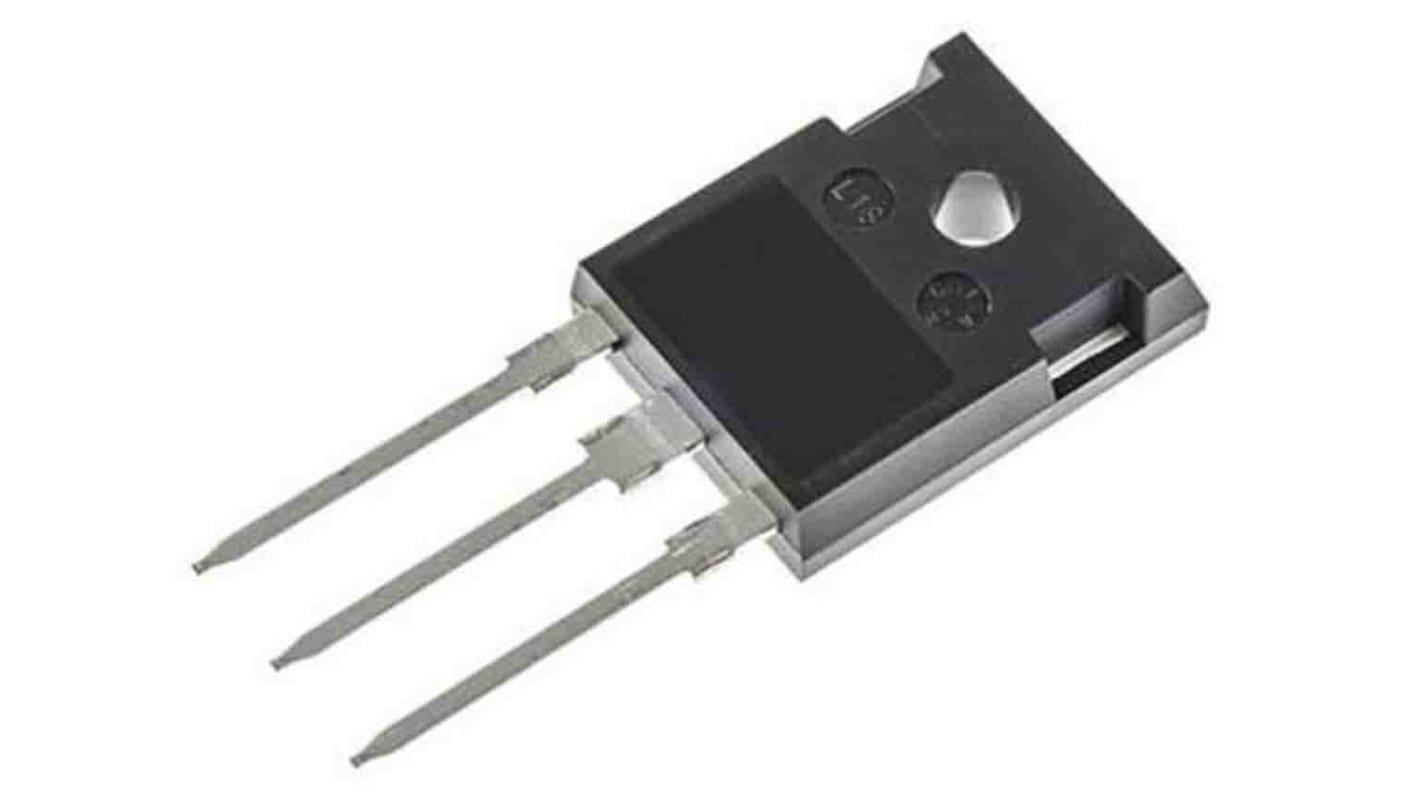

STMicroelectronics, Type N-Channel IGBT, 30 A 650 V, 3-Pin TO-247, Through Hole

View all IGBTs
Bulk discount available

Subtotal (1 tube of 30 units)*

£59.37

(exc. VAT)

£71.25

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
30 - 30£1.979£59.37
60 +£1.88£56.40

*price indicative

RS Stock No.:
202-5514
Mfr. Part No.:
STGWA30HP65FB
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Maximum Continuous Collector Current Ic

30A

Product Type

IGBT

Maximum Collector Emitter Voltage Vceo

650V

Maximum Power Dissipation Pd

260W

Package Type

TO-247

Mount Type

Through Hole

Channel Type

Type N

Pin Count

3

Switching Speed

1MHz

Maximum Gate Emitter Voltage VGEO

20 V

Maximum Collector Emitter Saturation Voltage VceSAT

2V

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

175°C

Series

STG

Standards/Approvals

RoHS

Width

21.1 mm

Length

15.9mm

Height

5.1mm

Automotive Standard

No

The STMicroelectronics high speed HB series IGBT developed using an advanced proprietary trench gate fieldstop structure. The device is part of the new HB series of IGBTs, which represents an optimum compromise between conduction and switching loss to maximize the efficiency of any frequency converter.

Low thermal resistance

Very fast soft recovery antiparallel diode
