Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	onsemi
	Product Type	Intelligent Power Module
	Maximum Continuous Collector Current Ic	20A
	Maximum Collector Emitter Voltage Vceo	1200V
	Maximum Power Dissipation Pd	125W
	Package Type	DIP
	Mount Type	Surface
	Channel Type	Type N
	Pin Count	39
	Switching Speed	20kHz
	Minimum Operating Temperature	-40°C
	Maximum Gate Emitter Voltage VGEO	15 V
	Maximum Collector Emitter Saturation Voltage VceSAT	2.5V
	Maximum Operating Temperature	150°C
	Standards/Approvals	UL
	Series	IPM
	Automotive Standard	No

	Select all
	Brand onsemi
	Product Type Intelligent Power Module
	Maximum Continuous Collector Current Ic 20A
	Maximum Collector Emitter Voltage Vceo 1200V
	Maximum Power Dissipation Pd 125W
	Package Type DIP
	Mount Type Surface
	Channel Type Type N
	Pin Count 39
	Switching Speed 20kHz
	Minimum Operating Temperature -40°C
	Maximum Gate Emitter Voltage VGEO 15 V
	Maximum Collector Emitter Saturation Voltage VceSAT 2.5V
	Maximum Operating Temperature 150°C
	Standards/Approvals UL
	Series IPM
	Automotive Standard No

Datasheet - NFAM2012L5BT

The ON Semiconductor NFAM2012L5BT is a fully-integrated inverter power module consisting of an independent high side gate driver, LVIC, six IGBT’s and a temperature sensor, suitable for driving permanent magnet synchronous (PMSM) motors, brushless DC (BLDC) motors and AC asynchronous motors.

Built-in under-voltage protection (UVP)

Integrated bootstrap diodes and resistors

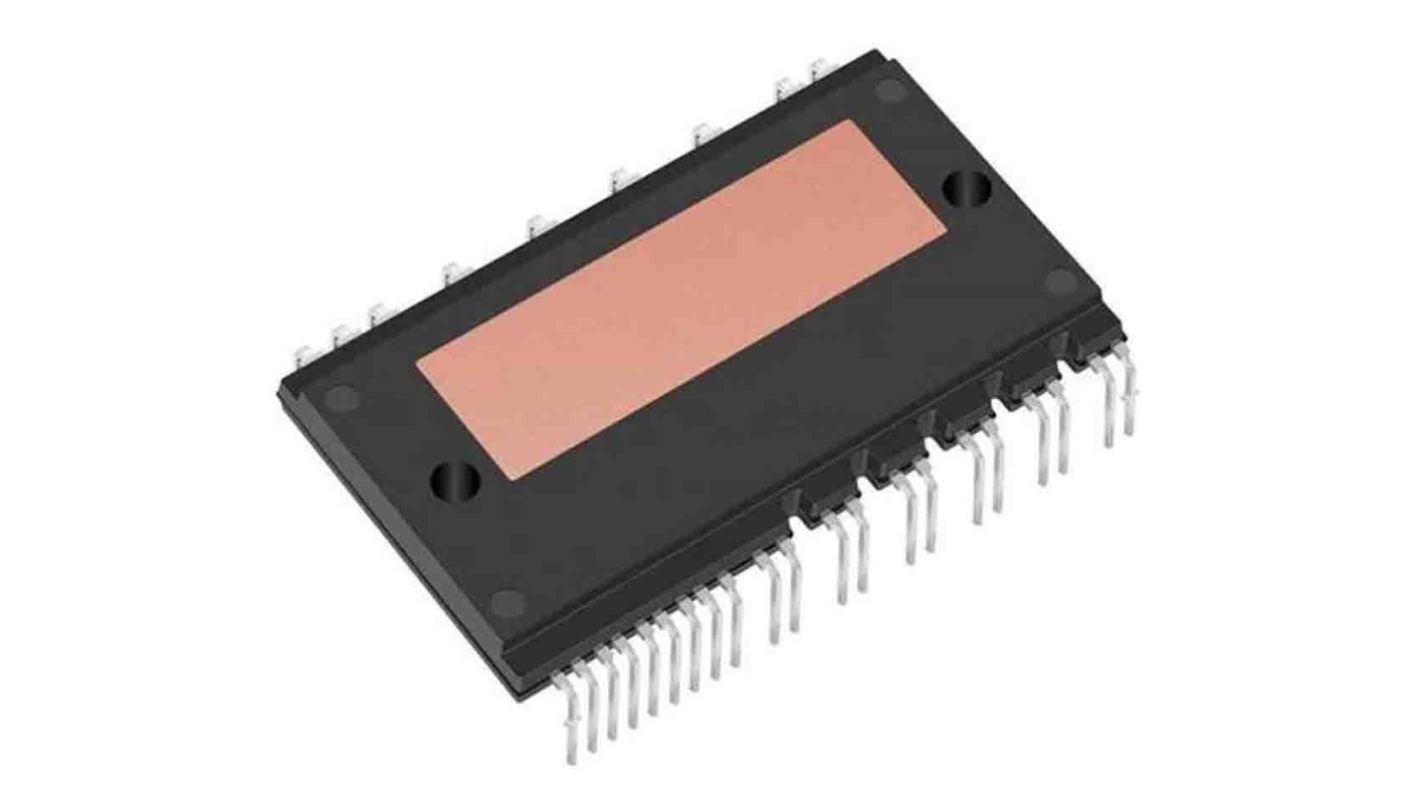

onsemi NFAM2012L5BT, Type N-Channel Intelligent Power Module, 20 A 1200 V, 39-Pin DIP, Surface
