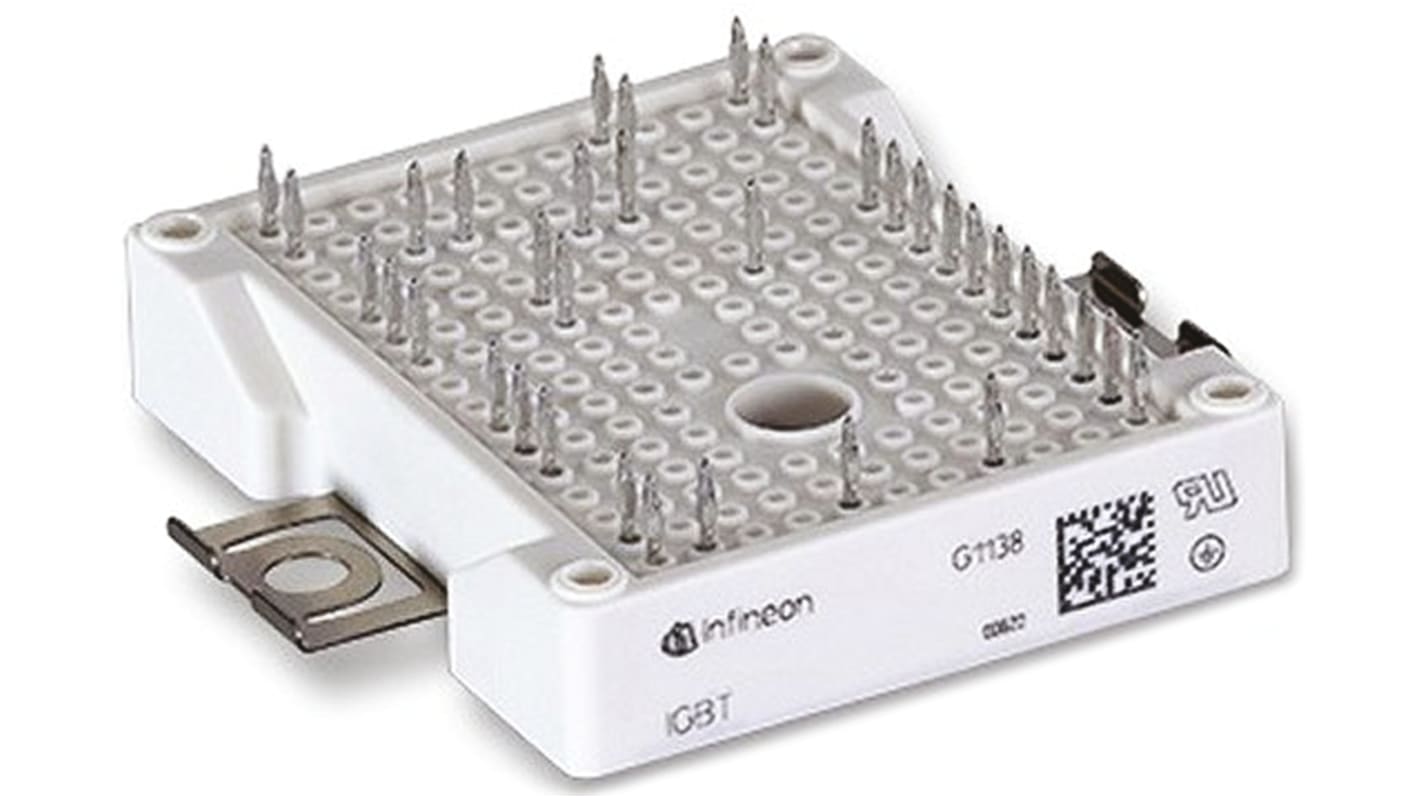

Infineon FP35R12W2T4B11BOMA1 3 Phase Bridge IGBT Module, 54 A 1200 V, 35-Pin EASY2B, PCB Mount
- RS Stock No.:
- 168-8771
- Mfr. Part No.:
- FP35R12W2T4B11BOMA1
- Brand:
- Infineon
Save 4% when you buy 30 units
Subtotal (1 box of 15 units)*
£711.00
(exc. VAT)
£853.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 15 unit(s) shipping from 05 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 15 - 15 | £47.40 | £711.00 |
| 30 + | £45.03 | £675.45 |
*price indicative
- RS Stock No.:
- 168-8771
- Mfr. Part No.:
- FP35R12W2T4B11BOMA1
- Brand:
- Infineon
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Collector Current | 54 A | |
| Maximum Collector Emitter Voltage | 1200 V | |
| Maximum Gate Emitter Voltage | ±20V | |
| Maximum Power Dissipation | 215 W | |
| Package Type | EASY2B | |
| Configuration | 3 Phase Bridge | |
| Mounting Type | PCB Mount | |
| Channel Type | N | |
| Pin Count | 35 | |
| Switching Speed | 1MHz | |
| Transistor Configuration | 3 Phase | |
| Dimensions | 56.7 x 48 x 12mm | |
| Maximum Operating Temperature | +150 °C | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current 54 A | ||
Maximum Collector Emitter Voltage 1200 V | ||
Maximum Gate Emitter Voltage ±20V | ||
Maximum Power Dissipation 215 W | ||
Package Type EASY2B | ||
Configuration 3 Phase Bridge | ||
Mounting Type PCB Mount | ||
Channel Type N | ||
Pin Count 35 | ||
Switching Speed 1MHz | ||
Transistor Configuration 3 Phase | ||
Dimensions 56.7 x 48 x 12mm | ||
Maximum Operating Temperature +150 °C | ||
Minimum Operating Temperature -40 °C | ||
