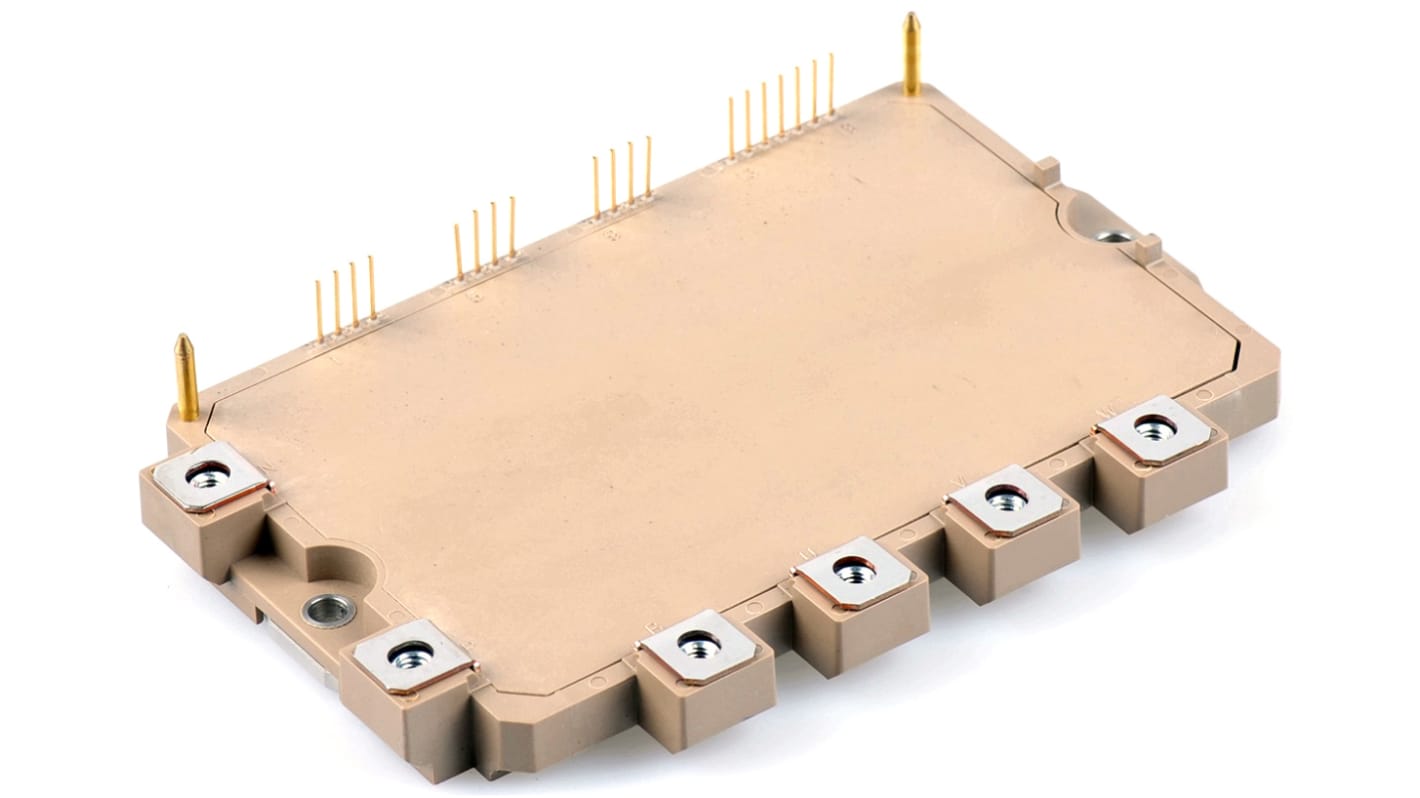

Fuji Electric 7MBP75VDA-060-50 3 Phase IGBT Module, 75 A 600 V, 25-Pin P 630, PCB Mount
- RS Stock No.:
- 168-4801
- Mfr. Part No.:
- 7MBP75VDA-060-50
- Brand:
- Fuji Electric
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 168-4801
- Mfr. Part No.:
- 7MBP75VDA-060-50
- Brand:
- Fuji Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fuji Electric | |
| Maximum Continuous Collector Current | 75 A | |
| Maximum Collector Emitter Voltage | 600 V | |
| Maximum Power Dissipation | 250 W | |
| Package Type | P 630 | |
| Configuration | 3 Phase | |
| Mounting Type | PCB Mount | |
| Channel Type | N | |
| Pin Count | 25 | |
| Switching Speed | 20kHz | |
| Transistor Configuration | 3 Phase | |
| Dimensions | 128.5 x 84 x 14mm | |
| Minimum Operating Temperature | -20 °C | |
| Maximum Operating Temperature | +110 °C | |
Select all | ||
|---|---|---|
Brand Fuji Electric | ||
Maximum Continuous Collector Current 75 A | ||
Maximum Collector Emitter Voltage 600 V | ||
Maximum Power Dissipation 250 W | ||
Package Type P 630 | ||
Configuration 3 Phase | ||
Mounting Type PCB Mount | ||
Channel Type N | ||
Pin Count 25 | ||
Switching Speed 20kHz | ||
Transistor Configuration 3 Phase | ||
Dimensions 128.5 x 84 x 14mm | ||
Minimum Operating Temperature -20 °C | ||
Maximum Operating Temperature +110 °C | ||
- COO (Country of Origin):
- JP
IPM (Intelligent Power Module) IGBT, V-Series, Fuji Electric
The Fuji Electric V-series Intelligent Power Modules (IPM) come equipped with drive, control and protection IGBT circuits. They are easy to implement in power control applications for AC servos, air conditioning equipment and elevators. Built-in protection functions optimize and increase the lifetime of IPM IGBTs thereby safeguarding high system reliability. The IPMs come equipped with protection against over-current, short circuit, control power voltage drop and over-heating, and include output alarm signals.
6MBP... Without Brake-Chopper
7MBP... With Brake-Chopper
7MBP... With Brake-Chopper
IGBT Discretes & Modules, Fuji Electric
The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.
