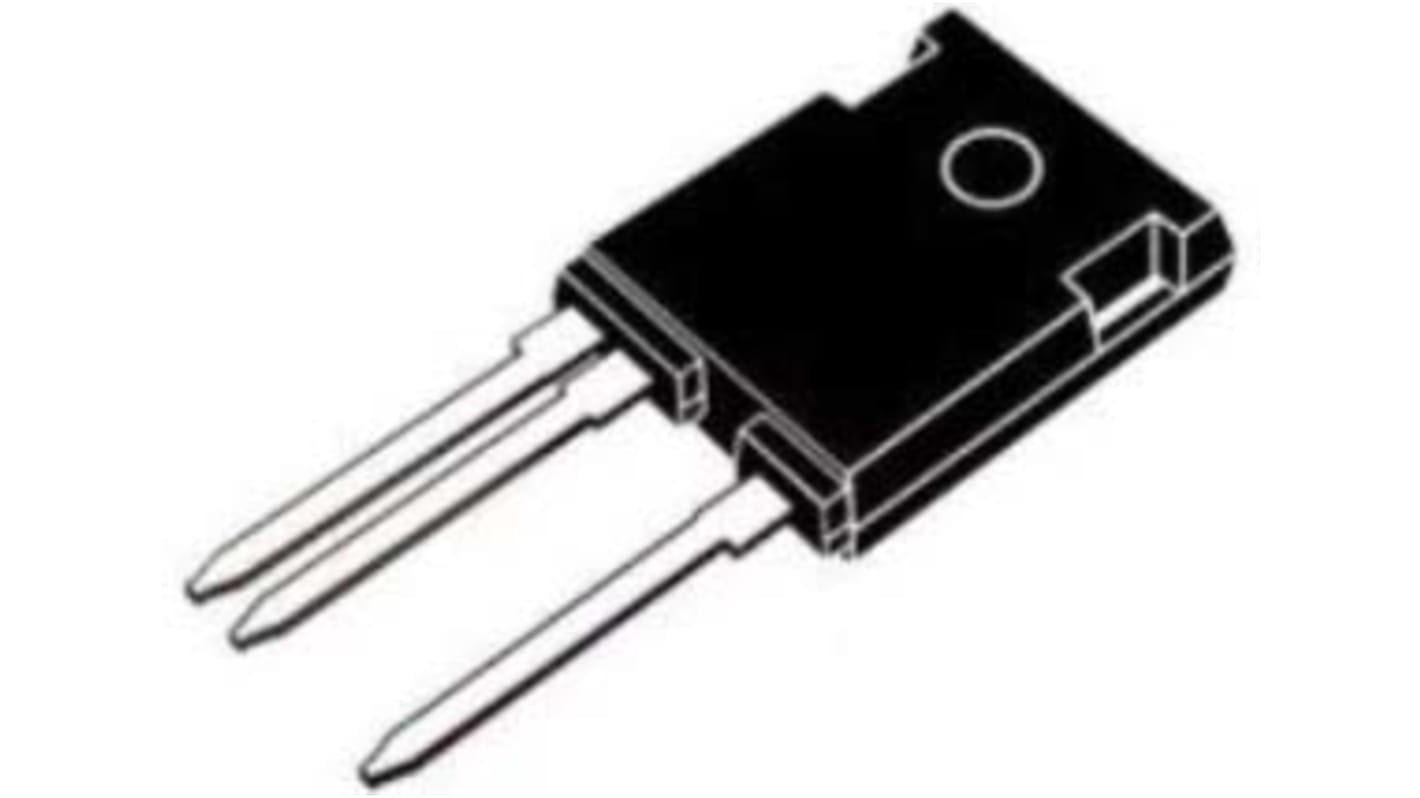

IXYS IXYX25N250CV1HV IGBT, 95 A 2500 V, 3-Pin PLUS247, Through Hole
- RS Stock No.:
- 146-4362
- Mfr. Part No.:
- IXYX25N250CV1HV
- Brand:
- IXYS
Bulk discount available
Subtotal (1 unit)*
£66.96
(exc. VAT)
£80.35
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 21 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £66.96 |
| 5 - 9 | £60.13 |
| 10 + | £58.66 |
*price indicative
- RS Stock No.:
- 146-4362
- Mfr. Part No.:
- IXYX25N250CV1HV
- Brand:
- IXYS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | IXYS | |
| Maximum Continuous Collector Current | 95 A | |
| Maximum Collector Emitter Voltage | 2500 V | |
| Maximum Gate Emitter Voltage | ±20 V, ±30V | |
| Number of Transistors | 1 | |
| Maximum Power Dissipation | 937 W | |
| Package Type | PLUS247 | |
| Mounting Type | Through Hole | |
| Pin Count | 3 | |
| Transistor Configuration | Single | |
| Dimensions | 16.13 x 5.21 x 21.34mm | |
| Minimum Operating Temperature | -55 °C | |
| Maximum Operating Temperature | +175 °C | |
Select all | ||
|---|---|---|
Brand IXYS | ||
Maximum Continuous Collector Current 95 A | ||
Maximum Collector Emitter Voltage 2500 V | ||
Maximum Gate Emitter Voltage ±20 V, ±30V | ||
Number of Transistors 1 | ||
Maximum Power Dissipation 937 W | ||
Package Type PLUS247 | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Transistor Configuration Single | ||
Dimensions 16.13 x 5.21 x 21.34mm | ||
Minimum Operating Temperature -55 °C | ||
Maximum Operating Temperature +175 °C | ||
Thin wafer XPT™ technology
Low on-state voltages VCE(sat)
Co-packed fast recovery diodes
Positive temperature coefficient of VCE(sat)
International standard size high-voltage packages
Higher efficiency
Elimination of multiple series-connected devices
Increased reliability of power systems
Pulser circuits
Laser and X-ray generators
High-voltage power supplies
High-voltage test equipment
Capacitor discharge circuits
AC switches
Low on-state voltages VCE(sat)
Co-packed fast recovery diodes
Positive temperature coefficient of VCE(sat)
International standard size high-voltage packages
Higher efficiency
Elimination of multiple series-connected devices
Increased reliability of power systems
Pulser circuits
Laser and X-ray generators
High-voltage power supplies
High-voltage test equipment
Capacitor discharge circuits
AC switches
