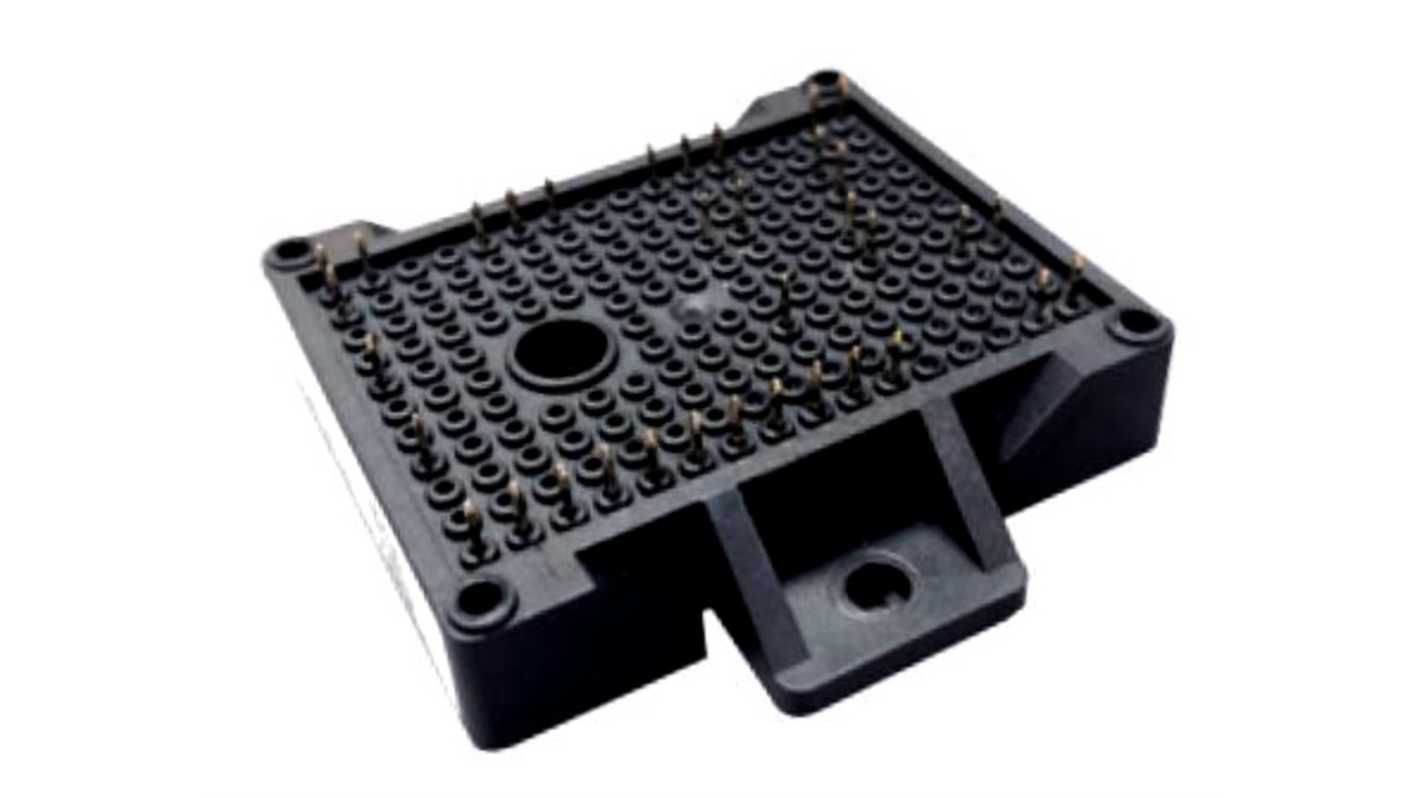

Starpower GD150MLX65L3S IGBT, 150 A 650 V, Panel

View all IGBTs

Subtotal (1 box of 16 units)*

£829.024

(exc. VAT)

£994.832

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,984 unit(s) shipping from 22 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
16 +£51.814£829.02

*price indicative

RS Stock No.:
433-241
Mfr. Part No.:
GD150MLX65L3S
Brand:
Starpower
Find similar products by selecting one or more attributes.
Select all

Brand

Starpower

Maximum Continuous Collector Current

150 A

Maximum Collector Emitter Voltage

650 V

Maximum Gate Emitter Voltage

20V

Maximum Power Dissipation

600 W

Mounting Type

Panel

Channel Type

N

COO (Country of Origin):
CN
The Starpower IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as 3-level-application.

Low switching loss
6μs short circuit capability
VCE(sat) with positive temperature coefficient
Fast and soft reverse recovery anti parallel FWD
Low inductance case
