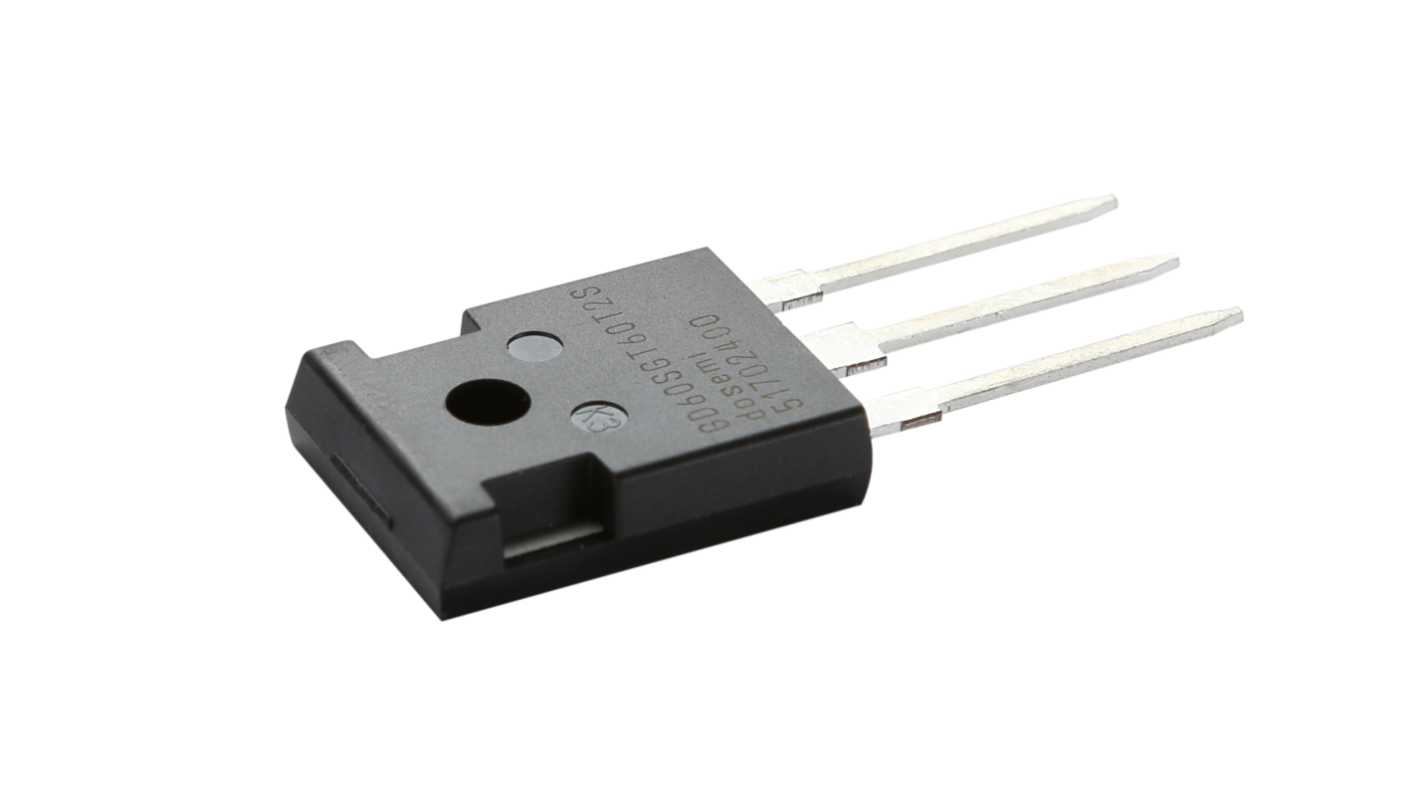

Starpower DG15X12T2 Single IGBT, 15 A 1200 V, 3-Pin TO-247, Through Hole
- RS Stock No.:
- 427-741
- Mfr. Part No.:
- DG15X12T2
- Brand:
- Starpower
Bulk discount available
Subtotal (1 pack of 2 units)*
£3.79
(exc. VAT)
£4.548
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Pack* |
---|---|---|
2 - 18 | £1.895 | £3.79 |
20 - 198 | £1.705 | £3.41 |
200 - 998 | £1.575 | £3.15 |
1000 - 1998 | £1.465 | £2.93 |
2000 + | £1.225 | £2.45 |
*price indicative
- RS Stock No.:
- 427-741
- Mfr. Part No.:
- DG15X12T2
- Brand:
- Starpower
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Starpower | |
Maximum Continuous Collector Current | 15 A | |
Maximum Collector Emitter Voltage | 1200 V | |
Maximum Gate Emitter Voltage | ±20V | |
Number of Transistors | 1 | |
Maximum Power Dissipation | 138 W | |
Configuration | Single | |
Package Type | TO-247 | |
Mounting Type | Through Hole | |
Channel Type | N | |
Pin Count | 3 | |
Select all | ||
---|---|---|
Brand Starpower | ||
Maximum Continuous Collector Current 15 A | ||
Maximum Collector Emitter Voltage 1200 V | ||
Maximum Gate Emitter Voltage ±20V | ||
Number of Transistors 1 | ||
Maximum Power Dissipation 138 W | ||
Configuration Single | ||
Package Type TO-247 | ||
Mounting Type Through Hole | ||
Channel Type N | ||
Pin Count 3 | ||
- COO (Country of Origin):
- CN
The Starpower IGBT Power Discrete provides ultralow conduction loss as well as low switching loss. They are designed for the applications such as general inverters and UPS.
Low switching loss
Maximum junction temperature 175°C
Low inductance case
VCE(sat) with positive temperature coefficient
Fast and soft reverse recovery anti parallel FWD
Lead free package
Maximum junction temperature 175°C
Low inductance case
VCE(sat) with positive temperature coefficient
Fast and soft reverse recovery anti parallel FWD
Lead free package
