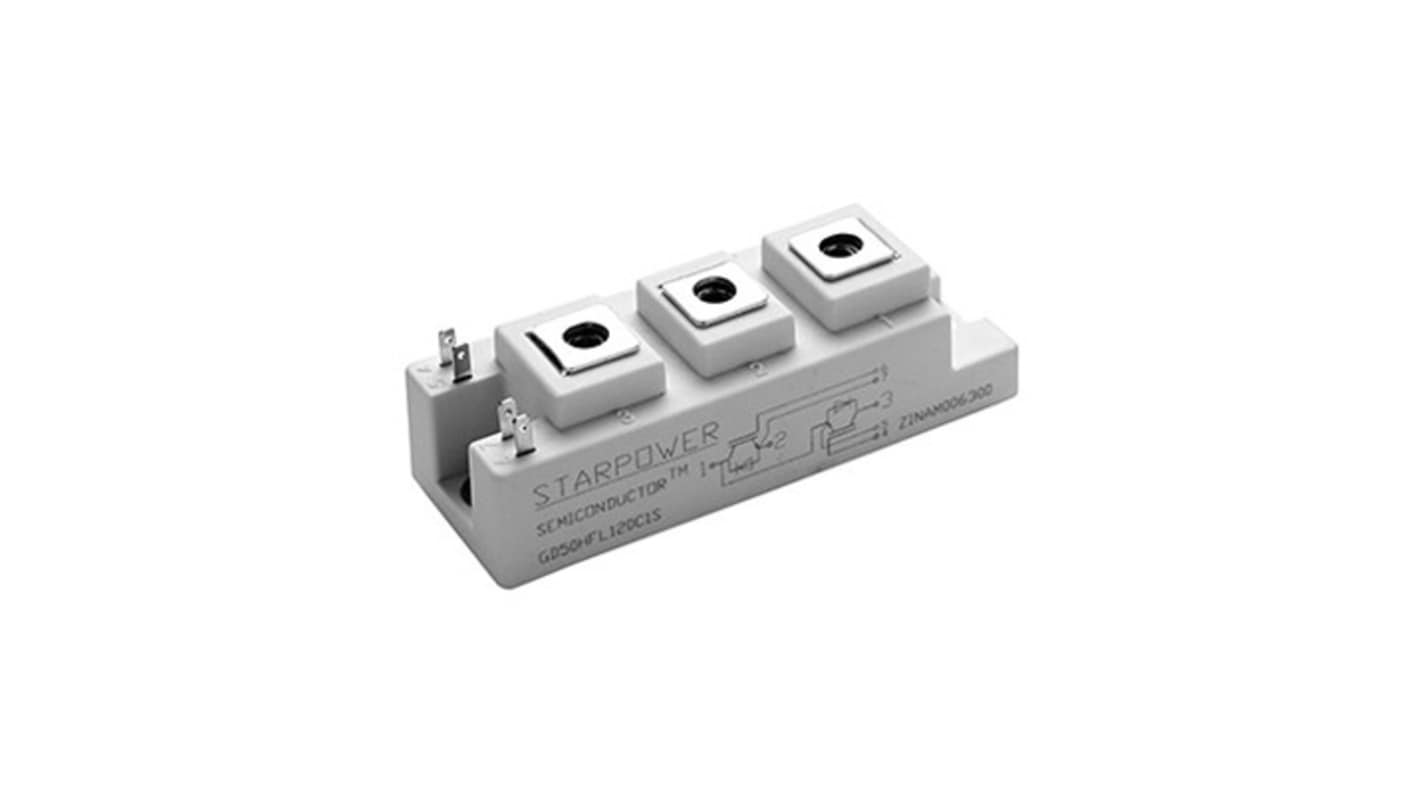

Starpower GD100HFX65C1S Dual IGBT, 100 A 650 V, 7-Pin Module, Screw Mount
- RS Stock No.:
- 427-729
- Mfr. Part No.:
- GD100HFX65C1S
- Brand:
- Starpower
Bulk discount available
Subtotal (1 unit)*
£36.40
(exc. VAT)
£43.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 24 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £36.40 |
10 - 99 | £32.76 |
100 + | £30.21 |
*price indicative
- RS Stock No.:
- 427-729
- Mfr. Part No.:
- GD100HFX65C1S
- Brand:
- Starpower
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Starpower | |
Maximum Continuous Collector Current | 100 A | |
Maximum Collector Emitter Voltage | 650 V | |
Maximum Gate Emitter Voltage | ±20V | |
Number of Transistors | 2 | |
Maximum Power Dissipation | 319 W | |
Package Type | Module | |
Configuration | Dual | |
Mounting Type | Screw Mount | |
Channel Type | N | |
Pin Count | 7 | |
Select all | ||
---|---|---|
Brand Starpower | ||
Maximum Continuous Collector Current 100 A | ||
Maximum Collector Emitter Voltage 650 V | ||
Maximum Gate Emitter Voltage ±20V | ||
Number of Transistors 2 | ||
Maximum Power Dissipation 319 W | ||
Package Type Module | ||
Configuration Dual | ||
Mounting Type Screw Mount | ||
Channel Type N | ||
Pin Count 7 | ||
- COO (Country of Origin):
- CN
The Starpower IGBT Power Module provides ultralow conduction loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS.
VCE(sat) with positive temperature coefficient
Maximum junction temperature 175°C
Low inductance case
Fast and soft reverse recovery anti parallel FWD
Isolated copper baseplate using DBC technology
Maximum junction temperature 175°C
Low inductance case
Fast and soft reverse recovery anti parallel FWD
Isolated copper baseplate using DBC technology
