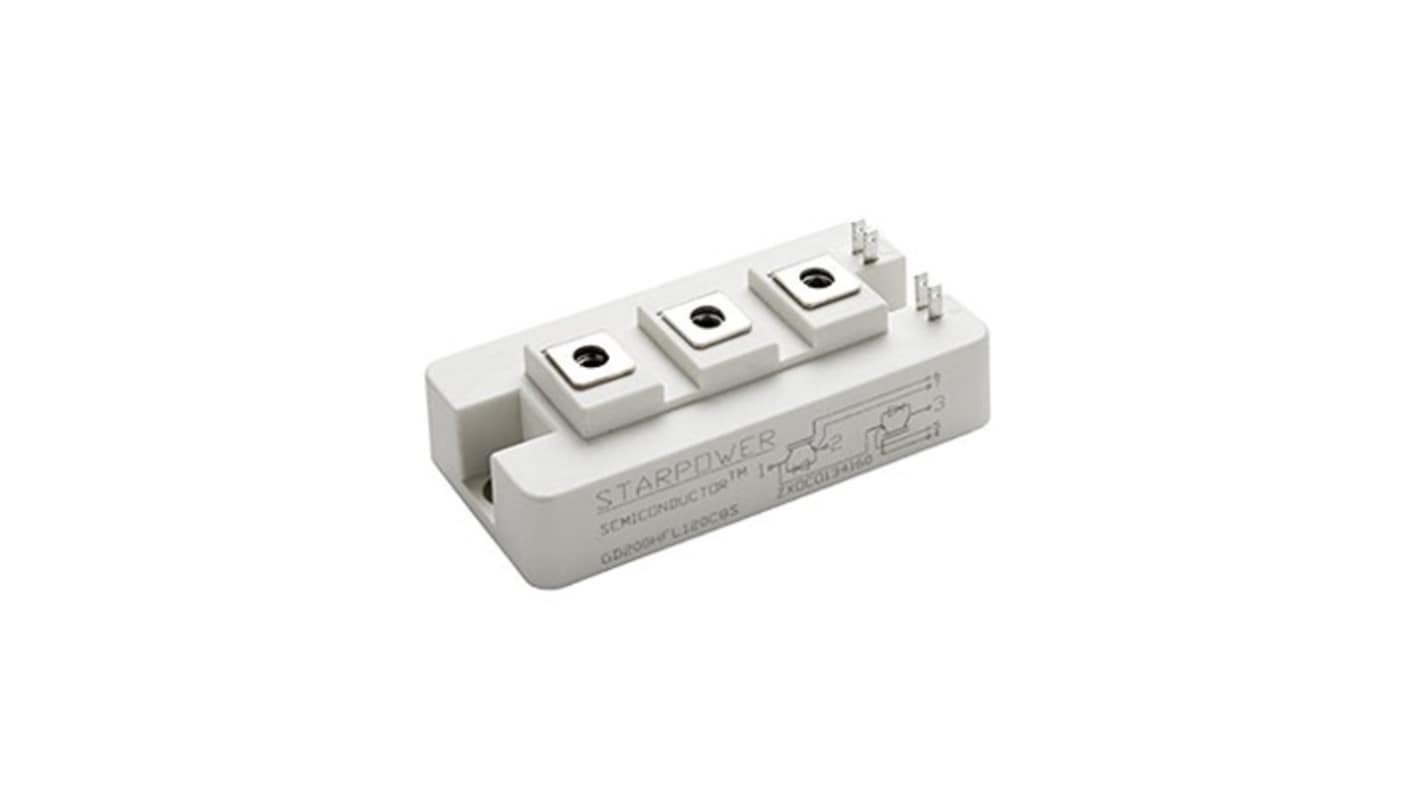

Starpower GD150HFY120C8S, N-Channel Dual IGBT Module, 291 A 1200 V, 7-Pin Module
- RS Stock No.:
- 427-719
- Mfr. Part No.:
- GD150HFY120C8S
- Brand:
- Starpower
Bulk discount available
Subtotal (1 unit)*
£60.65
(exc. VAT)
£72.78
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 16 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £60.65 |
| 10 + | £54.58 |
*price indicative
- RS Stock No.:
- 427-719
- Mfr. Part No.:
- GD150HFY120C8S
- Brand:
- Starpower
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Starpower | |
| Product Type | IGBT Module | |
| Maximum Continuous Collector Current Ic | 291A | |
| Maximum Collector Emitter Voltage Vceo | 1200V | |
| Number of Transistors | 2 | |
| Maximum Power Dissipation Pd | 1102W | |
| Package Type | Module | |
| Configuration | Dual | |
| Channel Type | N | |
| Pin Count | 7 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Gate Emitter Voltage VGEO | ±20 V | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.15V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Starpower | ||
Product Type IGBT Module | ||
Maximum Continuous Collector Current Ic 291A | ||
Maximum Collector Emitter Voltage Vceo 1200V | ||
Number of Transistors 2 | ||
Maximum Power Dissipation Pd 1102W | ||
Package Type Module | ||
Configuration Dual | ||
Channel Type N | ||
Pin Count 7 | ||
Minimum Operating Temperature -40°C | ||
Maximum Gate Emitter Voltage VGEO ±20 V | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2.15V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Starpower IGBT Power Module provides ultralow conduction loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS.
Low switching loss
10μs short circuit capability
Low inductance case
VCE(sat) with positive temperature coefficient
Fast and soft reverse recovery anti parallel FWD
Isolated copper baseplate using DBC technology
