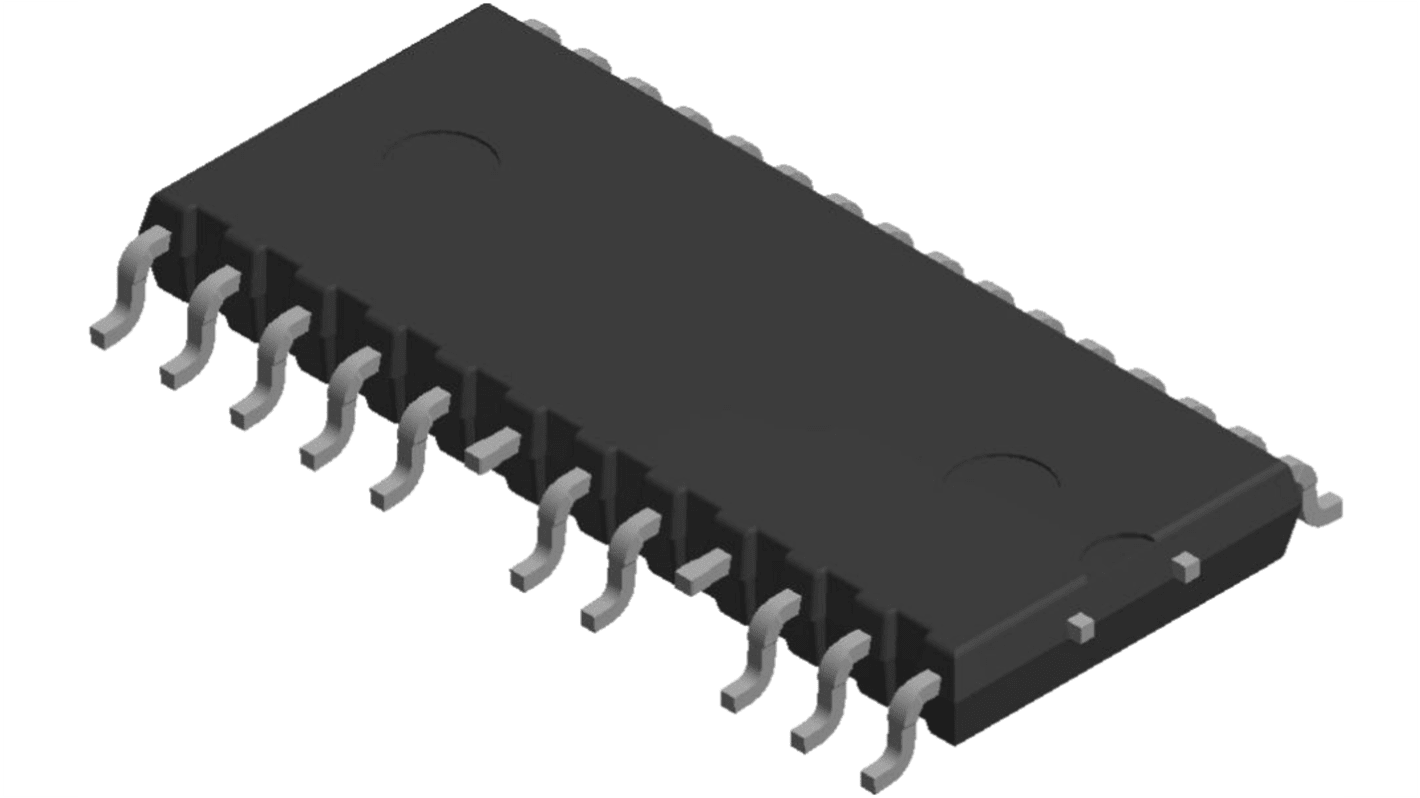

STMicroelectronics STGIPNS4C60T-H IGBT, 5 A 600 V, 26-Pin NSDIP-26L, Surface Mount
- RS Stock No.:
- 328-662
- Mfr. Part No.:
- STGIPNS4C60T-H
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 unit)*
£5.86
(exc. VAT)
£7.03
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 300 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £5.86 |
10 - 99 | £5.27 |
100 - 499 | £4.86 |
500 - 999 | £4.51 |
1000 + | £4.04 |
*price indicative
- RS Stock No.:
- 328-662
- Mfr. Part No.:
- STGIPNS4C60T-H
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Maximum Continuous Collector Current | 5 A | |
Maximum Collector Emitter Voltage | 600 V | |
Number of Transistors | 6 | |
Maximum Power Dissipation | 9 W | |
Package Type | NSDIP-26L | |
Mounting Type | Surface Mount | |
Pin Count | 26 | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Maximum Continuous Collector Current 5 A | ||
Maximum Collector Emitter Voltage 600 V | ||
Number of Transistors 6 | ||
Maximum Power Dissipation 9 W | ||
Package Type NSDIP-26L | ||
Mounting Type Surface Mount | ||
Pin Count 26 | ||
- COO (Country of Origin):
- CN
The STMicroelectronics SLLIMM (small low-loss intelligent molded module) Nano provides a compact, high-performance AC motor drive in a simple, rugged design. It is composed of six IGBTs and three half-bridge HVICs for gate driving, providing low electromagnetic interference (EMI) characteristics with optimized switching speed. The package is optimized for thermal performance and compactness in built-in motor applications, or other low power applications where assembly space is limited. This IPM includes an operational amplifier, completely uncommitted, and a comparator that can be used to design a fast and efficient protection circuit.
Internal bootstrap diode
Interlocking function
Shutdown function
Comparator for fault protection against overcurrent
Op amp for advanced current sensing
Optimized pinout for easy board layout
NTC for temperature control UL 1434 CA 2 and 4
Interlocking function
Shutdown function
Comparator for fault protection against overcurrent
Op amp for advanced current sensing
Optimized pinout for easy board layout
NTC for temperature control UL 1434 CA 2 and 4
