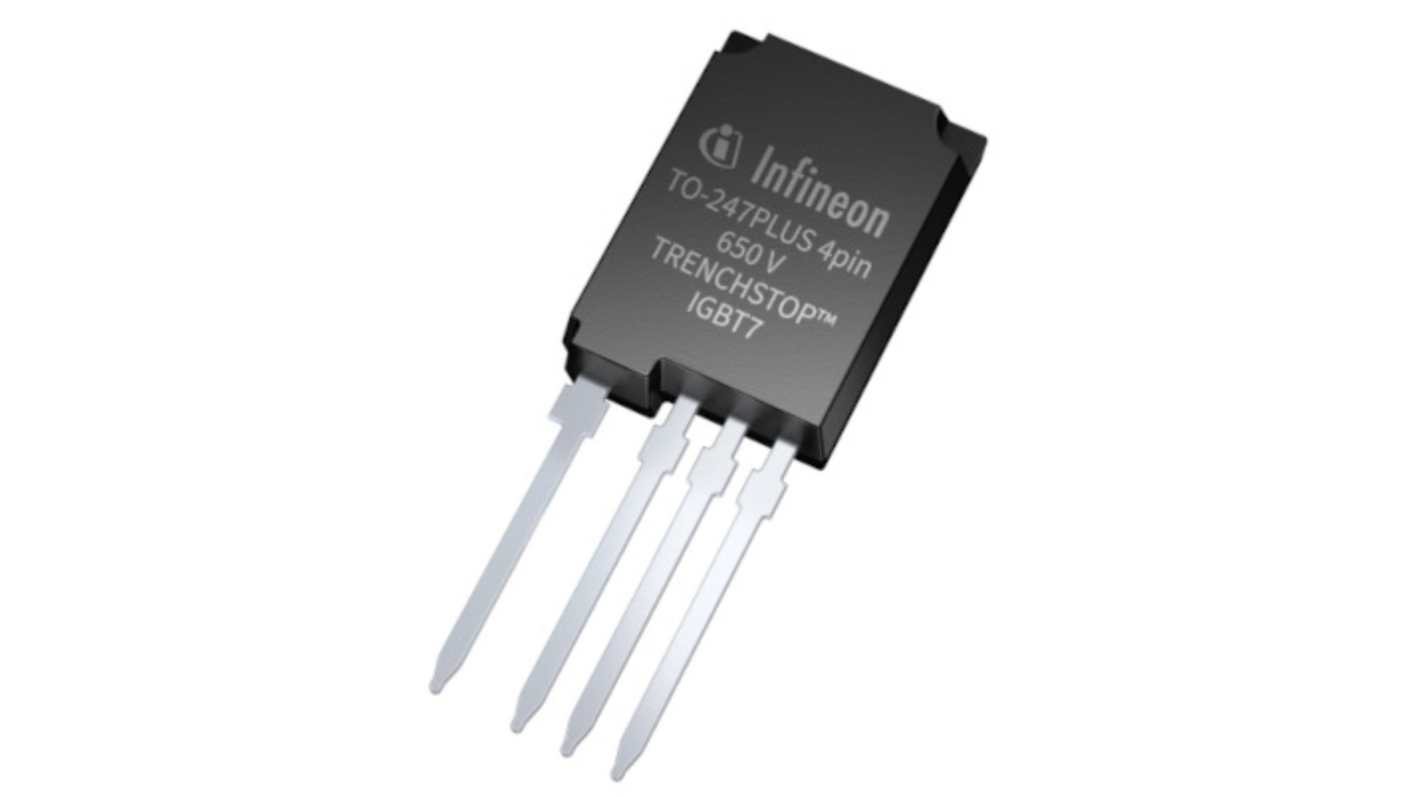

Infineon IKY120N65EH7XKSA1 Single Collector, Single Emitter, Single Gate IGBT, 160 A 650 V, 4-Pin
- RS Stock No.:
- 285-017
- Mfr. Part No.:
- IKY120N65EH7XKSA1
- Brand:
- Infineon
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 285-017
- Mfr. Part No.:
- IKY120N65EH7XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Maximum Continuous Collector Current | 160 A | |
Maximum Collector Emitter Voltage | 650 V | |
Maximum Gate Emitter Voltage | ±20V | |
Number of Transistors | 1 | |
Maximum Power Dissipation | 498 W | |
Package Type | PG-TO247-4-PLUS-NN5.1 | |
Configuration | Single Collector, Single Emitter, Single Gate | |
Mounting Type | Through Hole | |
Channel Type | N | |
Pin Count | 4 | |
Select all | ||
---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current 160 A | ||
Maximum Collector Emitter Voltage 650 V | ||
Maximum Gate Emitter Voltage ±20V | ||
Number of Transistors 1 | ||
Maximum Power Dissipation 498 W | ||
Package Type PG-TO247-4-PLUS-NN5.1 | ||
Configuration Single Collector, Single Emitter, Single Gate | ||
Mounting Type Through Hole | ||
Channel Type N | ||
Pin Count 4 | ||
The Infineon IGBT exemplifies cutting edge technology with its 650 V trench stop IGBT7 features, designed for high efficiency and minimal switching losses. This device is engineered for robust performance in a variety of applications, including industrial UPS systems and electric vehicle charging. Its unique construction ensures low collector emitter saturation voltage, facilitating smooth switching behaviour while maintaining reliability under demanding conditions.
High speed operation enhances system responsiveness
Low switching losses improve energy efficiency
Humidity robustness ensures reliable performance
Optimized for hard switching applications for versatility
Comprehensive product spectrum fits diverse needs
Soft recovery diode minimizes electrical stress
Low switching losses improve energy efficiency
Humidity robustness ensures reliable performance
Optimized for hard switching applications for versatility
Comprehensive product spectrum fits diverse needs
Soft recovery diode minimizes electrical stress
