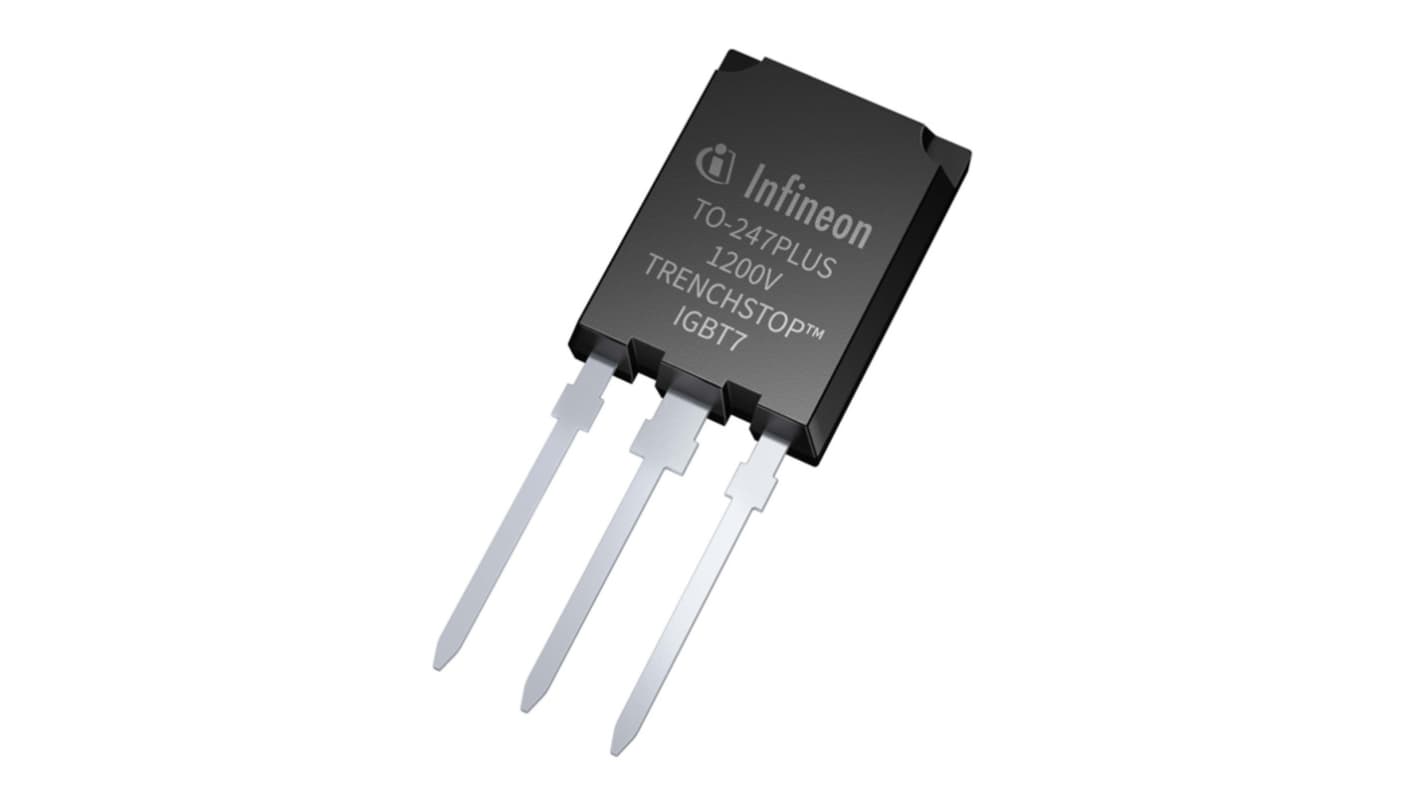

Infineon IGQ100N120S7XKSA1 Single Collector, Single Emitter, Single Gate IGBT, 100 A 1200 V, 3-Pin PG-TO247-3-PLUS-N,
- RS Stock No.:
- 284-975
- Mfr. Part No.:
- IGQ100N120S7XKSA1
- Brand:
- Infineon
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 284-975
- Mfr. Part No.:
- IGQ100N120S7XKSA1
- Brand:
- Infineon
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Collector Current | 100 A | |
| Maximum Collector Emitter Voltage | 1200 V | |
| Maximum Gate Emitter Voltage | ±20V | |
| Number of Transistors | 1 | |
| Maximum Power Dissipation | 824 W | |
| Configuration | Single Collector, Single Emitter, Single Gate | |
| Package Type | PG-TO247-3-PLUS-N | |
| Mounting Type | Through Hole | |
| Channel Type | N | |
| Pin Count | 3 | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current 100 A | ||
Maximum Collector Emitter Voltage 1200 V | ||
Maximum Gate Emitter Voltage ±20V | ||
Number of Transistors 1 | ||
Maximum Power Dissipation 824 W | ||
Configuration Single Collector, Single Emitter, Single Gate | ||
Package Type PG-TO247-3-PLUS-N | ||
Mounting Type Through Hole | ||
Channel Type N | ||
Pin Count 3 | ||
