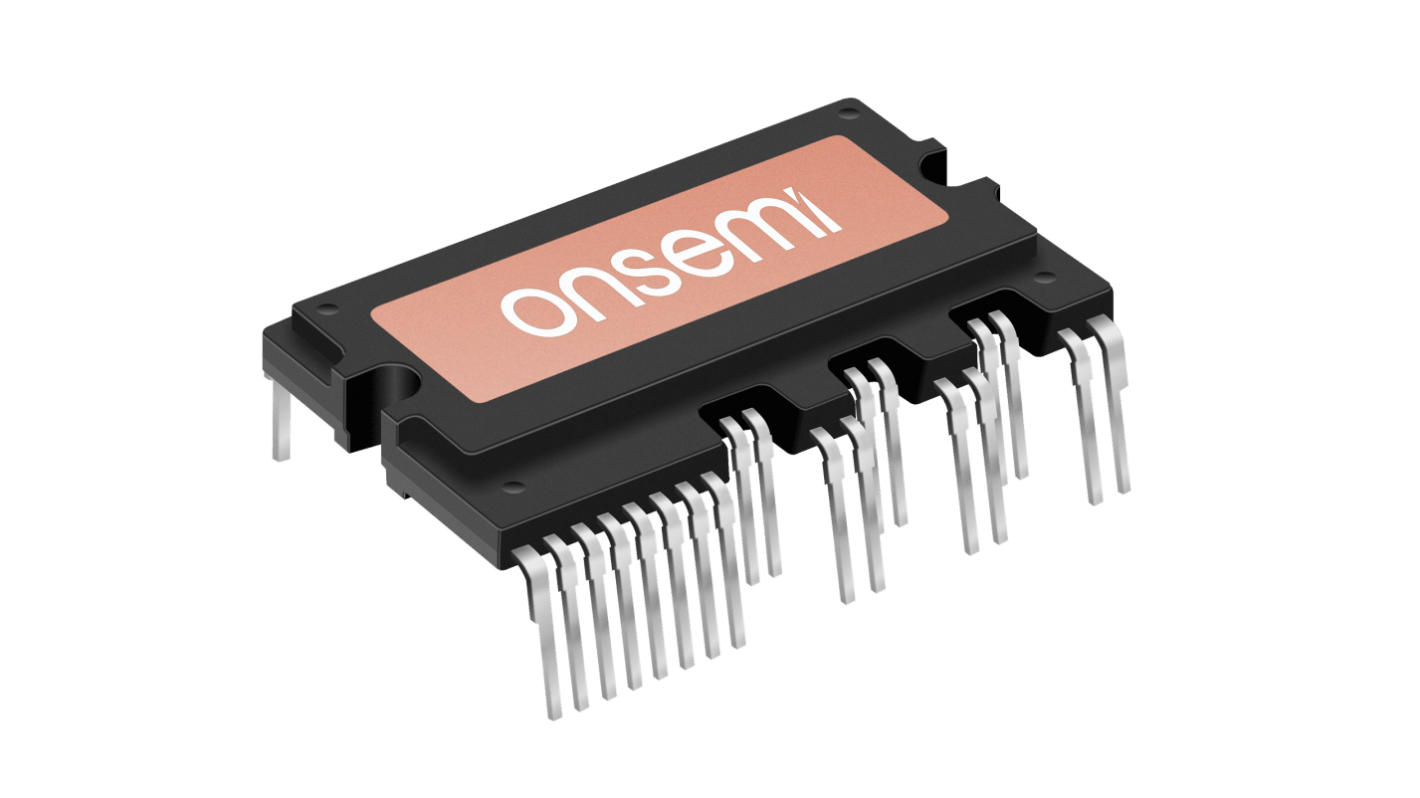

onsemi NFA33012L72 3 Phase IGBT, 30 A 1200 V, 27-Pin SPM27-CA, Through Hole
- RS Stock No.:
- 277-037
- Mfr. Part No.:
- NFA33012L72
- Brand:
- onsemi
Bulk discount available
Subtotal (1 unit)*
£27.49
(exc. VAT)
£32.99
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 60 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £27.49 |
10 - 99 | £24.75 |
100 + | £22.82 |
*price indicative
- RS Stock No.:
- 277-037
- Mfr. Part No.:
- NFA33012L72
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | onsemi | |
Maximum Continuous Collector Current | 30 A | |
Maximum Collector Emitter Voltage | 1200 V | |
Number of Transistors | 6 | |
Maximum Power Dissipation | 357 W | |
Configuration | 3 Phase | |
Package Type | SPM27-CA | |
Mounting Type | Through Hole | |
Channel Type | N | |
Pin Count | 27 | |
Select all | ||
---|---|---|
Brand onsemi | ||
Maximum Continuous Collector Current 30 A | ||
Maximum Collector Emitter Voltage 1200 V | ||
Number of Transistors 6 | ||
Maximum Power Dissipation 357 W | ||
Configuration 3 Phase | ||
Package Type SPM27-CA | ||
Mounting Type Through Hole | ||
Channel Type N | ||
Pin Count 27 | ||
- COO (Country of Origin):
- CN
The ON Semiconductor Intelligent Power Module is a high-performance inverter output stage designed for AC induction, BLDC, and PMSM motors. It integrates optimized gate drive for built-in IGBTs, reducing EMI and losses. The module also includes multiple protection features such as under-voltage lockout, over-current shutdown, thermal monitoring, and fault reporting, ensuring reliable operation.
Built in under voltage protection
Separated open emitter pins from low side IGBTs for three phase current sensing
LVIC temperature sensing built in for temperature monitoring
Separated open emitter pins from low side IGBTs for three phase current sensing
LVIC temperature sensing built in for temperature monitoring
