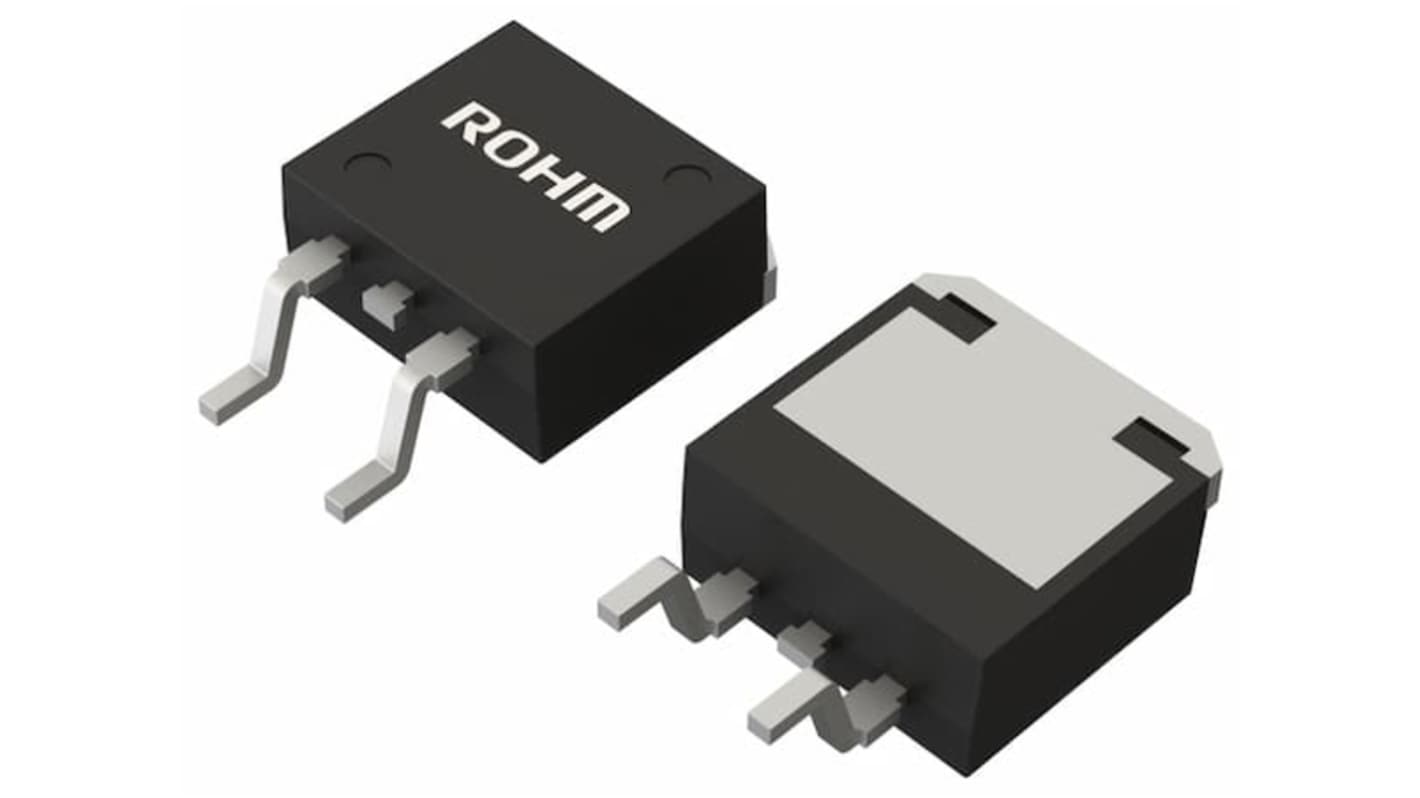

ROHM RGS40NL65HRBTL, Field Stop Trench-Channel IGBT, 20 A 650 V, 3-Pin TO-263L, Surface
- RS Stock No.:
- 264-432
- Mfr. Part No.:
- RGS40NL65HRBTL
- Brand:
- ROHM
Bulk discount available
Subtotal (1 tape of 5 units)*
£18.15
(exc. VAT)
£21.80
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 1,000 unit(s), ready to ship
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £3.63 | £18.15 |
| 50 - 95 | £3.448 | £17.24 |
| 100 + | £3.194 | £15.97 |
*price indicative
- RS Stock No.:
- 264-432
- Mfr. Part No.:
- RGS40NL65HRBTL
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Maximum Continuous Collector Current Ic | 20A | |
| Product Type | IGBT | |
| Maximum Collector Emitter Voltage Vceo | 650V | |
| Maximum Power Dissipation Pd | 177W | |
| Package Type | TO-263L | |
| Mount Type | Surface | |
| Channel Type | Field Stop Trench | |
| Pin Count | 3 | |
| Switching Speed | 8μs | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.1V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Emitter Voltage VGEO | ±30 V | |
| Maximum Operating Temperature | 175°C | |
| Series | RGS40NL65 | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Maximum Continuous Collector Current Ic 20A | ||
Product Type IGBT | ||
Maximum Collector Emitter Voltage Vceo 650V | ||
Maximum Power Dissipation Pd 177W | ||
Package Type TO-263L | ||
Mount Type Surface | ||
Channel Type Field Stop Trench | ||
Pin Count 3 | ||
Switching Speed 8μs | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2.1V | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Emitter Voltage VGEO ±30 V | ||
Maximum Operating Temperature 175°C | ||
Series RGS40NL65 | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q101 | ||
The ROHM 8μs Short-Circuit Tolerance with a 650V voltage rating and 20A current capacity and it is suitable for general inverter for automotive and industrial use. This product complies AEC-Q101 qualification.
Low Collector-Emitter Saturation Voltage
Short Circuit Withstand Time 8μs
Pb-free Lead Plating and RoHS Compliant
