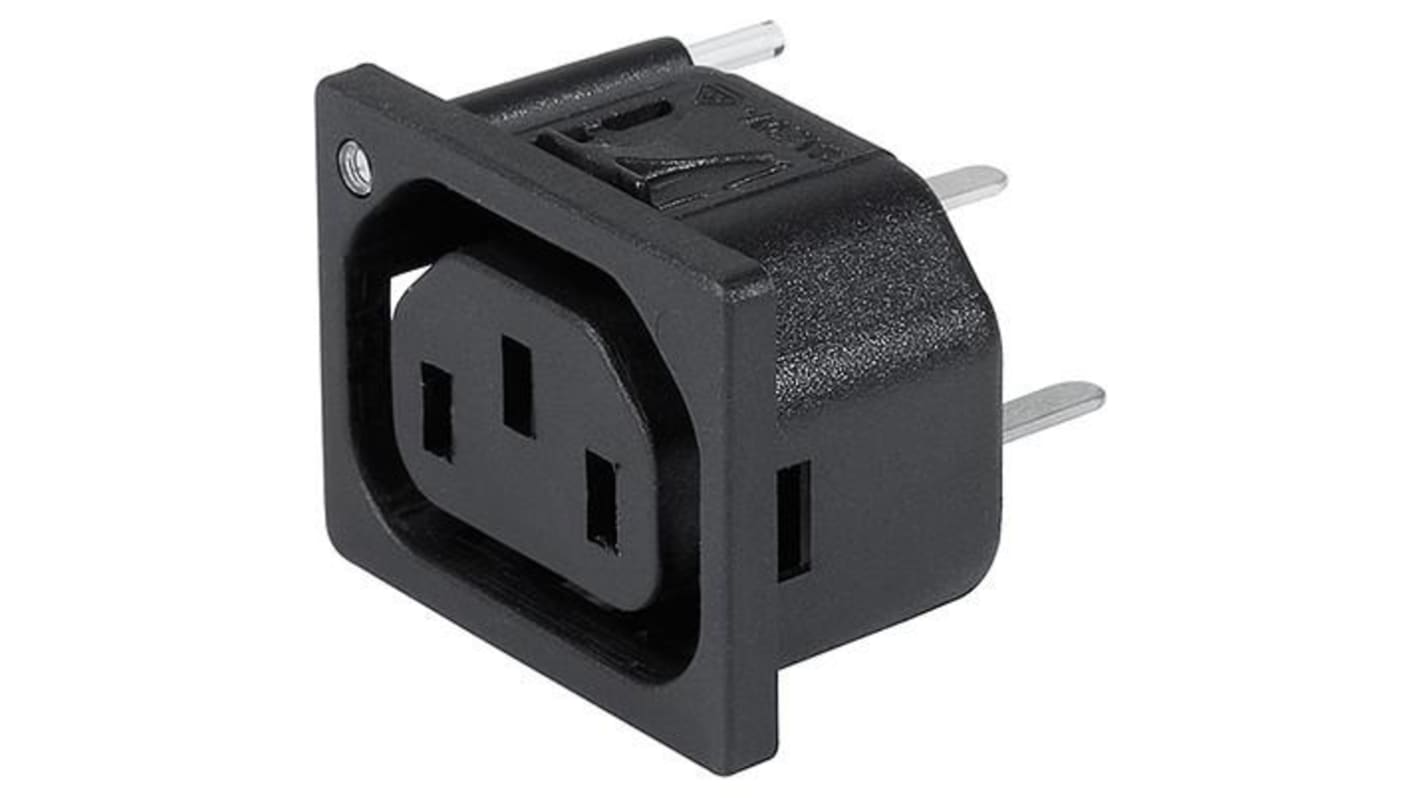

Schurter Snap-In IEC Connector Socket, 10A, 250 V
- RS Stock No.:
- 174-5365
- Mfr. Part No.:
- 3-100-403
- Brand:
- Schurter
Subtotal (1 box of 50 units)*
£97.95
(exc. VAT)
£117.55
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
50 + | £1.959 | £97.95 |
*price indicative
- RS Stock No.:
- 174-5365
- Mfr. Part No.:
- 3-100-403
- Brand:
- Schurter
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schurter | |
Mounting Type | Snap-In | |
Gender | Female | |
Current Rating | 10A | |
Body Orientation | Straight | |
Termination Method | PCB | |
Voltage Rating | 250 V | |
Select all | ||
---|---|---|
Brand Schurter | ||
Mounting Type Snap-In | ||
Gender Female | ||
Current Rating 10A | ||
Body Orientation Straight | ||
Termination Method PCB | ||
Voltage Rating 250 V | ||
- COO (Country of Origin):
- CH
Appliance Outlet F, Integrated Light Pipes, PCB terminals, Color Coding
Panel Mount: Snap-in version from front side
Connector, Pin temperature 70 °C
Pre-assembled light pipes
For PCB mounting
Integrated Light Pipes for status indication
Optional with one, two or without light pipes
Ideal appliance outlet for smart PDUs
Cord retention for V-Lock cordsets and other side latch mechansim
Other panel thickness
Other lenghts on terminals and light pipes
Quick connect or solder terminals (incl. different terminals on L, N, PE)
Connector, Pin temperature 70 °C
Pre-assembled light pipes
For PCB mounting
Integrated Light Pipes for status indication
Optional with one, two or without light pipes
Ideal appliance outlet for smart PDUs
Cord retention for V-Lock cordsets and other side latch mechansim
Other panel thickness
Other lenghts on terminals and light pipes
Quick connect or solder terminals (incl. different terminals on L, N, PE)
