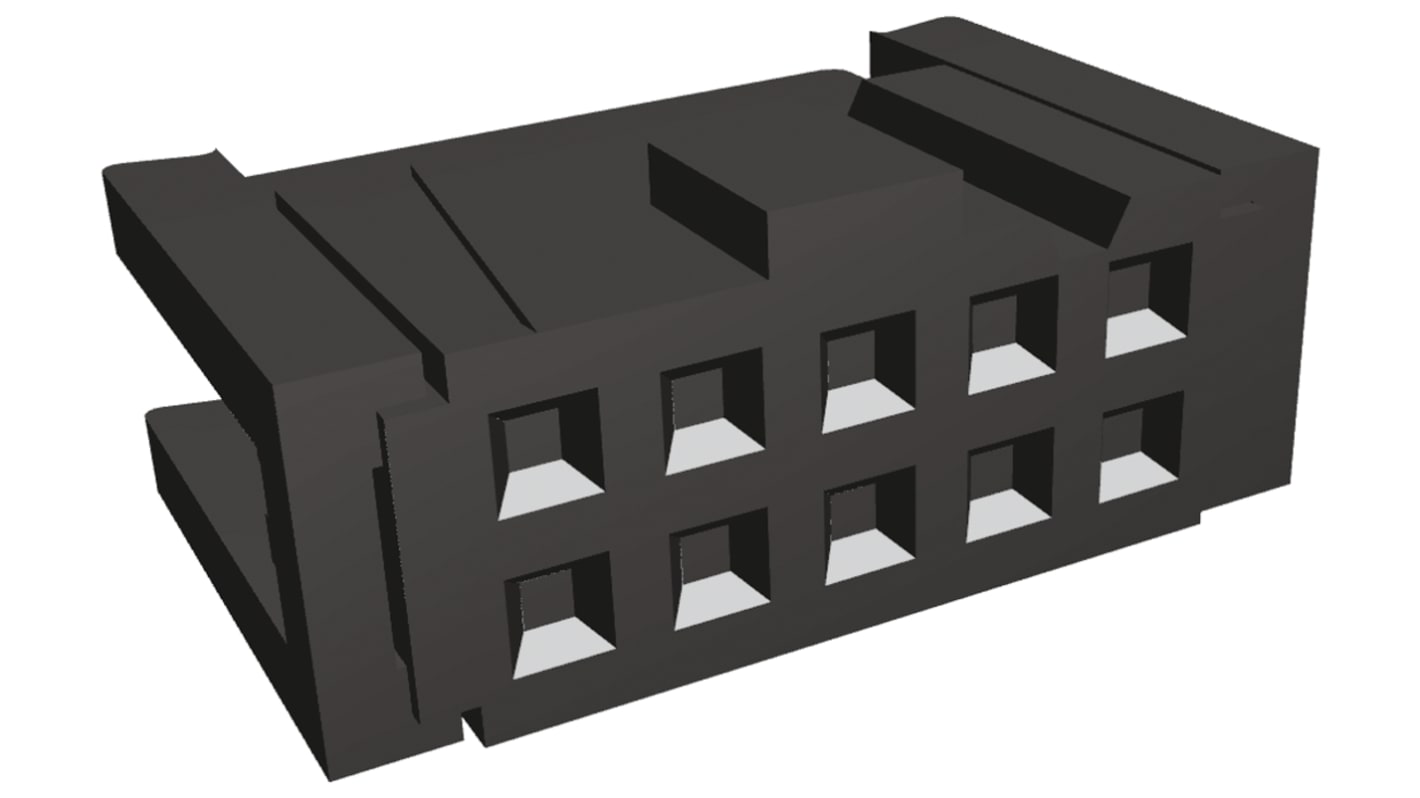

TE Connectivity 10-Way IDC Connector Socket for Cable Mount, 2-Row
- RS Stock No.:
- 820-7814
- Mfr. Part No.:
- 1-1658528-1
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 820-7814
- Mfr. Part No.:
- 1-1658528-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 10 | |
| Number of Rows | 2 | |
| Gender | Female | |
| Pitch | 2.54mm | |
| Mounting Type | Cable Mount | |
| Body Orientation | Straight | |
| Termination Method | IDC | |
| Current Rating | 1A | |
| Contact Plating | Gold | |
| Series | AMP-LATCH 636 | |
| Contact Material | Phosphor Bronze | |
| Housing Material | Thermoplastic | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 10 | ||
Number of Rows 2 | ||
Gender Female | ||
Pitch 2.54mm | ||
Mounting Type Cable Mount | ||
Body Orientation Straight | ||
Termination Method IDC | ||
Current Rating 1A | ||
Contact Plating Gold | ||
Series AMP-LATCH 636 | ||
Contact Material Phosphor Bronze | ||
Housing Material Thermoplastic | ||
- COO (Country of Origin):
- MX
TE Connectivity AMP-Latch 636 Series 2.54mm IDC Ribbon Cable Socket Connectors
636 series IDC ribbon cable socket connectors with 2.54 x 2.54 centers and military and centre polarization. Thes 636 series IDC ribbon cable connectors are made from UL 94V-0 rated glass filled thermoplastic and are for use with 26 to 28 AWG solid or stranded PVC insulated flat ribbon cable.
