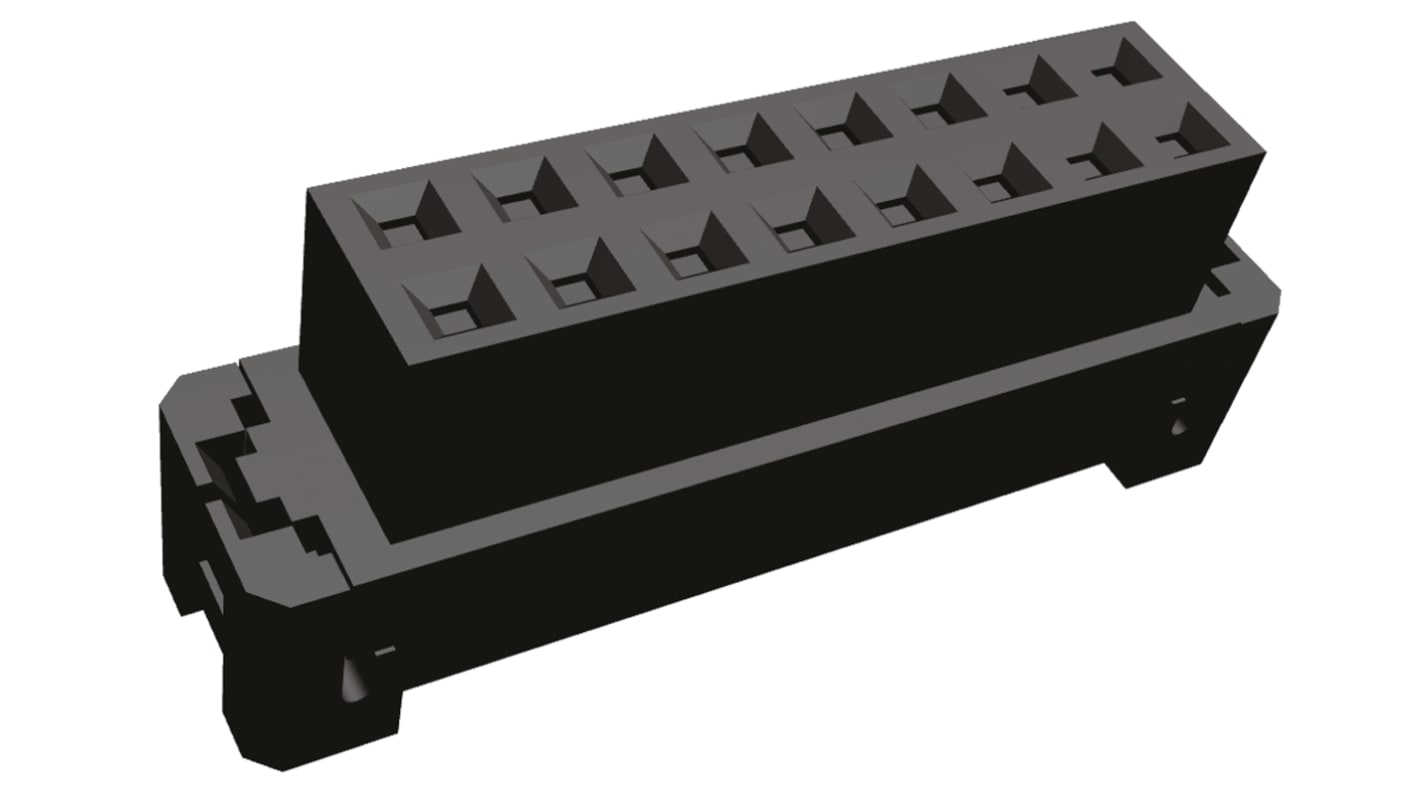

TE Connectivity 16-Way IDC Connector Socket for Panel Mount, 2-Row
- RS Stock No.:
- 820-7713
- Mfr. Part No.:
- 2-111626-5
- Brand:
- TE Connectivity
Available to back order for despatch 17/06/2024
Added
Price Each
£6.77
(exc. VAT)
£8.12
(inc. VAT)
| Units | Per unit |
| 1 + | £6.77 |
- RS Stock No.:
- 820-7713
- Mfr. Part No.:
- 2-111626-5
- Brand:
- TE Connectivity
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
TE Connectivity AMP-Latch 2.0mm IDC Receptacle Ribbon Cable Connectors
AMP-LATCH IDC receptacle style IDC ribbon cable connectors with a 2.0 x 2.0 mm mating grid for 1.0 mm pitch ribbon cable. These AMP-LATCH 2mm pitch IDC ribbon cable connectors have IDC contacts, top/bottom single beam contact orientation and UL 94V-0 thermoplastic components.
Ribbon cable receptacle connectors with part numbers X-111623-X have centre polarization
Ribbon cable receptacle connectors with part numbers X-111626-X are non-polarized
Ribbon cable receptacle connectors with part numbers X-111623-X have centre polarization
Ribbon cable receptacle connectors with part numbers X-111626-X are non-polarized
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 16 |
| Number of Rows | 2 |
| Gender | Female |
| Pitch | 2.0mm |
| Mounting Type | Panel Mount |
| Body Orientation | Straight |
| Termination Method | IDC |
| Current Rating | 500mA |
| Contact Plating | Gold |
| Series | AMP-LATCH |
| Minimum Operating Temperature | -65.0°C |
| Maximum Operating Temperature | 105.0°C |
| Voltage Rating | 125.0 V ac |
| Housing Material | PET |
| Contact Material | Phosphor Bronze |
