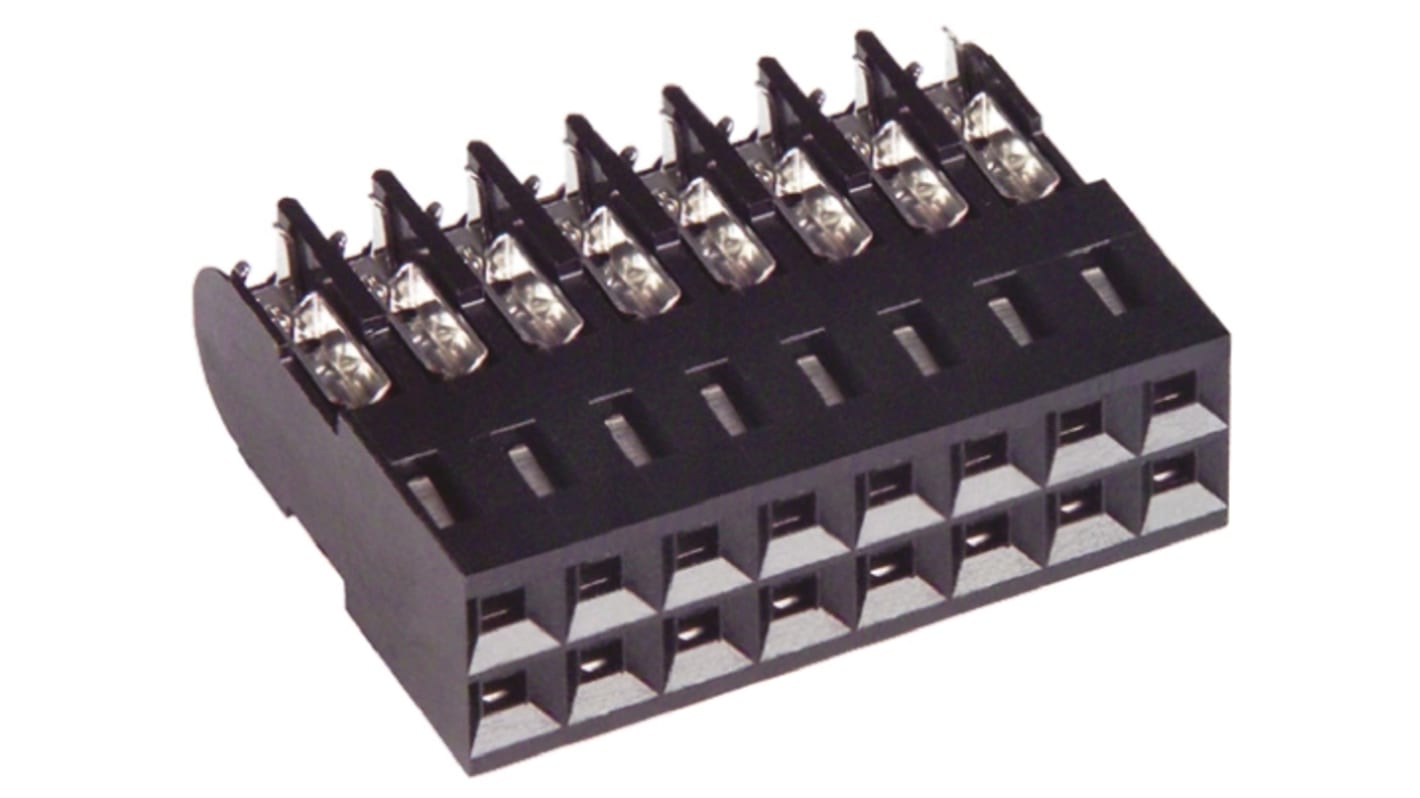

TE Connectivity 16-Way IDC Connector Socket for Cable Mount, 2-Row
- RS Stock No.:
- 782-8818
- Mfr. Part No.:
- 5-102398-6
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 782-8818
- Mfr. Part No.:
- 5-102398-6
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 16 | |
| Number of Rows | 2 | |
| Gender | Female | |
| Pitch | 2.54mm | |
| Mounting Type | Cable Mount | |
| Body Orientation | Straight | |
| Termination Method | IDC | |
| Current Rating | 3A | |
| Contact Plating | Gold over Nickel, Tin over Nickel | |
| Series | AMPMODU MT | |
| Minimum Operating Temperature | -65.0°C | |
| Maximum Operating Temperature | 105.0°C | |
| Voltage Rating | 600.0 V ac | |
| Housing Material | Glass Fibre Reinforced Thermoplastic | |
| Contact Material | Copper | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 16 | ||
Number of Rows 2 | ||
Gender Female | ||
Pitch 2.54mm | ||
Mounting Type Cable Mount | ||
Body Orientation Straight | ||
Termination Method IDC | ||
Current Rating 3A | ||
Contact Plating Gold over Nickel, Tin over Nickel | ||
Series AMPMODU MT | ||
Minimum Operating Temperature -65.0°C | ||
Maximum Operating Temperature 105.0°C | ||
Voltage Rating 600.0 V ac | ||
Housing Material Glass Fibre Reinforced Thermoplastic | ||
Contact Material Copper | ||
- COO (Country of Origin):
- MX
TE Connectivity MT Receptacle Assemblies
This range of TE Connectivity MT Receptacle Assemblies have mass termination IDC contacts. The mating interface of the MT Receptacle Assembly contacts are the same as the AMPMODU crimp, snap-in contact with dual cantilever beams, overstress protection and enclosed box design.
2.54mm TE Connectivity MT Dual Row Range
The AMPMODU MT Interconnection System uses mass termination technology in dual row receptacle assemblies.
