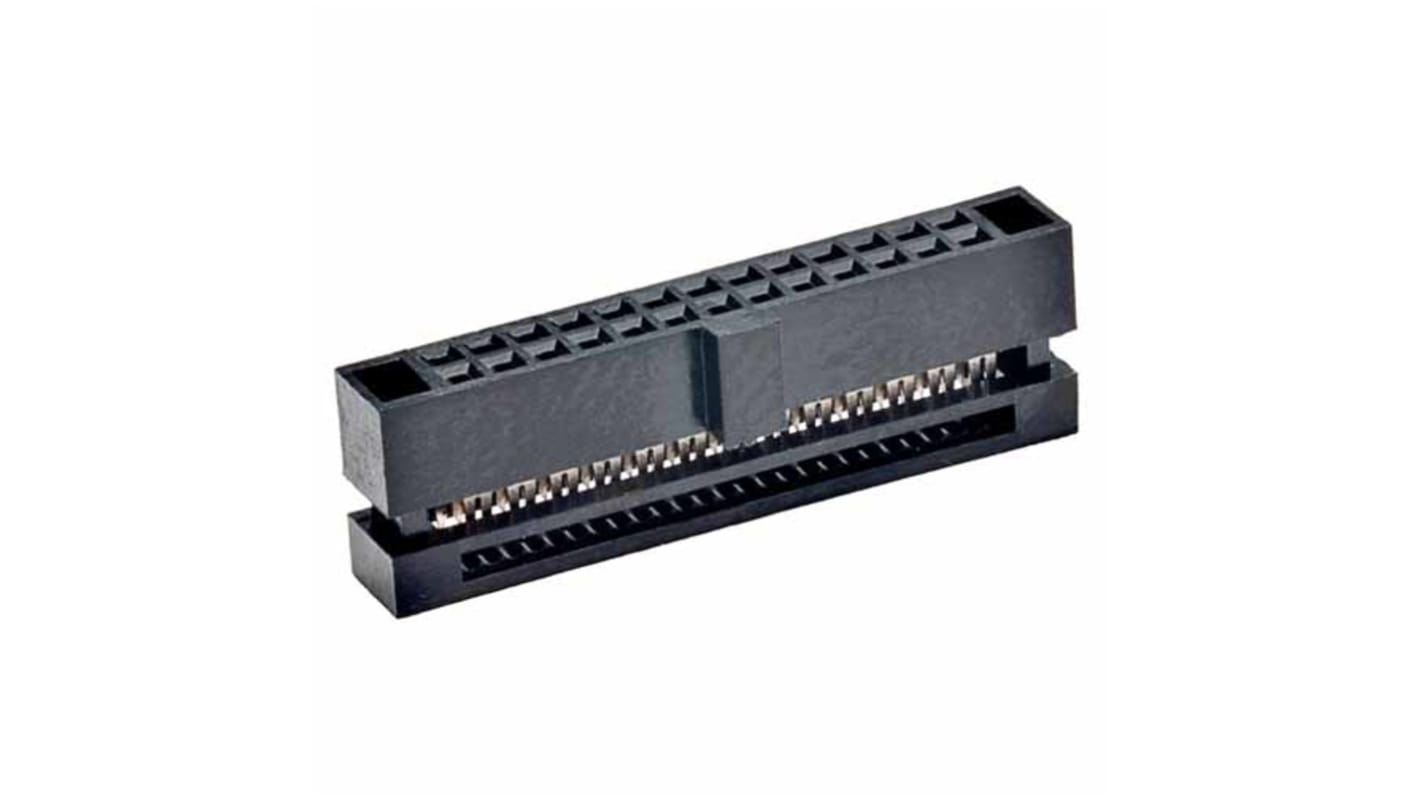

HARWIN 26-Way IDC Connector Female for Cable, 2 Row
- RS Stock No.:
- 247-9134
- Mfr. Part No.:
- M50-3301342
- Brand:
- HARWIN
Subtotal (1 unit)*
£3.49
(exc. VAT)
£4.19
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 58 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3.49 |
*price indicative
- RS Stock No.:
- 247-9134
- Mfr. Part No.:
- M50-3301342
- Brand:
- HARWIN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARWIN | |
| Number of Contacts | 26 | |
| Product Type | IDC Connector | |
| Number of Rows | 2 | |
| Current | 1A | |
| Pitch | 1.27mm | |
| Connector Gender | Female | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Cable | |
| Orientation | Angled | |
| Termination Type | Solder | |
| Series | M50-330 | |
| Minimum Operating Temperature | -40°C | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Contact Material | Phosphor Bronze | |
| Housing Material | Polybutylene Terephthalate | |
| Select all | ||
|---|---|---|
Brand HARWIN | ||
Number of Contacts 26 | ||
Product Type IDC Connector | ||
Number of Rows 2 | ||
Current 1A | ||
Pitch 1.27mm | ||
Connector Gender Female | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Cable | ||
Orientation Angled | ||
Termination Type Solder | ||
Series M50-330 | ||
Minimum Operating Temperature -40°C | ||
Contact Gender Female | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Contact Material Phosphor Bronze | ||
Housing Material Polybutylene Terephthalate | ||
RoHS Status: Exempt
The HARWIN PCB connectors comes with 13+13 positions and vertical orientation. These connectors are spaced 1.27mm between rows and based on 0.40mm square/round pins.
Contact gender female/socket/jack
Connector orientation vertical
Connection type surface mount
Mating pin size 0.4mm square
