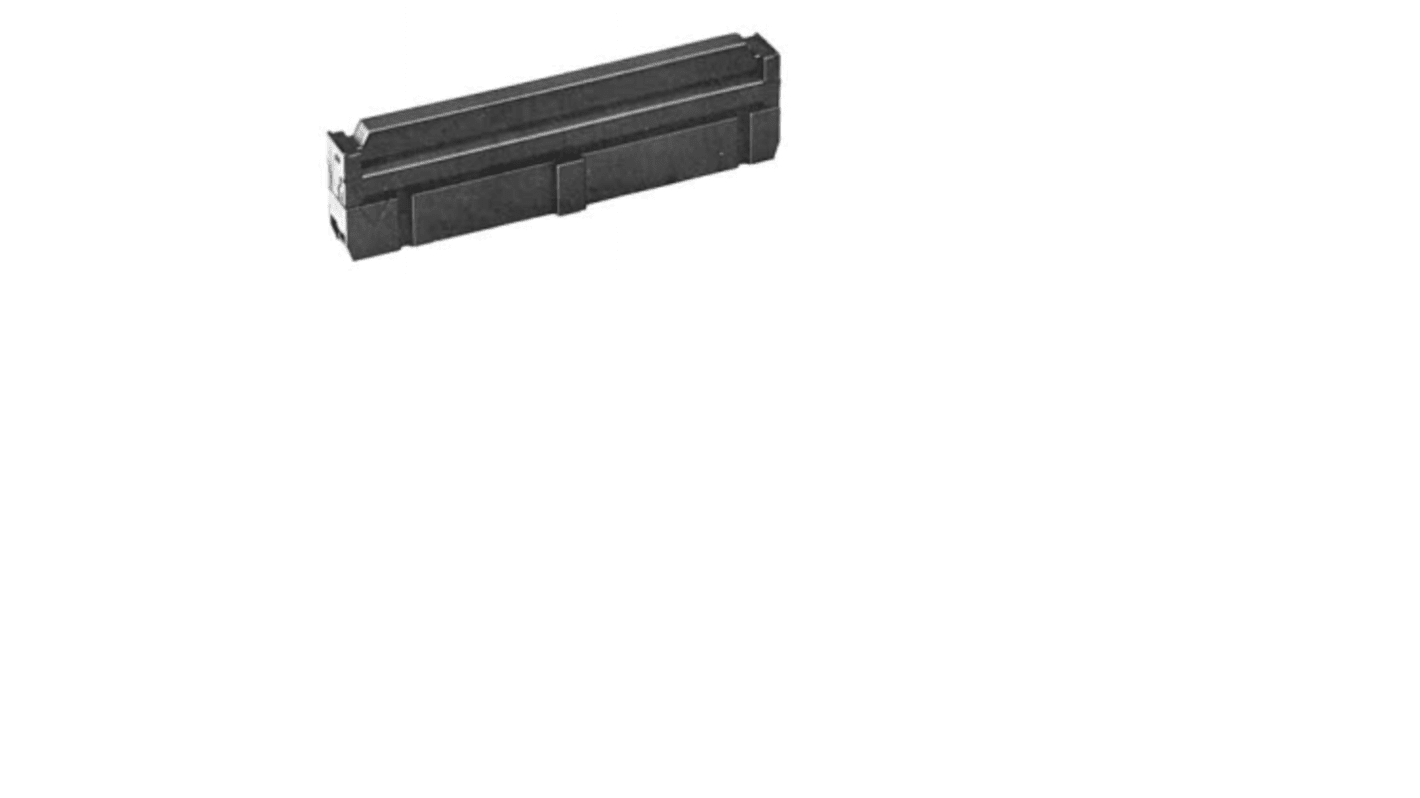

Hirose 20-Way IDC Connector Female for Cable, 2 Row
- RS Stock No.:
- 231-3812
- Mfr. Part No.:
- HIF3BA-20D-2.54R(63)
- Brand:
- Hirose
Bulk discount available
Subtotal (1 pack of 5 units)*
£18.14
(exc. VAT)
£21.77
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- 95 left, ready to ship
- Plus 10 left, ready to ship from another location
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £3.628 | £18.14 |
| 25 - 45 | £3.344 | £16.72 |
| 50 + | £2.824 | £14.12 |
*price indicative
- RS Stock No.:
- 231-3812
- Mfr. Part No.:
- HIF3BA-20D-2.54R(63)
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Product Type | IDC Connector | |
| Number of Contacts | 20 | |
| Number of Rows | 2 | |
| Current | 1A | |
| Pitch | 2.54mm | |
| Mount Type | Cable | |
| Voltage | 200V | |
| Connector Gender | Female | |
| Shrouded/Unshrouded | Shrouded | |
| Orientation | Straight | |
| Contact Plating | Gold | |
| Termination Type | IDC | |
| Series | HIF3B | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 85°C | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Contact Material | Beryllium Copper Alloy | |
| Housing Material | Polybutylene Terephthalate | |
| Select all | ||
|---|---|---|
Brand Hirose | ||
Product Type IDC Connector | ||
Number of Contacts 20 | ||
Number of Rows 2 | ||
Current 1A | ||
Pitch 2.54mm | ||
Mount Type Cable | ||
Voltage 200V | ||
Connector Gender Female | ||
Shrouded/Unshrouded Shrouded | ||
Orientation Straight | ||
Contact Plating Gold | ||
Termination Type IDC | ||
Series HIF3B | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 85°C | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Contact Material Beryllium Copper Alloy | ||
Housing Material Polybutylene Terephthalate | ||
The Hirose Connector Socket has 20POS IDC 28AWG and gold plated.
Product Compliant with MIL Standard
UL Approval Product
Mechanism to Prevent Mis-insertion
