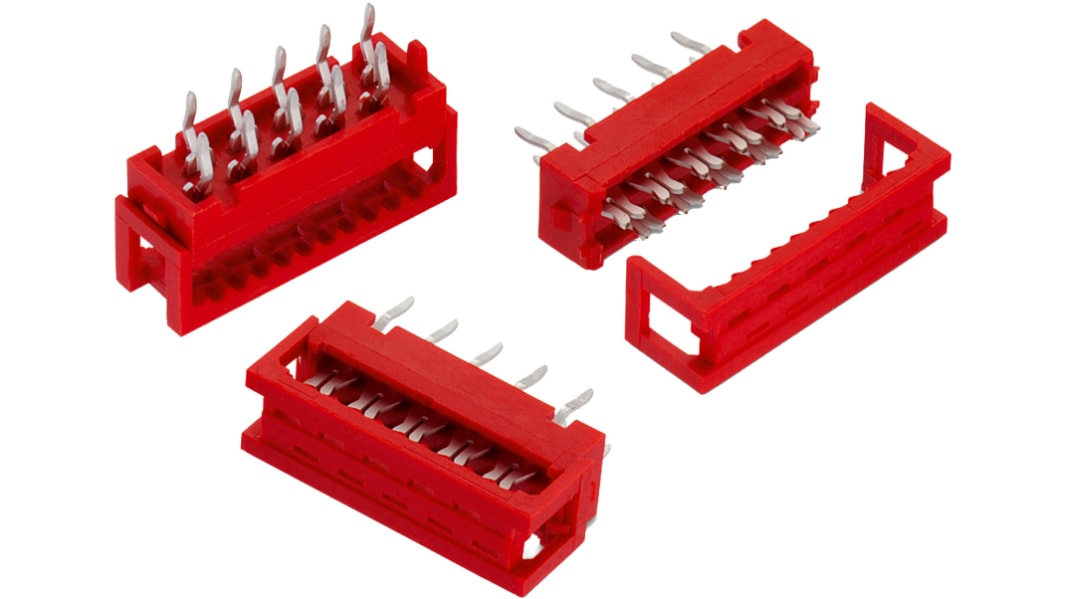

Wurth Elektronik 24-Way IDC Connector Male for Cable, 2 Row
- RS Stock No.:
- 211-3600
- Mfr. Part No.:
- 690207102472
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 tube of 17 units)*
£27.54
(exc. VAT)
£32.98
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 17 - 68 | £1.62 | £27.54 |
| 85 - 153 | £1.506 | £25.60 |
| 170 - 323 | £1.409 | £23.95 |
| 340 - 493 | £1.322 | £22.47 |
| 510 + | £1.246 | £21.18 |
*price indicative
- RS Stock No.:
- 211-3600
- Mfr. Part No.:
- 690207102472
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Number of Contacts | 24 | |
| Product Type | IDC Connector | |
| Number of Rows | 2 | |
| Current | 1A | |
| Pitch | 2.54mm | |
| Voltage | 250V | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector Gender | Male | |
| Mount Type | Cable | |
| Orientation | Straight | |
| Contact Plating | Matt Tin over Nickel | |
| Series | WR-MM | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Housing Material | Polybutylene Terephthalate | |
| Contact Material | Phosphor Bronze | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Number of Contacts 24 | ||
Product Type IDC Connector | ||
Number of Rows 2 | ||
Current 1A | ||
Pitch 2.54mm | ||
Voltage 250V | ||
Shrouded/Unshrouded Unshrouded | ||
Connector Gender Male | ||
Mount Type Cable | ||
Orientation Straight | ||
Contact Plating Matt Tin over Nickel | ||
Series WR-MM | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Housing Material Polybutylene Terephthalate | ||
Contact Material Phosphor Bronze | ||
The Wurth Elektronik WR-MM transition connector has stamped contact. The contacts are made up of phosphor bronze.
It has matte tin over nickel contact plating
