Samtec 10-Way PCB Header Plug for Surface Mount, 2-Row
- RS Stock No.:
- 196-9789
- Mfr. Part No.:
- EHT-105-01-S-D-SM-P-TR
- Brand:
- Samtec
Available to back order for despatch 20/05/2024
Added
Price Each (On a Reel of 175)
£5.845
(exc. VAT)
£7.014
(inc. VAT)
| Units | Per unit | Per Reel* |
| 175 - 700 | £5.845 | £1,022.875 |
| 875 + | £5.682 | £994.35 |
| *price indicative | ||
- RS Stock No.:
- 196-9789
- Mfr. Part No.:
- EHT-105-01-S-D-SM-P-TR
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details

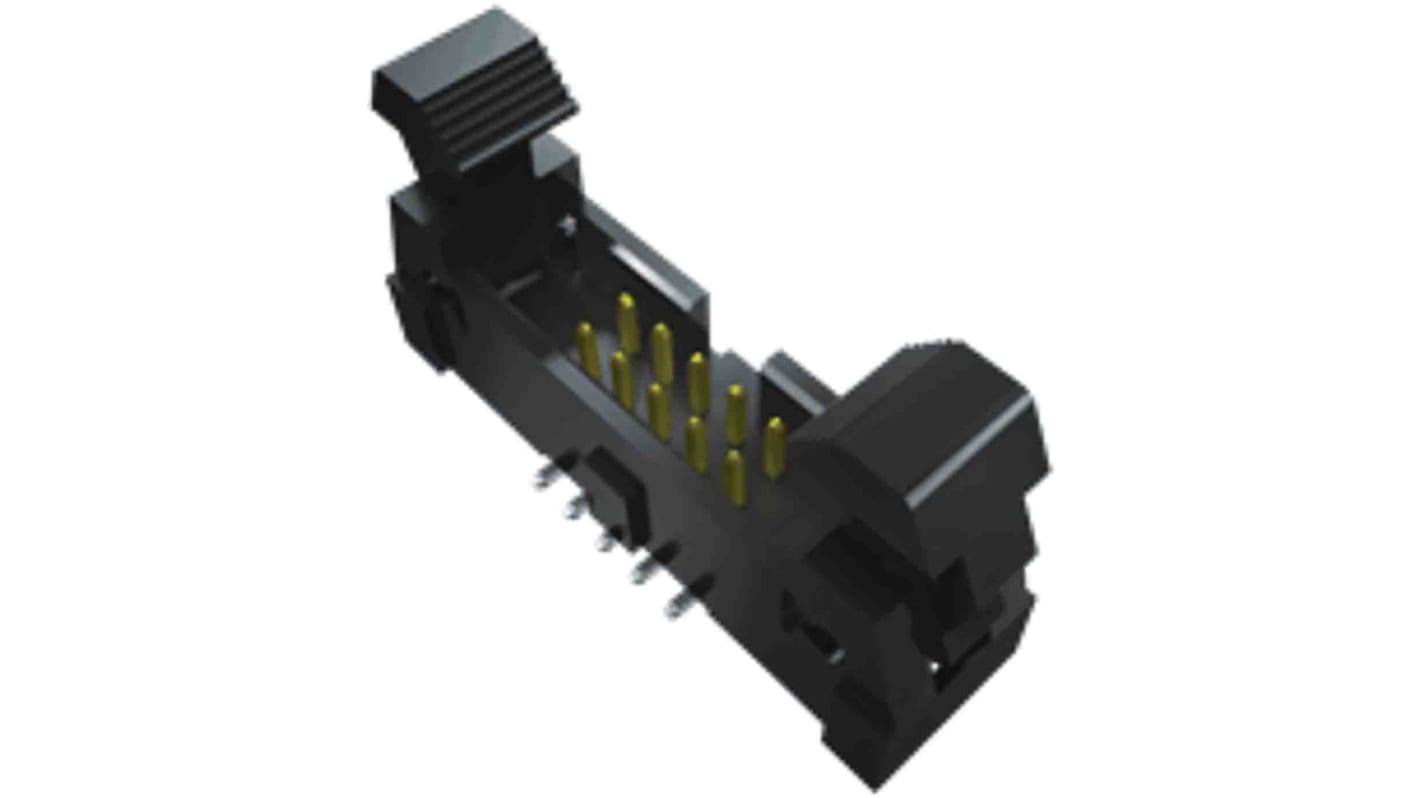

The Samtec EHT-105-01-S-D-SM-P-TR is a shrouded IDC ejector header. This header has polarization notch and it also has optional caps to lock cable. Its terminal is made up of phosphor bronze.
Insulator material: black liquid crystal polymer
Operating temperature range:-55°C to +125°C
SMT lead coplanarity:0.10mm max
Operating temperature range:-55°C to +125°C
SMT lead coplanarity:0.10mm max
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 10 |
| Number of Rows | 2 |
| Gender | Male |
| Pitch | 2mm |
| Mounting Type | Surface Mount |
