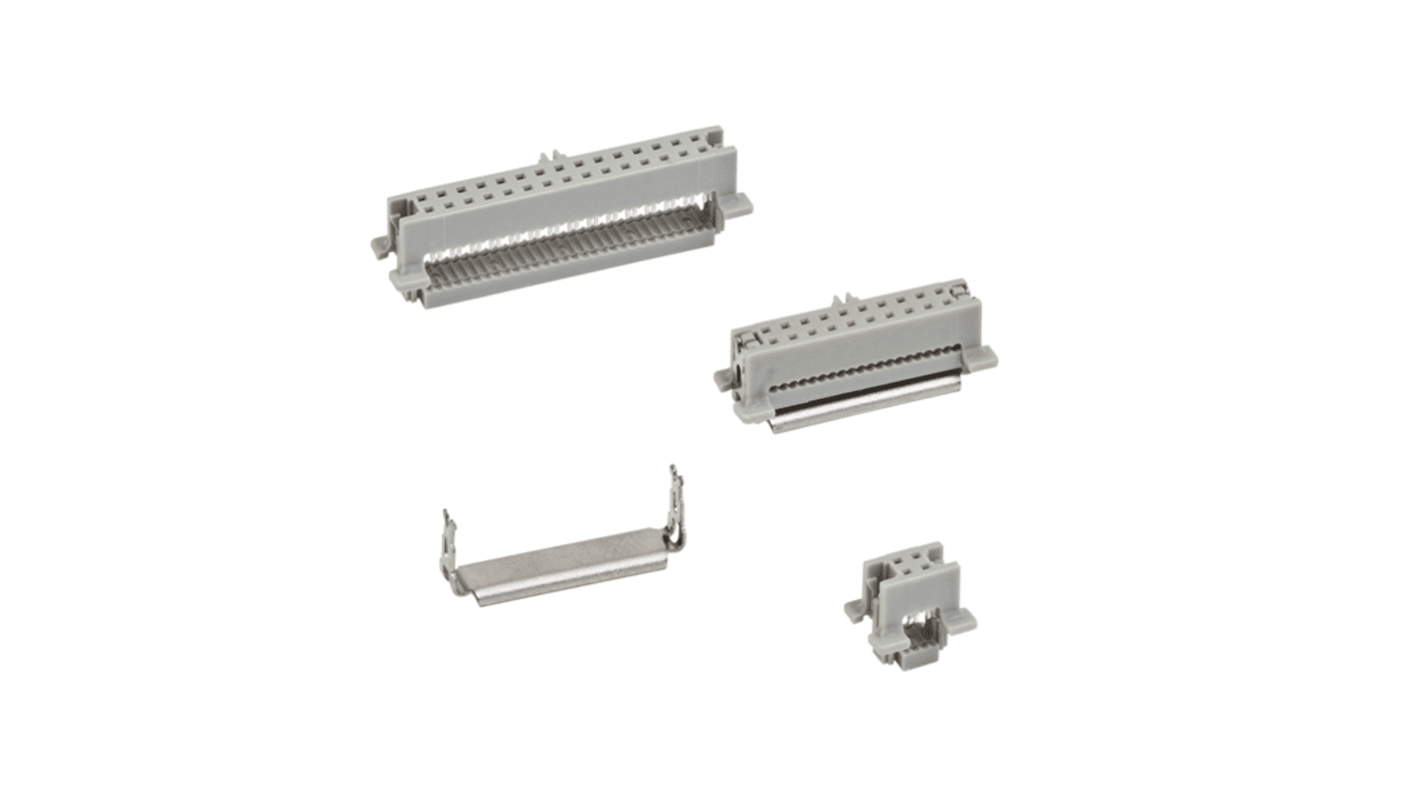

3M 20-Way IDC Connector Female for Cable, 2 Row
- RS Stock No.:
- 455-950
- Mfr. Part No.:
- 45120-010030
- Brand:
- 3M
Subtotal (1 pack of 216 units)*
£878.75
(exc. VAT)
£1,054.50
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £878.75 | £4.068 |
*price indicative
- RS Stock No.:
- 455-950
- Mfr. Part No.:
- 45120-010030
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Number of Contacts | 20 | |
| Product Type | IDC Connector | |
| Number of Rows | 2 | |
| Current | 1.5A | |
| Pitch | 1.27mm | |
| Connector Gender | Female | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Cable | |
| Voltage | 125V | |
| Orientation | Right Angle | |
| Contact Plating | Gold, Nickel | |
| Minimum Operating Temperature | 65°C | |
| Series | 451 | |
| Termination Type | IDC | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 130°C | |
| Standards/Approvals | EIA-364-070, Underwriters Laboratories (UL):File No. E68080, cUL | |
| Contact Material | Beryllium Copper Alloy | |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate, Glass Filled LCP | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Number of Contacts 20 | ||
Product Type IDC Connector | ||
Number of Rows 2 | ||
Current 1.5A | ||
Pitch 1.27mm | ||
Connector Gender Female | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Cable | ||
Voltage 125V | ||
Orientation Right Angle | ||
Contact Plating Gold, Nickel | ||
Minimum Operating Temperature 65°C | ||
Series 451 | ||
Termination Type IDC | ||
Contact Gender Female | ||
Maximum Operating Temperature 130°C | ||
Standards/Approvals EIA-364-070, Underwriters Laboratories (UL):File No. E68080, cUL | ||
Contact Material Beryllium Copper Alloy | ||
Housing Material Fibreglass Reinforced Polybutylene Terephthalate, Glass Filled LCP | ||
RoHS Status: Exempt
- COO (Country of Origin):
- VN
The 3M Connector header is a through-hole type with a right-angle design, featuring 10 positions and a pitch of 2.54mm. The contact length for the post is 0.112 inches, and the contact finish thickness for mating is 30.0 micro inches.
Cable Termination IDC
Feed Through and Polarizing Key
Contact Finish Gold
