3M 16-Way Connector Male for Cable, 2 Row
- RS Stock No.:
- 455-868
- Mfr. Part No.:
- 7816-0000PR
- Brand:
- 3M
Subtotal (100 units, in packs of 100)*
£241.61
(exc. VAT)
£289.93
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 30 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £241.61 | £2.416 |
*price indicative
- RS Stock No.:
- 455-868
- Mfr. Part No.:
- 7816-0000PR
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Product Type | Connector | |
| Number of Contacts | 16 | |
| Number of Rows | 2 | |
| Current | 1A | |
| Pitch | 2.54mm | |
| Mount Type | Cable | |
| Connector Gender | Male | |
| Voltage | 1000V | |
| Contact Plating | Gold Flash | |
| Minimum Operating Temperature | -55°C | |
| Series | 78XX | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Male | |
| Standards/Approvals | UL 94V-0, RoHS | |
| Contact Material | Beryllium Copper Alloy | |
| Housing Material | Glass Filled Polyester | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Product Type Connector | ||
Number of Contacts 16 | ||
Number of Rows 2 | ||
Current 1A | ||
Pitch 2.54mm | ||
Mount Type Cable | ||
Connector Gender Male | ||
Voltage 1000V | ||
Contact Plating Gold Flash | ||
Minimum Operating Temperature -55°C | ||
Series 78XX | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Male | ||
Standards/Approvals UL 94V-0, RoHS | ||
Contact Material Beryllium Copper Alloy | ||
Housing Material Glass Filled Polyester | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP

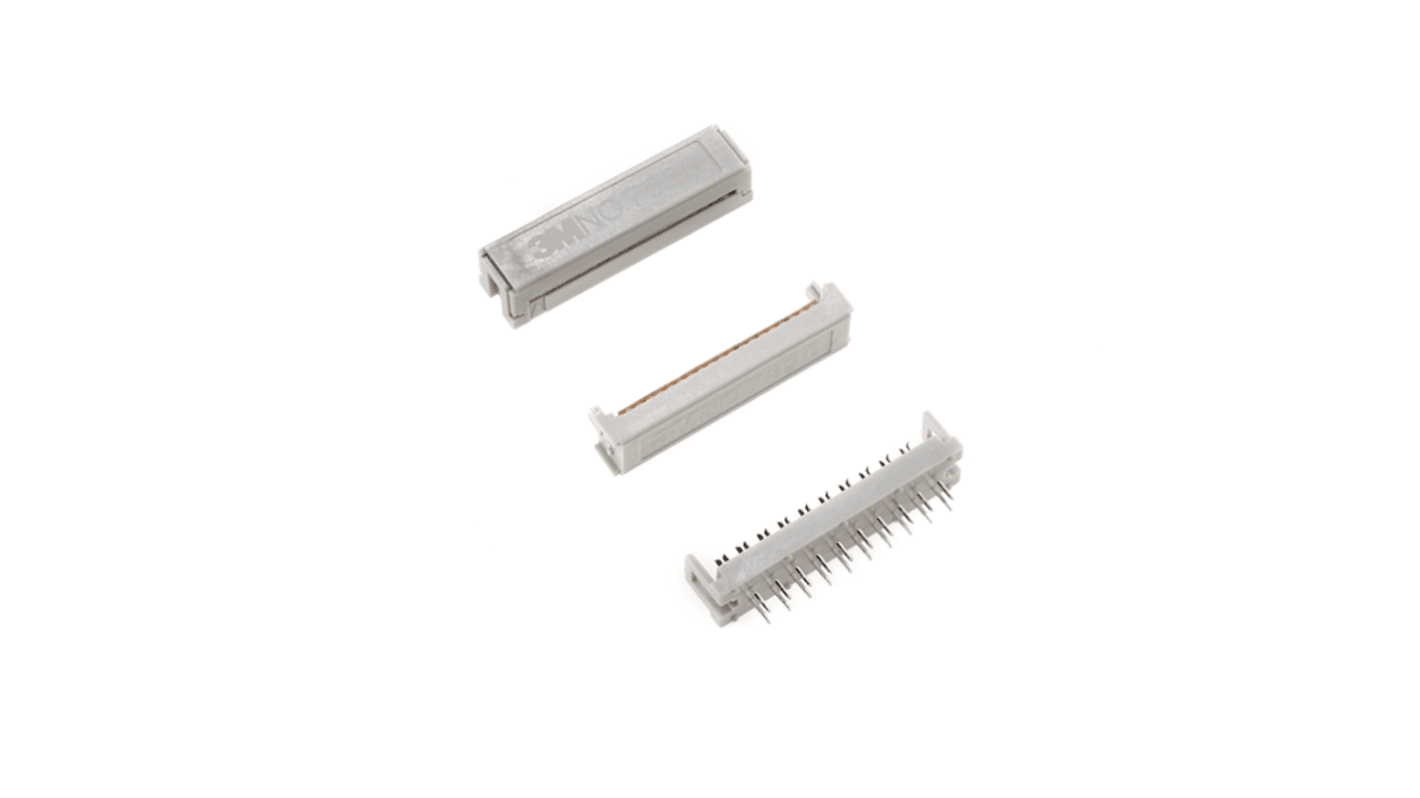

The 3M 16 Position Ribbon Cable with DIP Header Connector in Gray, IDC Termination, compatible with 26 AWG stranded, 28 AWG solid or stranded, and 30 AWG solid wires, designed for through-hole mounting.
Features Feed Through
Contact Finish Gold
Contact Finish Thickness Flash
