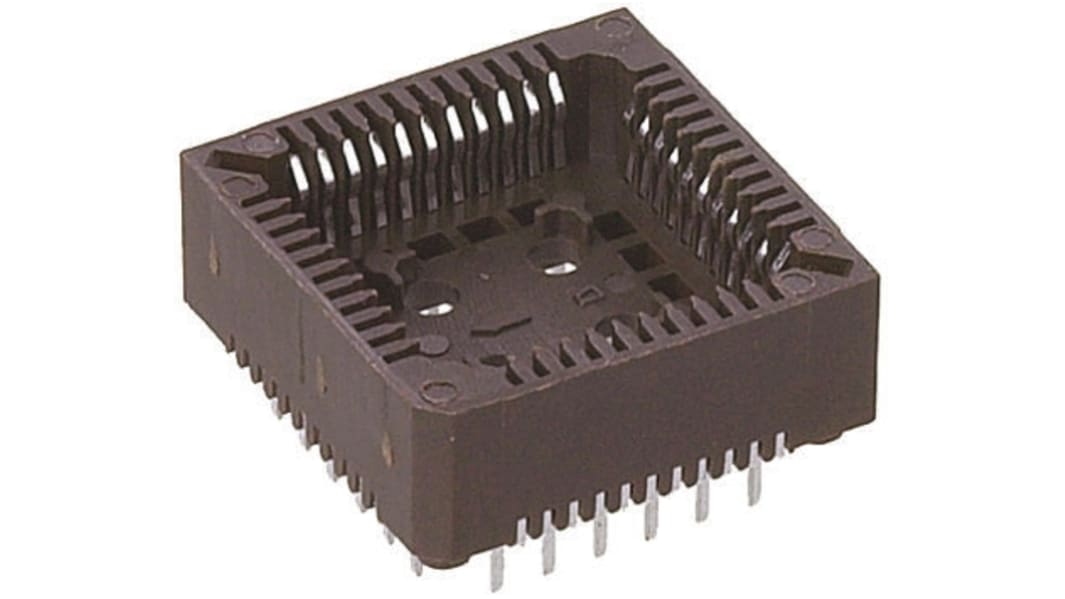

Preci-Dip 1.27mm Pitch 52 Way DIP PLCC IC Socket
- RS Stock No.:
- 701-9408
- Mfr. Part No.:
- 540-88-052-24-008
- Brand:
- Preci-Dip
Bulk discount available
Subtotal (1 pack of 5 units)*
£11.07
(exc. VAT)
£13.285
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 415 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 120 | £2.214 | £11.07 |
| 125 - 370 | £1.994 | £9.97 |
| 375 - 995 | £1.768 | £8.84 |
| 1000 - 1995 | £1.552 | £7.76 |
| 2000 + | £1.436 | £7.18 |
*price indicative
- RS Stock No.:
- 701-9408
- Mfr. Part No.:
- 540-88-052-24-008
- Brand:
- Preci-Dip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Preci-Dip | |
| Package Type | DIP | |
| IC Socket Type | PLCC Socket | |
| Gender | Female | |
| Number of Contacts | 52 | |
| Pitch | 1.27mm | |
| Body Orientation | Straight | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Tin | |
| Current Rating | 1.0A | |
| Voltage Rating | 100.0 V, 150.0 V | |
| Termination Method | Solder | |
| Housing Material | Glass Fibre Reinforced PPS | |
Select all | ||
|---|---|---|
Brand Preci-Dip | ||
Package Type DIP | ||
IC Socket Type PLCC Socket | ||
Gender Female | ||
Number of Contacts 52 | ||
Pitch 1.27mm | ||
Body Orientation Straight | ||
Contact Material Phosphor Bronze | ||
Contact Plating Tin | ||
Current Rating 1.0A | ||
Voltage Rating 100.0 V, 150.0 V | ||
Termination Method Solder | ||
Housing Material Glass Fibre Reinforced PPS | ||
- COO (Country of Origin):
- CH
Preci-dip 540 Series PLCC Sockets
These Swiss Preci-dip PLCC 540 Series sockets with SMT terminations to the PCB come with square sizes for IC packages according to JEDEC MO-047 and rectangular size (32 way) according to JEDEC MO-52, low profile.
Tape & Reel packs have Manufacturers Part Numbers ending in TR
Contact pressure minimum 1.5 N per contact
Mechanical life is a minimum of 50 cycles
Capacitance maximum 2 pF
Coplanarity SMD terminations maximum 0.1 mm
Contact pressure minimum 1.5 N per contact
Mechanical life is a minimum of 50 cycles
Capacitance maximum 2 pF
Coplanarity SMD terminations maximum 0.1 mm
Standards
UL 94V-0
